Bentone BG650 - Warning; Safety Directions; Acceptance Inspection; Preparations for Installation

7
172 155 11 04-01

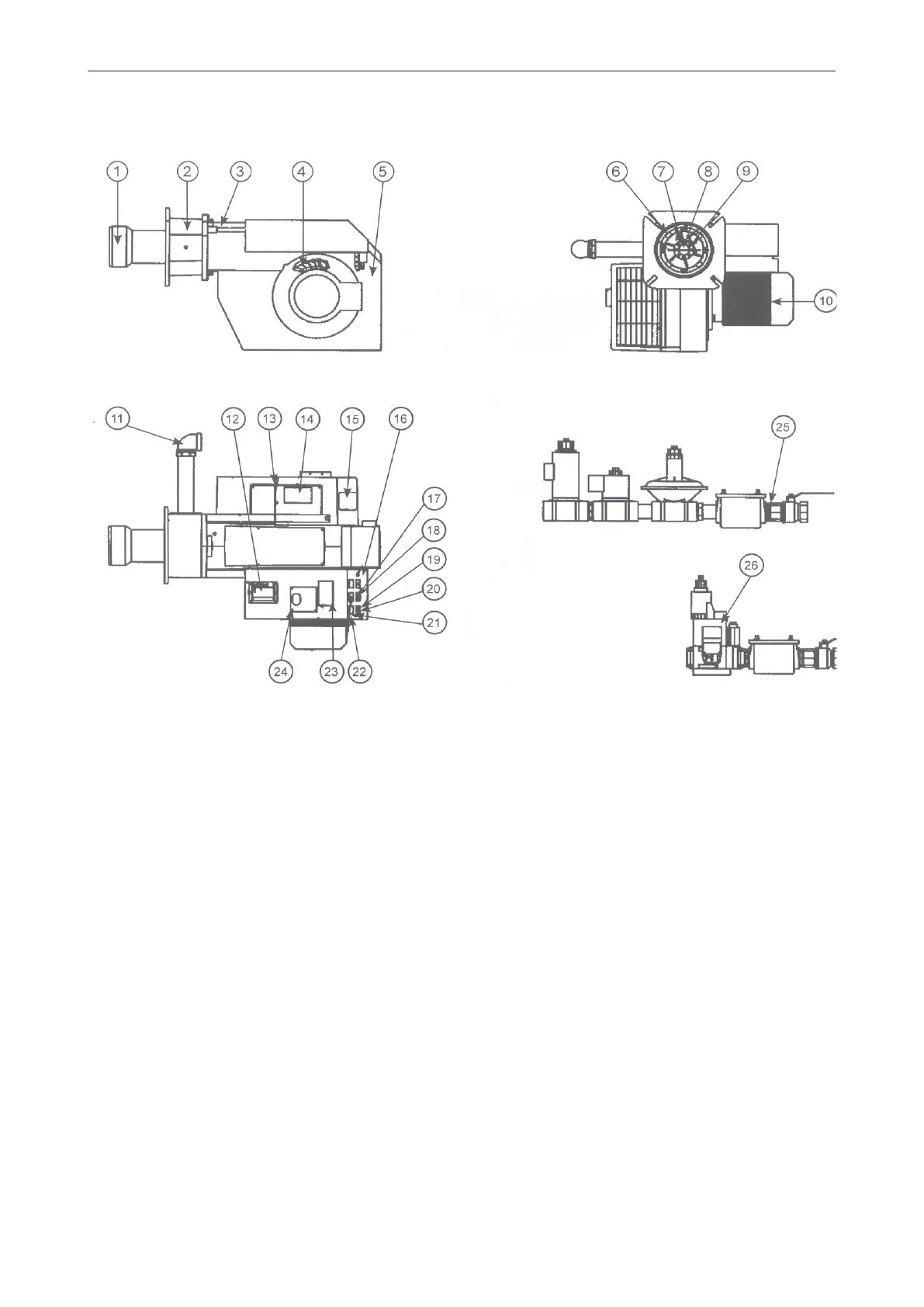

Components
DESCRIPTION
2-Stage
1. Flame cone
2. Connection flange
3. Guide bar
4. Fan wheel
5. Fan house
6. Shrouded disc
7. Ignition electrode
8. Nozzle
9. Ionisation electrode
10. Motor
11. Connection gas fittings
12. Ignition transformer
13. Air damper
14. Air damper motor
15. Air pressure switch
16 Fuse holder
17. Indicating lamp Stage 2
18. Switch I-II
19. Indicating lamp Stage I
20. Switch 0-l
21. Time meter, stage 1
22. Time meter, stage 2
23. Contactor with thermal
overload protection
24. Control box
25. Gas train
26. MultiBloc
