Bentone BG650 - Operation and Assembly Instructions; DMV-DLE Rapid Stroke Adjustment; Replacing Hydraulic Brake Unit; Replacing Solenoid DMV-D;DLE

41
172 505 27 09-01
Type Order p
max.
Rp / DN Dimensions Weight
Number [mbar] [mm] [kg]
abcdefgh
FRS 507 070 391 500 Rp 3/4 100 130 28 165 G1/4 G1/4 G1/8 245 1,00
FRS 510 070 409 500 Rp 1 110 145 33 190 G1/4 G1/4 G1/8 310 1,20
FRS 515 058 446 500 Rp 1 1/2 150 195 40 250 G1/2 G1/4 G1/4 365 2,50
FRS 520 058 628 500 Rp 2 170 250 47 310 G1/2 G1/4 G1/4 450 3,50
FRS 525 083 303 500 Rp 2 1/2 230 285 60 365 G1/2 G1/4 G1/4 550 6,00
FRS 5065 058 792 500 DN 65 290 285 95 405 G1/2 G1/4 G1/4 590 7,50
FRS 5080 079 681 500 DN 80 310 285 95 405 G1/2 G1/4 G1/4 590 10,00

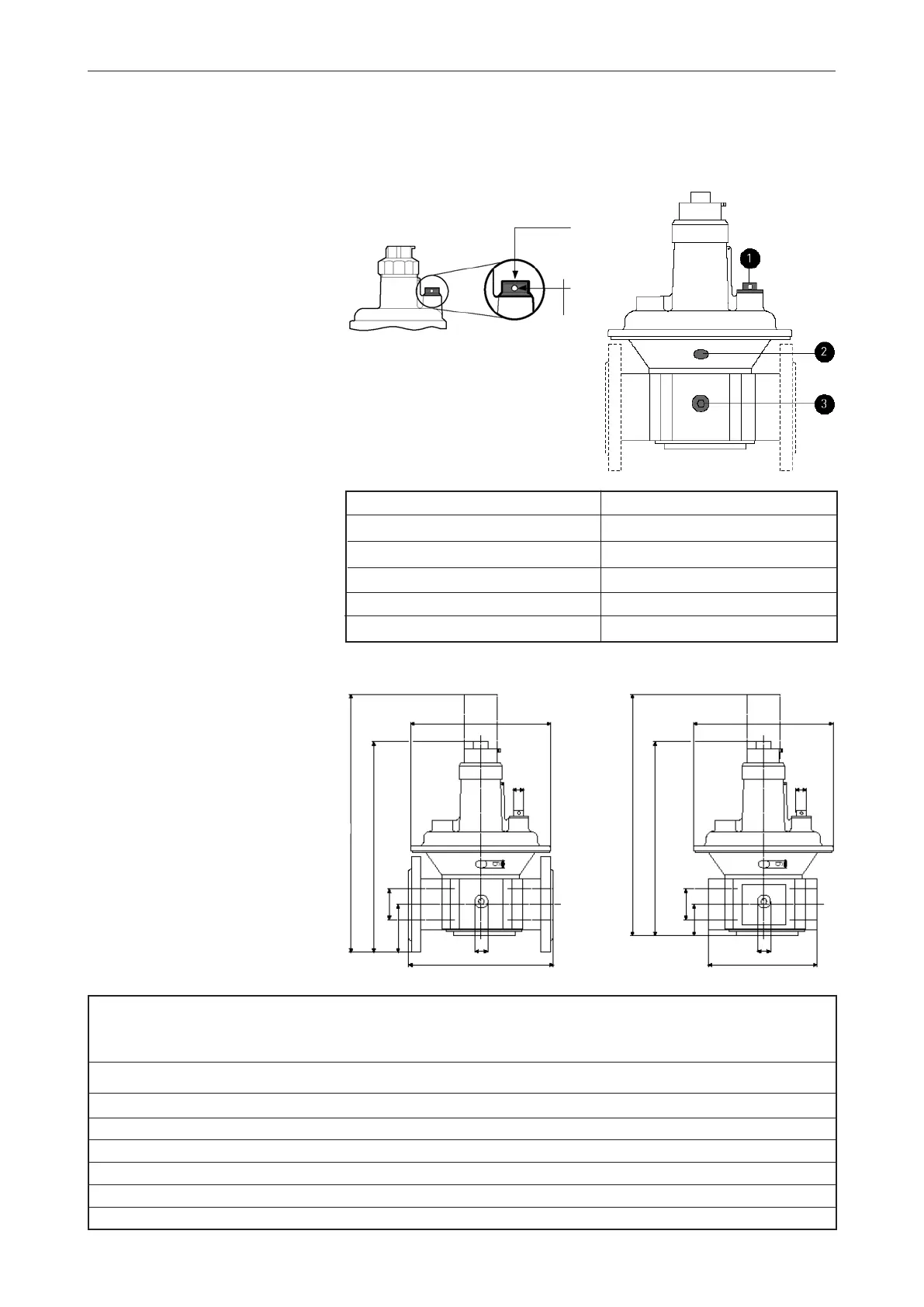

OPERATION AND ASSEMBLY INSTRUCTIONS
Gas pressure regulator Type FRS
Nominal diameters
Rp 3/8 - Rp 2 1/2
DN 40 - DN 150
1(2)
Never close vent nozzle!
Dimensions [ mm]
2. Pressure taps
1. Vent plug
2. Connection for external pulse
G 1/4 screw plug ISO 228, on
both sides, optional.
3. G 1/4 screw plug ISO 228, in
inlet pressure range, on both sides
1.
Max. operating pressure 500 mbar
Pressure regulator Class A
Ambient temperature -15 °C … +70 °C
Inlet pressure range 5 - 500 mbar
Family 1 + 2 + 3
Outlet pressure range 2,5 - 200 mbar
2.
Vent nozzle
Vent plug
e
c
f
h
DN
a
f
e
d
b
b
h
d
DN
c
a
