Bentone

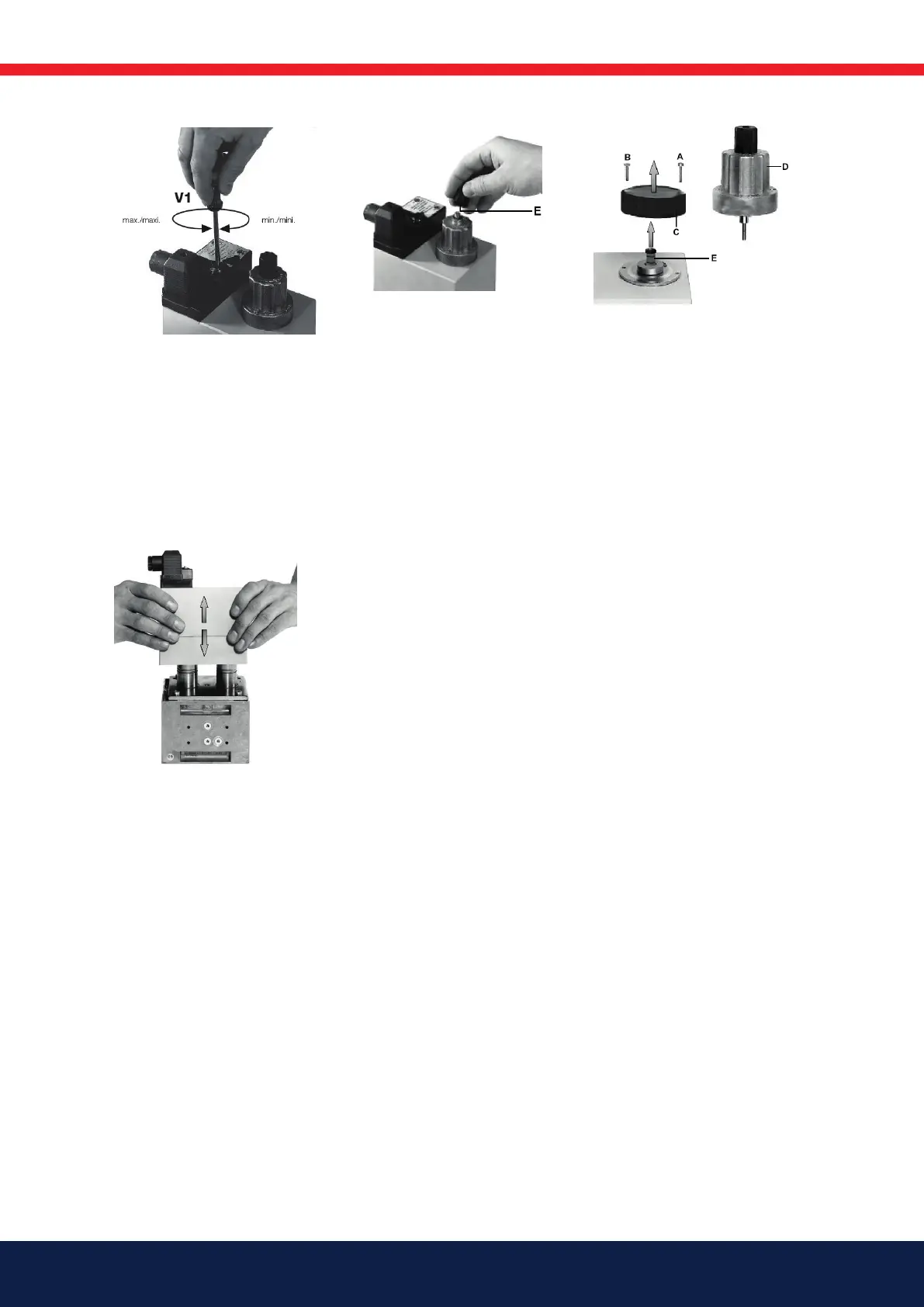

Main ow setting only possible at
V1! Set main volume on open valve.
Set valve V1 during operation.Check
setting values continuously. Smallest
setting volume ow:
Rapid stroke adjustment V start
Factory setting DMV-DLE: Rapid
stroke not adjusted
1. Unscrew the adjustment cap
E from the hydraulic brake.
2. Turn the adjustment cap and
use as a tool.
3. Turn a-clockwise = increase
rapid stroke (+).
Replacing hydraulic brake unit or
adjustment plate
1. Switch off ring system.
2. Remove locking varnish
from countersunk screw A.
3. Unscrew countersunkscrew
A.
4. Unscrew socket headscrew
B.
5. Raise adjustment plate C or
hy-draulic brake D.
6. Remove sealing plug E
7. Exchange adjustment plate
C or hydraulic brake D
8. Screw in countersunk and
socket head screw. Only
tighten socket head screw so
that hydraulic brake can just
be turned.
9. Coat countersunk screw A
with locking varnish.
10. Leakage test: Pressure tap
at sealing plug 2:
DMV 507-520/11 Pressure
tap at sealing plug 3: DMV
525/11 p max. = 500 mbar.
11. Perform functional test.
12. Switch on ring system.
Replacing the solenoid versions
with hydraulic brake
1. Remove hydraulic brake or
adjusting plate as described
on page 6: ”Replacing the
hydraulic brake or adjusting
disk”, steps 1 - 5.
2. Replace solenoid
Important: Make sure that
the solenoid no. and voltage
are correct!
3. Remount hydraulic brake or
adjust-ing plate as described
on page 6. ”Replacing the
hydraulic brake or adjusting
plate”, steps 7 -11.
