Bentone MVD 210 - Setting for Nozzle Assembly and Air Damper

9 Bentone BFG 1
!
Scale value valid at
0 mbar in furnace
pressure.
0,0
2,0
4,0
6,0
8,0
10,0
12,0
14,0
16,0
18,0
20,0
22,0
25 35 45 55 65 75 85 95
160303-630
kW
Scale
Burner output

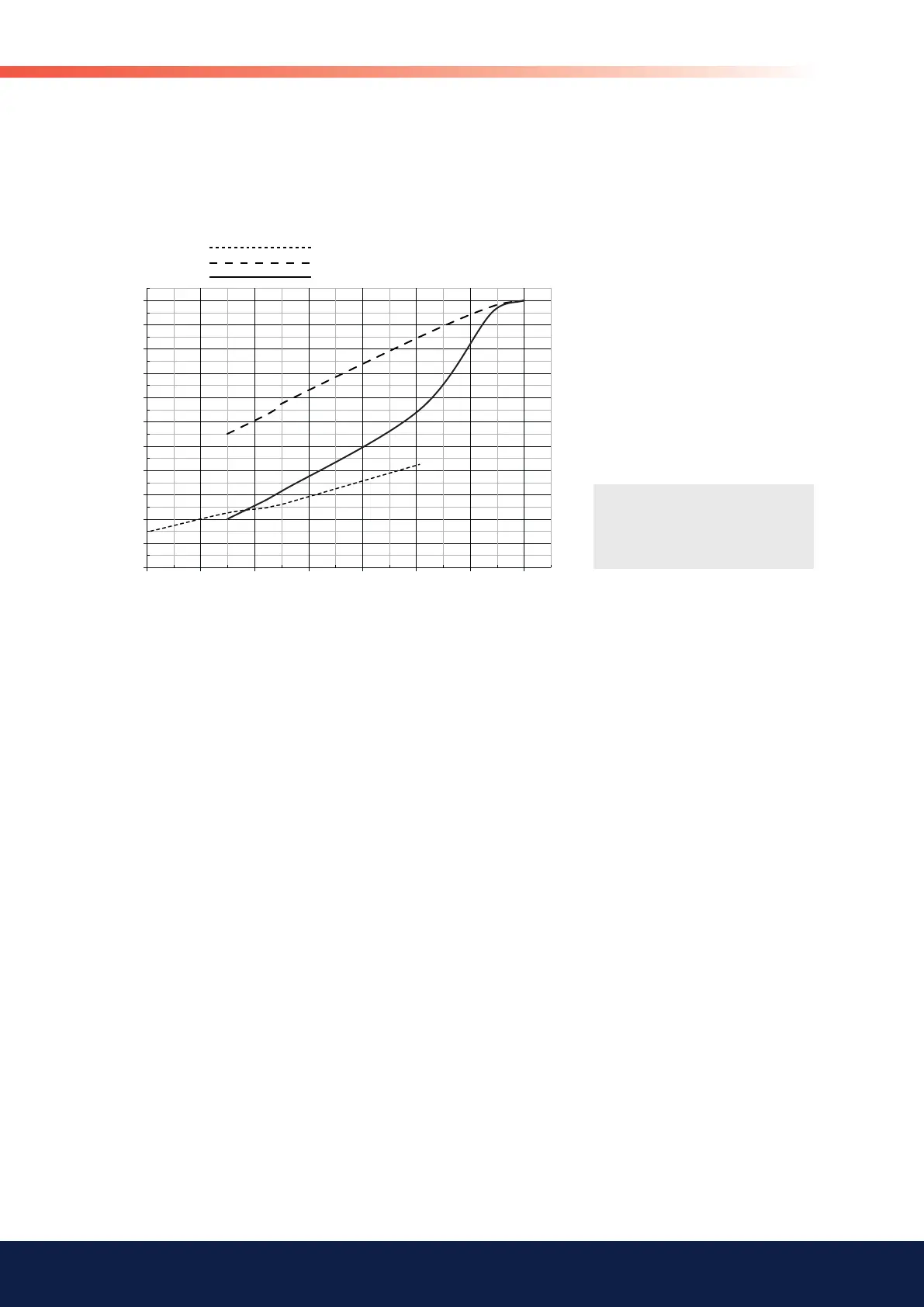

Air damper, first stage
Air damper, second stage
Brake plate adjustment
2.7 Setting for nozzle assembly and air damper
Basic settings should only be seen as setting values to get burner to start.
Once the burner has started and established ame, it is necessary to adjust the
settings so that they are adapted to the installation and the fuel used.
