- The domestic hot water priority function whereby when
there is demand for domestic hot water, the master
board can also serve the high or low temperature cir-
cuit.
- The frost protection function, also active in standby,
which starts the pump in the high temperature circuit
and the loop pump if the temperature in the manifold
falls below 5°C.
If the outside probe is fitted, the pumps start if the out-
side temperature falls below 3°C.
If after 10 minutes the temperature in the manifold is
less than 5°C, one burner starts at maximum output,
until the temperature in the manifold reaches 20°C.
If after 10 minutes the temperature in the manifold
exceeds 5°C but the outside temperature is less than
3°C, the pumps stay on until the outside temperature
exceeds this value.
- The dispersion function: the pumps in the high and low
temperature circuits remain on for 5 minutes after the
last burner has shut down. There is a 6 minute delay
from when the burner shuts down before closing the
two-way valve. When the last burner has shut down,
the valve closes only when there is no demand from the
room thermostat.
- The cascading function: to manage the output delive-
red by the system, the minimum and maximum number
of burners started can be selected.
- The burner on/off control function: in both cascading
modes there is a function that limits the ignition and
shutdown of the burners in the event of low heating
requirement.
Functional notes
The control panel on the POWER PLUS Boiler models 50 M, 100 M and 100 M DEP manages:
The buttons on the POWER PLUS 50 M, 100 M and 100 M DEP control panel have different functions in different
modes. For example, the combination of two buttons corresponds to one specific function. Alternatively, a function can
be activated by pressing the button briefly or by holding it for around 5 seconds.
Reset
This resets the electronic board after a permanent
lockout.
Set/esc
This is used to enter parameter setting mode and monitor
mode on the individual units.
[
This is used to display the operating status of the various
circuits managed by the Master board.
+ and -
These increase or decrease a certain value
MEMO
This is used to save the new values.

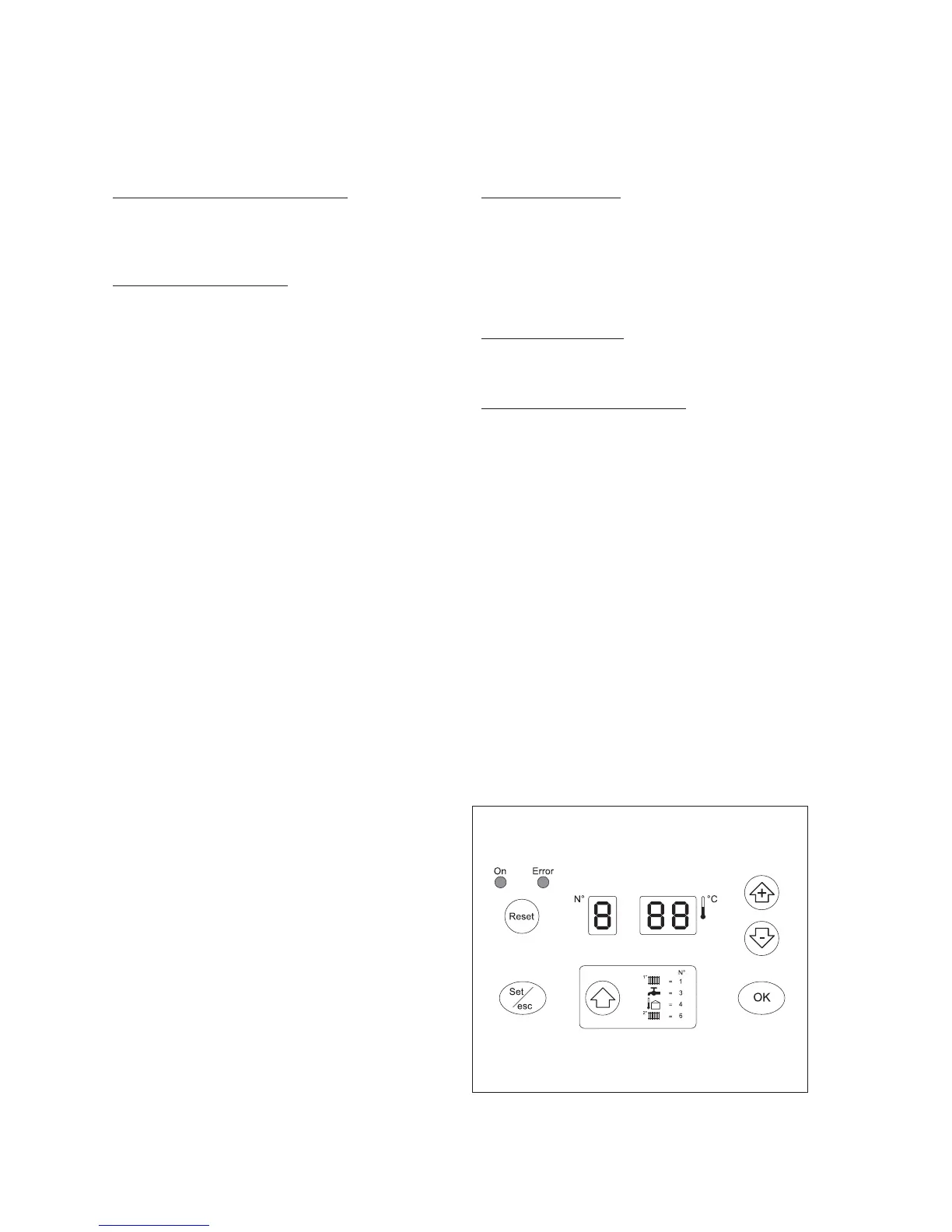

User Interface
