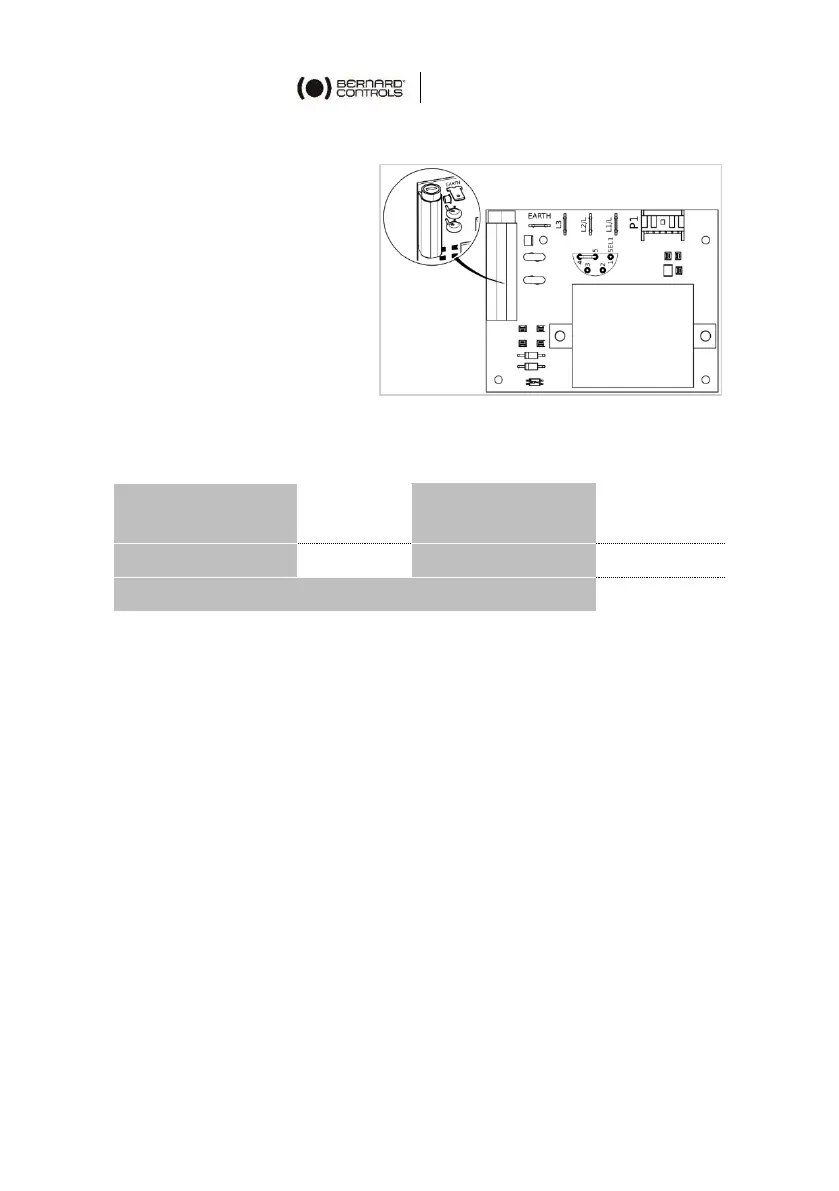

3.3.4 Power supply board
The power supply board
supplies the actuator with
electrical power.
The power characteristics
are factory set according to
the order.
Fuse
There is a fuse at the upper left angle of the board (see picture
above).
Its characteristics are as follows:
Fuse current
500 mA
Fuse size (mm)
(inches)
6.3×32
¼’’×1-¼’’
Voltage rating VAC
500 V
Blow characteristic
Fast acting
Breaking current capacity current AC
1 kA
3.3.5 Relays
The AT Logic is equipped with a Fault relay and 3 signaling relays.
 See list of Fault relay Alarms in Appendix III. This list
cannot be modified.
Customizable relays
Out of the 3 signaling relays, one is customizable. A 4-Relay board
can be added as an option (each relay is customizable).
 To see possible settings and set relays, see §5.7.
