Sewing preparation
21
2020-09 EN 5220205.00A.04

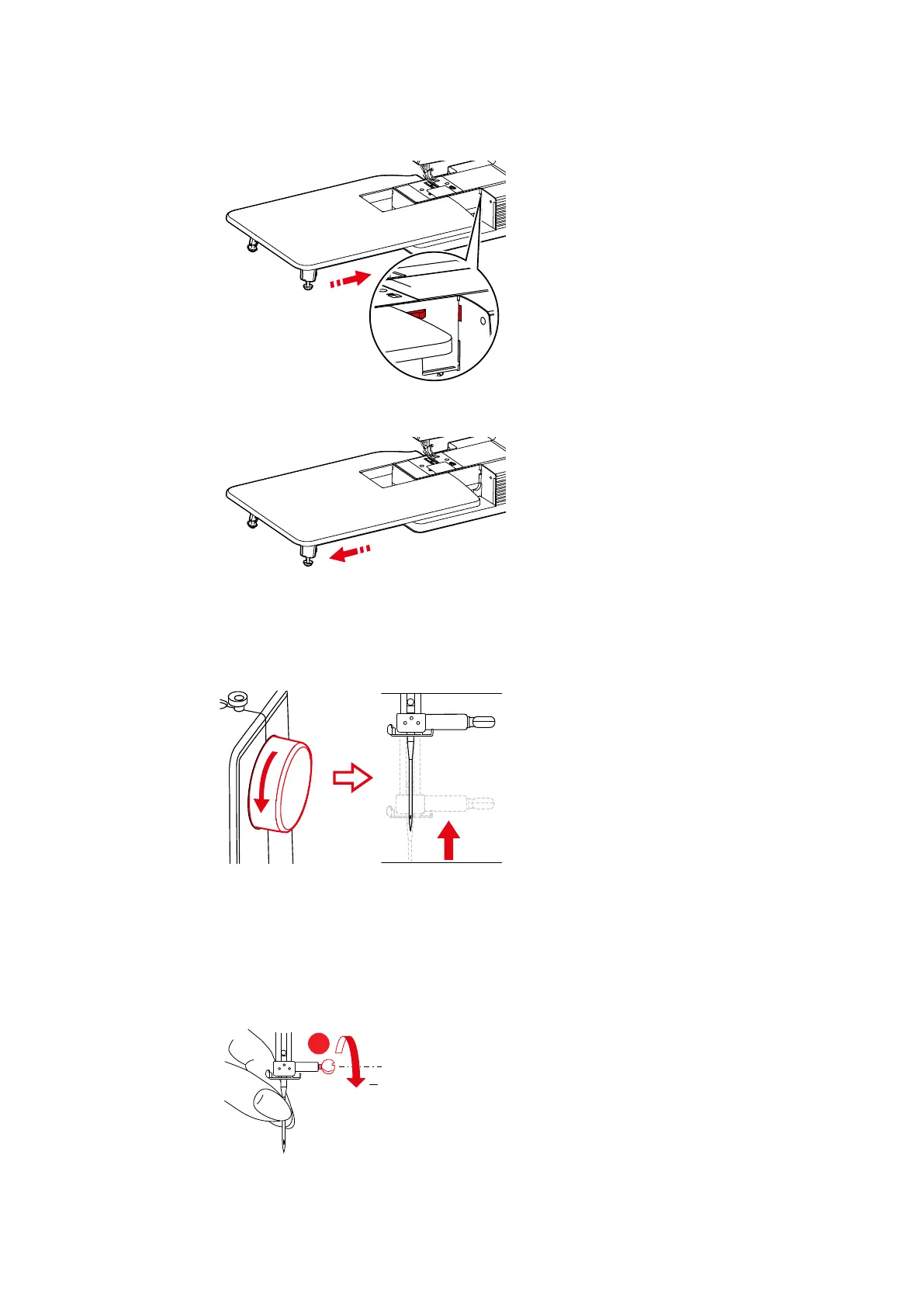

> Push the extension table from the left to the right over the free arm until it engages.
> To remove the slide-on table, pull the slide-on table over the free arm to the left.
2.7 Needle
Raising and lowering the needle
> To raise the needle, turn the handwheel anti-clockwise until the needle is in the highest position.
> To lower the needle, continue turning the handwheel anti-clockwise until the needle pierces the fabric.
Changing the needle
> Switch off the machine and disconnect it from the power supply.
> Raise the presser foot.
> Raise the needle.
> Loosen the fixing screw (1) using the screwdriver.
