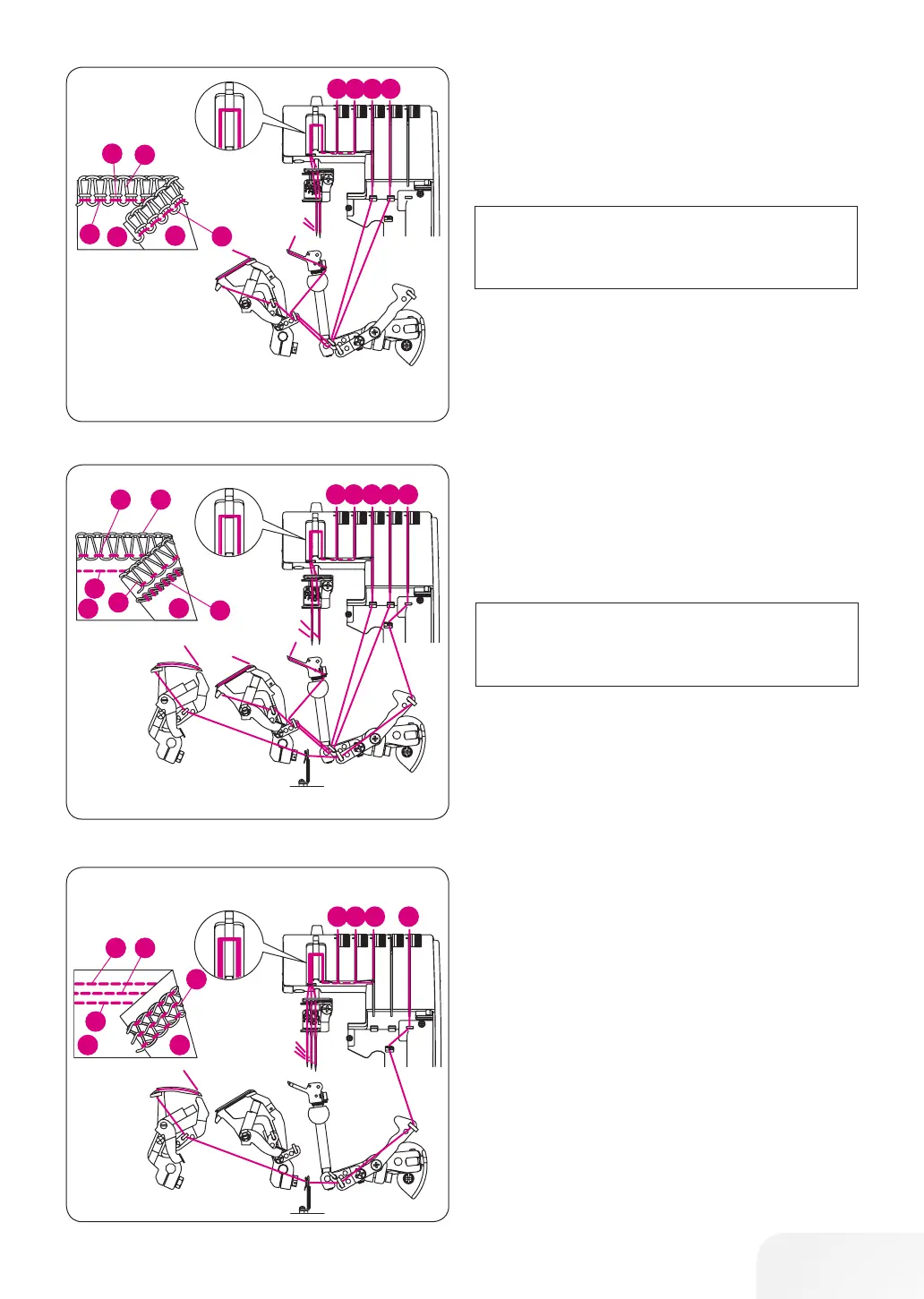

Threading Diagram Overlock and
Chainstitches
– A color coded threading diagram is located
inside the looper cover for quick reference.
– Thread the machine in the order (1)–(5).
Threading Diagram Overlock
Stitches
– A color coded threading diagram is located
inside the looper cover for quick reference.
– Thread the machine in the order (1)–(4).
Threading Diagram Coverstitches
– A color coded threading diagram is located
inside the looper cover for quick reference.
– Thread the machine in the order (1)–(4).
• Tension color code Overlock and Safety
Stitch
(1) Upper looper thread (Blue)
(2) Lower looper thread (Red)
(3) Chain looper thread (Violet)
(4) Right needle thread (Green)
(5) Left needle thread (Yellow)
(6) Topside of fabric
(7) Underside of fabric
• Tension color code Overlock Stitches
(1) Upper looper thread (Blue)
(2) Lower looper thread (Red)
(3) Left needle thread (Yellow)
(4) Right needle thread (Green)
(5) Topside of fabric
(6) Underside of fabric
• Tension color code Coverstitch
(1) Coverstitch looper thread (Violet)
(2) Cover Right needle thread (Blue)
(3) Cover/Chain Center needle thread (Green)
(4) Cover Left needle thread (Yellow)
(5) Topside of fabric
(6) Underside of fabric
