Bernhard Anglemaster 3000 - Control Box

7. Parts List (Continued)
Ref # Name of Part Qty. Part #
CONTROL BOX – MEMBRANE PANEL _________________________
1 Control Box.............................................................................. 1 A3486
2 Control Box Lid........................................................................ 1 A3487
3 Control Box Arm ...................................................................... 1 A4029
4 Membrane key panel............................................................... 1 A3330
5 Emergency Stop Button ..........................................................1 A8073
6 Contact Block N/C................................................................... 1 A8888
7 Service key switch...................................................................1 A3060
8 Pyxis- display PCB (for membrane keypad) ...........................1 A3502
9 Lyra - interface PCB (for membrane keypad) ......................... 1 A3503
10 Lead set for membrane panel ................................................. 1 A3506
11 Button Head Screw M5 x 10 ...................................................4 A5129
12 Crinkle Washer M5..................................................................4 A5319
13 Nut M5 .....................................................................................4 A5512
14 Screw M3 x 6........................................................................... 6 A8108
15 Hexagon Bolt M10 x 40 ...........................................................2 A5737

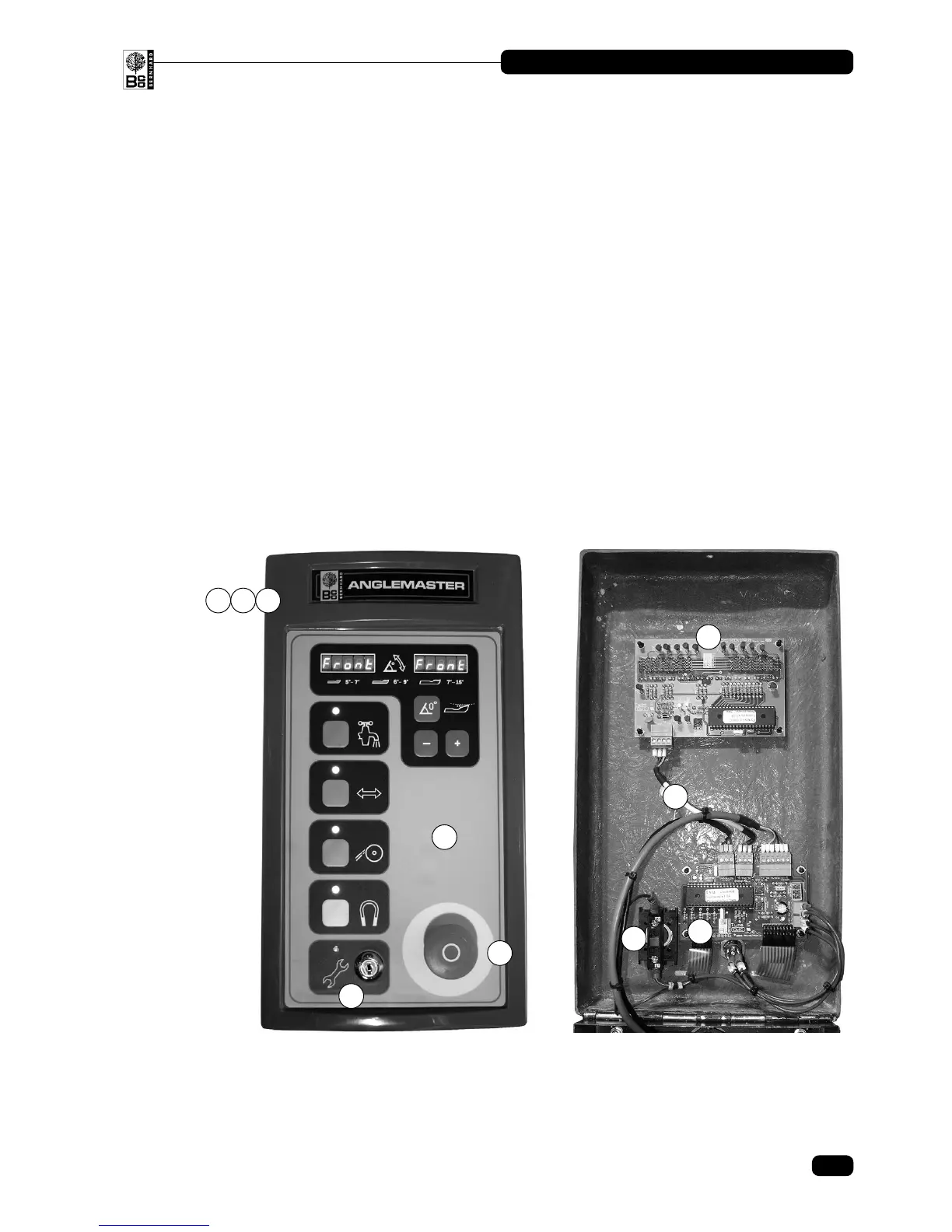

CONTROL BOX
8
9
10
5
5
4
1 2 3
7
32
