3. Setting Up

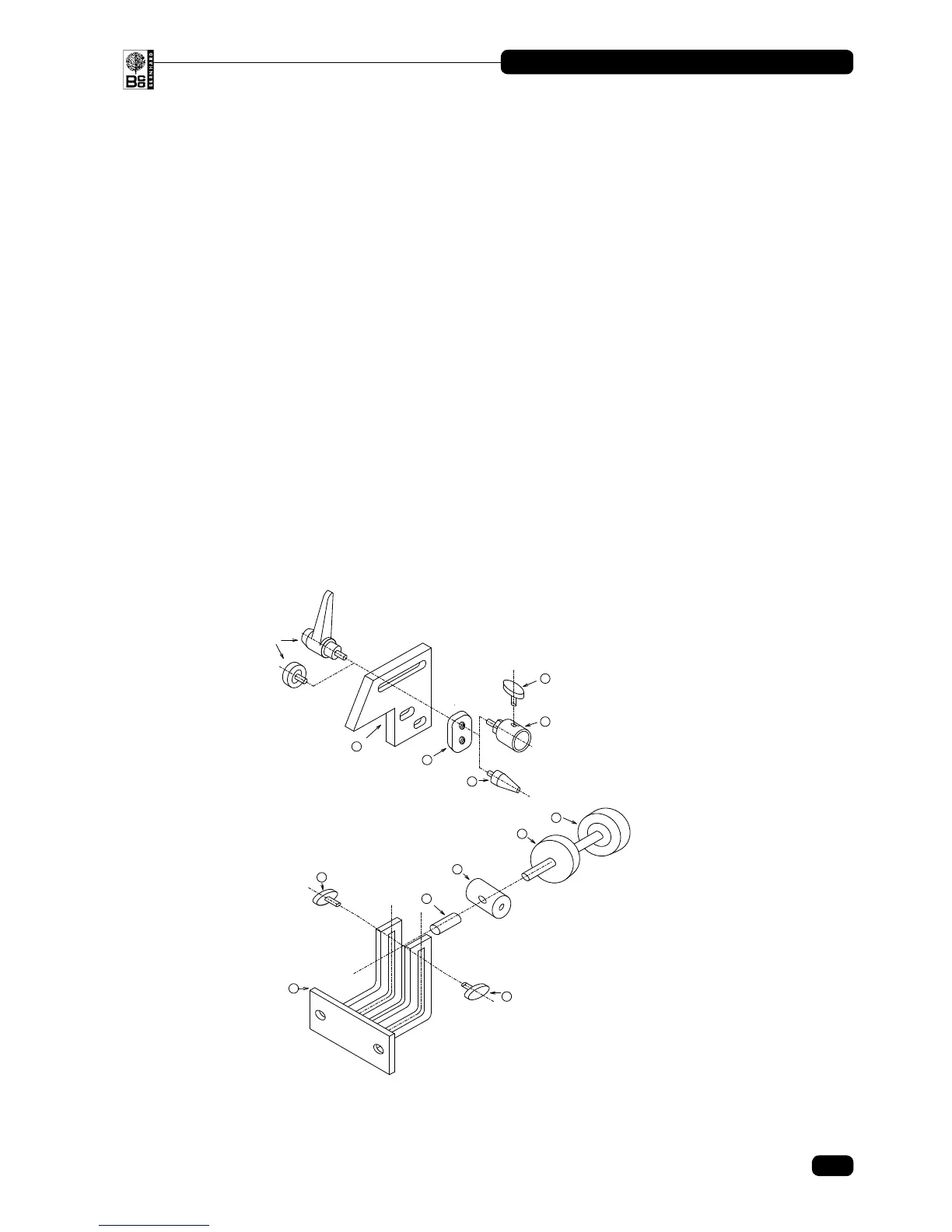

1. BRACKET BODY
2. ADJUSTABLE SUPPORT
PLATE
3. LOCKING KNOB A /
ADJUSTABLE LEVER
4. TAPERED SUPPORT PIN
5. SUPPORT CUP
6. LOCKING KNOB
7. CENTRAL JACKING SCREW
8. JACKING SCREW END
EXTENSION
9. KNURLED LOCKING NUT
10. TRUNNION
11. LOCKING KNOB
12. SUPPORT BRACKET
3.1 General
3.1.1 The ANGLEMASTER has a capacity of 40” between mounting brackets for complete
bedknife/bedbar assemblies, or 42” for plain blades clamped directly to the mounting bar.
3.2 Mounting a bedknife
3.2.1 The machine is equipped with adjustable, universal bedknife mounting brackets which can
easily be set to correspond with bed-bar xing holes. In this way the bedknife is supported
on the machine in a way that resembles, as closely as possible, its mounting in a cutting
unit. Special adapters are available when required for certain units (Adjustable quadrant
brackets may also be supplied, these are an option for those who prefer to bolt their
bedknife assemblies to a support bracket arrangement).
3.2.2 Attach adjustable support plate (2) through horizontal slot using locking knob A /
adjustable “kip” lever (3).
3.2.3 Fix either tapered pin (4) or cup (5) to adjustable support plate (Tapered pin ts all
bedknife assemblies which either bolt on or locate over a male pivot pin; Cup support is for
bedknife assemblies which mount similar to Toro 216, Spartan, 3500, 6500 etc).
