7. Parts List (Continued)
Ref # Name of Part Qty. Part #

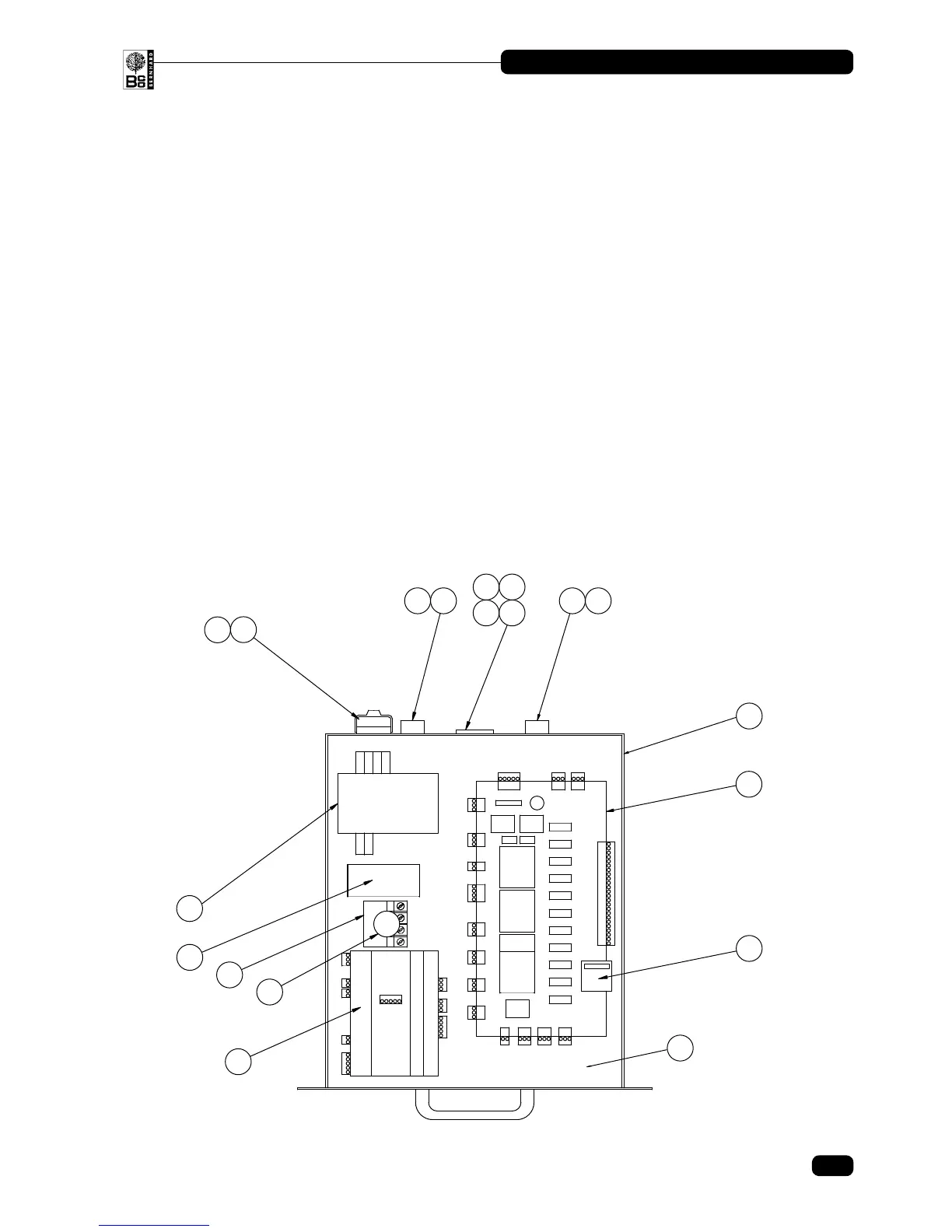

ELECTRICAL DRAWER with MAIN PCB – (membrane operator panel) _
1 Polycarbonate Cover...............................................................1 A6970
2 Electrical Drawer Inner............................................................ 1 A6969
3 Main PCB ................................................................................ 1 A8970
4 24v Transformer ......................................................................1 A8928
5 Capacitor 6.3µf........................................................................1 A8401
6 Thermal O’load 50 /60 Hz ....................................................... 1 A8117
7 Reset Button............................................................................1 A8130
8 10 way Socket ......................................................................... 1 A8003
9 10 way Plug (to Carriage)........................................................ 1 A8002
10 3 pole Socket........................................................................... 2 A8026
11 3 pole Plug (to Coolant Pump & Magnets).............................. 2 A8025
12 Vela i/o module for membrane keypad ................................... 1 A3504
13 Hours run meter 24v DC ......................................................... 1 A8206
14 Mains Power Supply Plug .......................................................1 A8125
15 Power Supply Lead
(USA).......................................................................................1 A8211
(Europe)................................................................................... 1 A8212
(UK) .........................................................................................1 A8213
16 4 pole Socket (for Interlocks) ..................................................1 A8028 (UK & Europe)
17 4 pole Plug (for Interlocks) ...................................................... 1 A8027 (UK & Europe)
