Sewing preparation
33

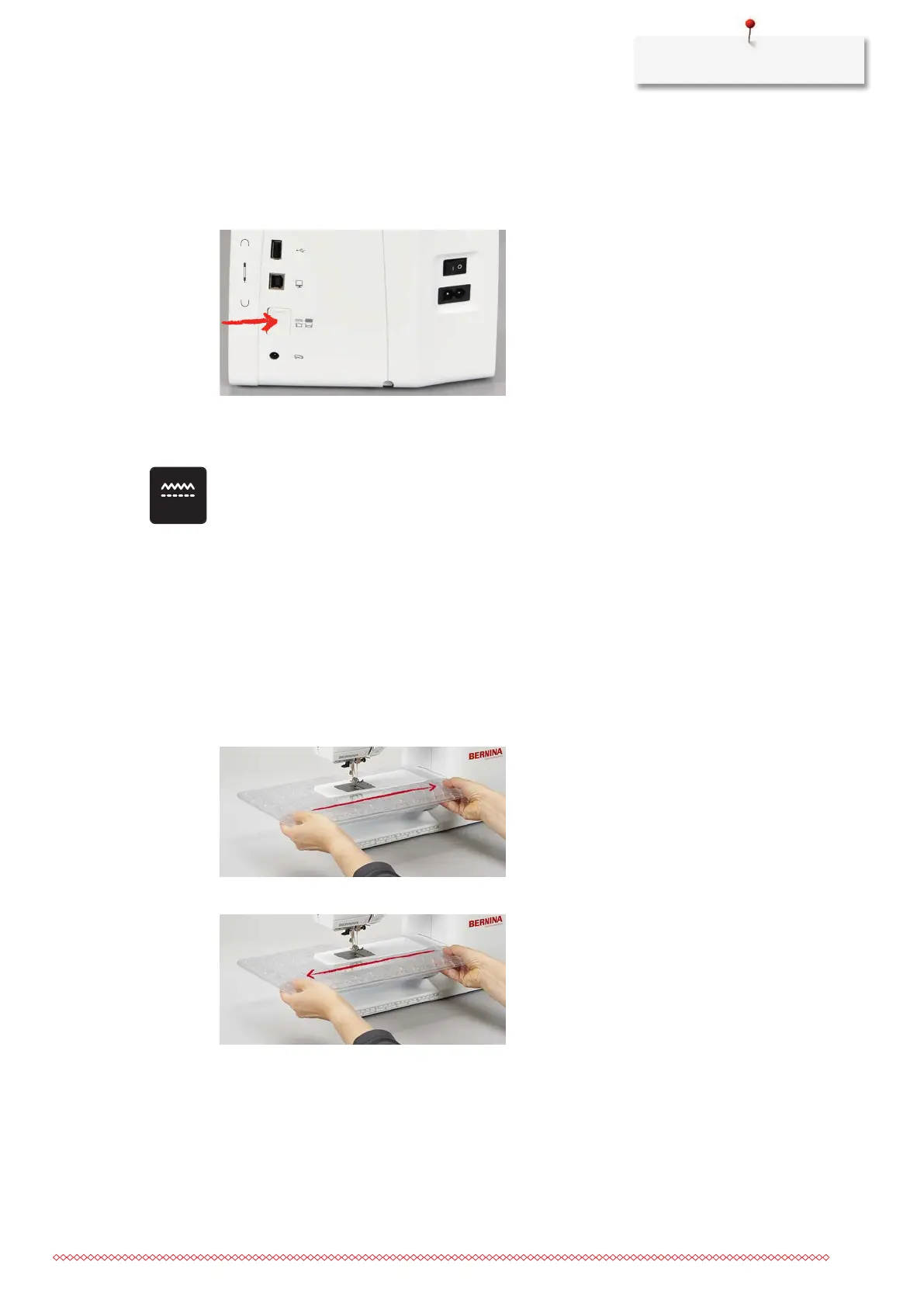

2.5 Feed dog
Adjusting the feed dog
> To lower the feed dog, push the button «Feed Dog Indicator».
> To raise the feed dog, push the button «Feed Dog Indicator» again.
Instruction for adjusting the feed dog
> Tap «Feed Dog Indicator».
> Raise or lower the feed dog according to the animation.
2.6 Slide-on table
Using the slide-on table
The Slide-on Freearm Extension Table, attached to the freearm, enables the available sewing area to be
extended.
> Raise the needle.
> Raise the presser foot.
> Switch off the machine and disconnect it from the power supply.
> Push the Slide-on Freearm Extension Table from the left to the right over the freearm until it engages.
> To remove the slide-on table, pull the slide-on table over the free arm to the left.
