BestCode NExT 82 - Viscometer Flow Tests

BestCode Next Series 8 Technical Manual October 2022 Page 189 of 290

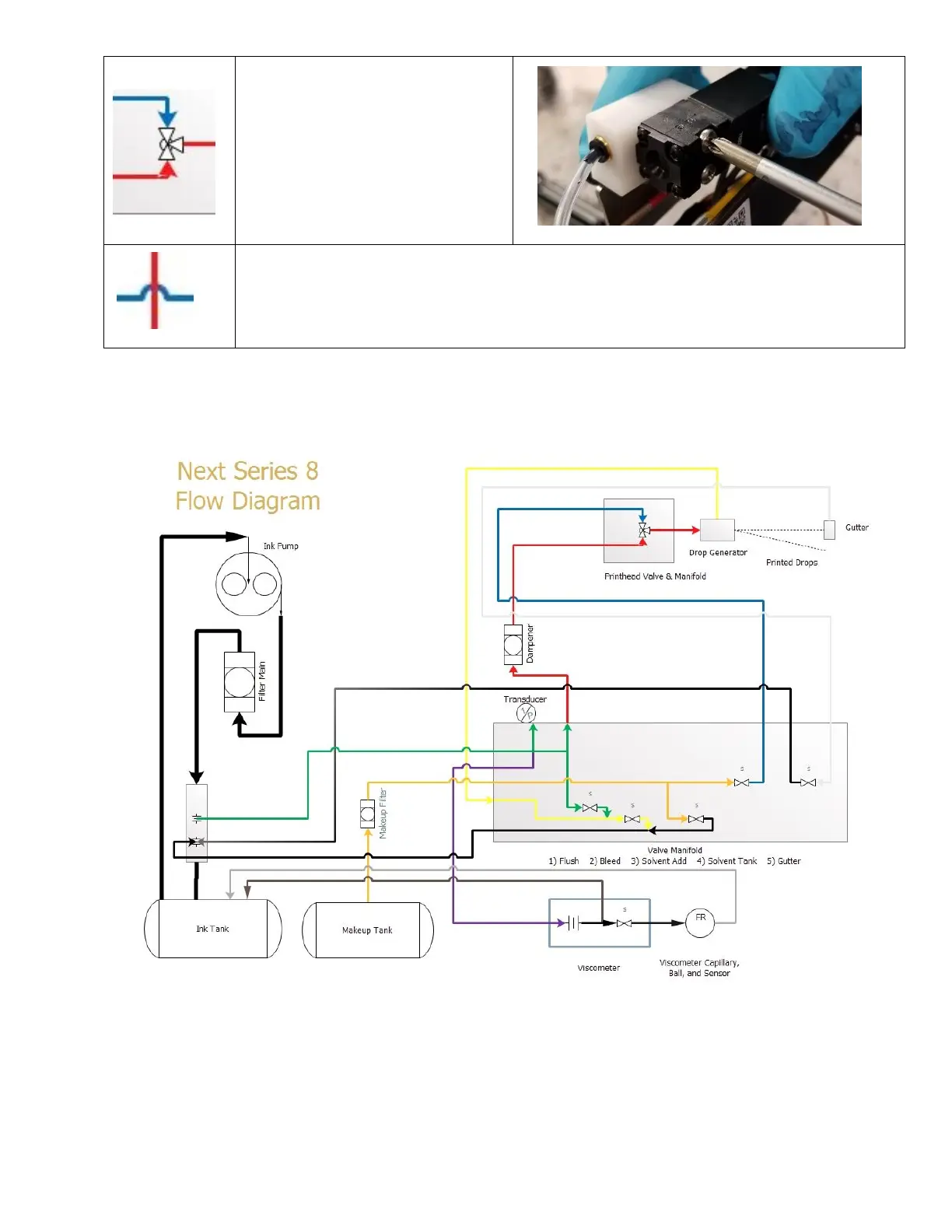

32-0002-02, Valve, 3 Way Printhead
When tubes lines are shown in this format, it means that the tubes cross but are not connected.
Ink from the Red tube is not connected to the blue tube in this symbol.
