BC615 Installation and User Manual 23

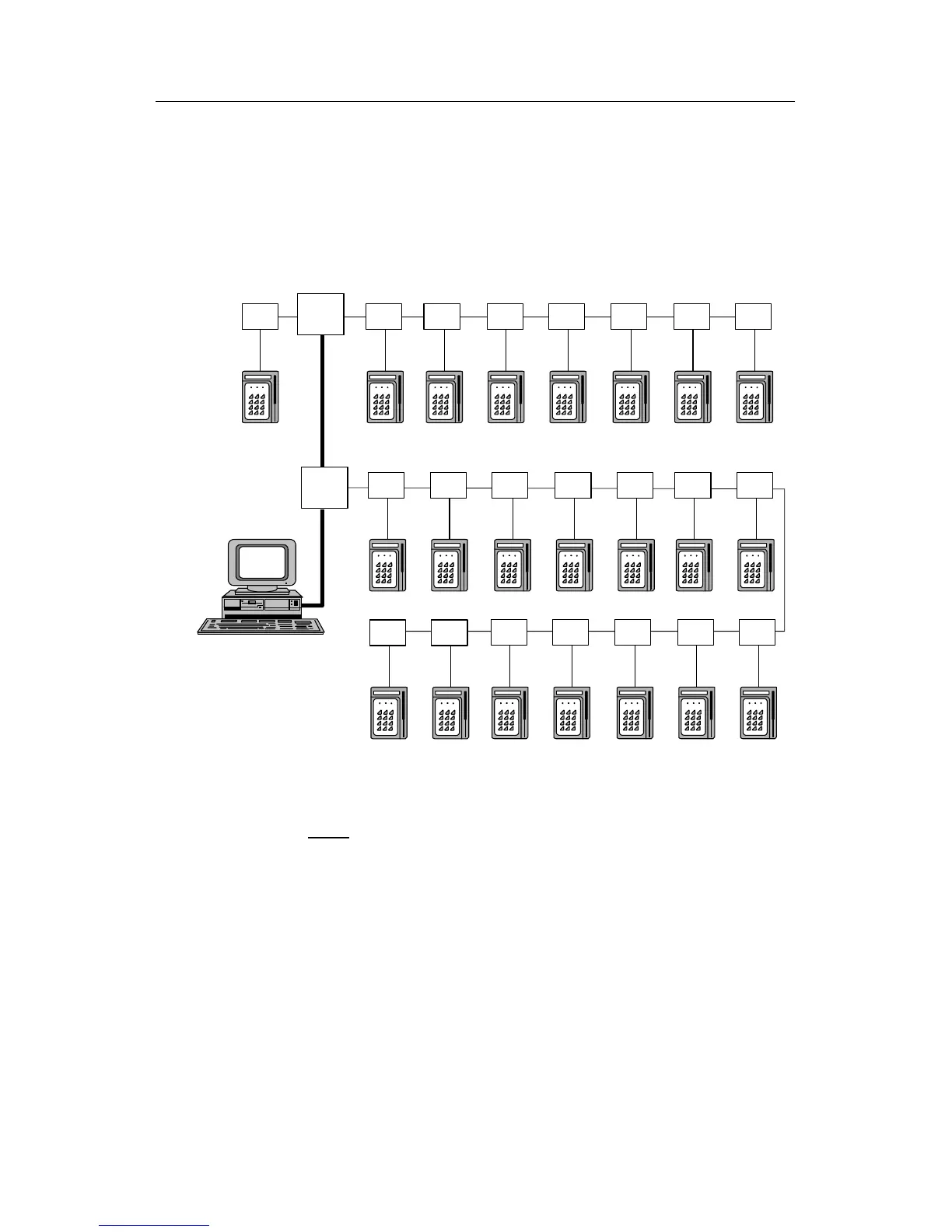

Entro wiring example
In premises where the system is more extensive, the BC615 card
readers can be connected to a Bewator Entro system.
CR1
CR1
CR1
CR1
SR32
PC
BC615 BC615 BC615BC615
CR1
CR1
CR1
BC615 BC615 BC615
CR1
BC615
SR32
Drop
box
BC615 BC615 BC615 BC615 BC615
Drop
box
DT05 BC43 DT05 BC43 DT05
BC615 BC615
DC21
Drop
box
Drop
box
DC21
BC43 BC43
DC21
Drop
box
Drop
box
Drop
box
Drop
box
Drop
box
Drop
box
DC21
The SR32i segment controllers can be connected to the PC in a ”daisy
chain” configuration. Each SR32i is controlling the card readers. A
maximum of
eight BC615s can be connected to each SR32i, but other
reader types can be included. The BC615s are connected to the system
via the CR1 converter.
