BFT Espas 20I - Wiring Diagram

41 - Espas 20I
D812913 10598_02
ENGLISH

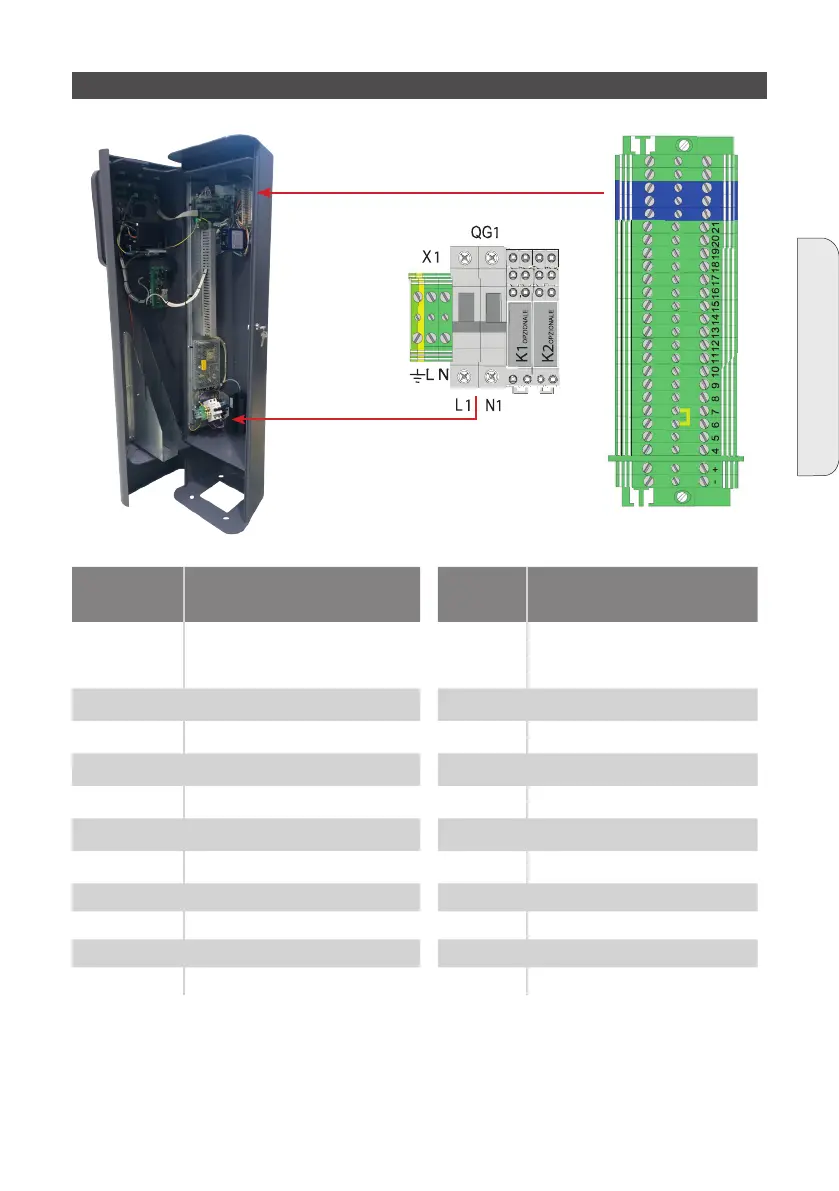

Terminals Description Termi-
nals
Description
PE, L, N
230Vac power line. Take extra
care to fasten the 3 cables to
each of the 3 terminals.
11 Barrier end stroke common
contact
N1 QG1
Trac lights supply
12
(1)
Station disabling contact
N.O. K1
Red trac light
13
(1)
Station disabling contact
N.C. K1
Green trac light
14
(2)
Transit in progress contact
4 Barrier opening N.O. contact
15
(2)
Transit in progress contact
5 Barrier closing N.O. contact
16
(3)
Transit request contact
6 Open common contact
17
(3)
Transit request contact
7 Close common contact 18 Detection loop
8 Stop N.C. contact 19 Detection loop
9 Stop common contact 20 Safety loop
10 Barrier end stroke N.O. contact 21 Safety loop
(1) The station is disabled if contact 12-13 is closed. It is used, for instance, to comply with a give way sig-
nal.
(2) Open collector 50mA 24V output. It is activated when the barrier is opened following an accepted
transit request (valid or correctly collected ticket, valid season ticket). This output is used for the Sacs
space counting system (CAPACITY KIT).
(3) Open collector 50mA 24V output. It is activated when the detection loop is triggered.
12.1 - WIRING DIAGRAM
