MANUAL INTRODUCTION
Version: 6.1 (05-12-2011) 9
Type CA M-150-W-F
Code 1213 U 230 V 1N~ 50 Hz
Biddle bv
Markowei 4
NL-9288 HA Kootstertille
Nº 5426/1-1 00-01 I
max
L1 2.4 A
I
max
L2 -
M 60 kg I
max
L3 -
Medium LPHW P
motor
0.56 kW
p
max
1400 kPa P
heating
-

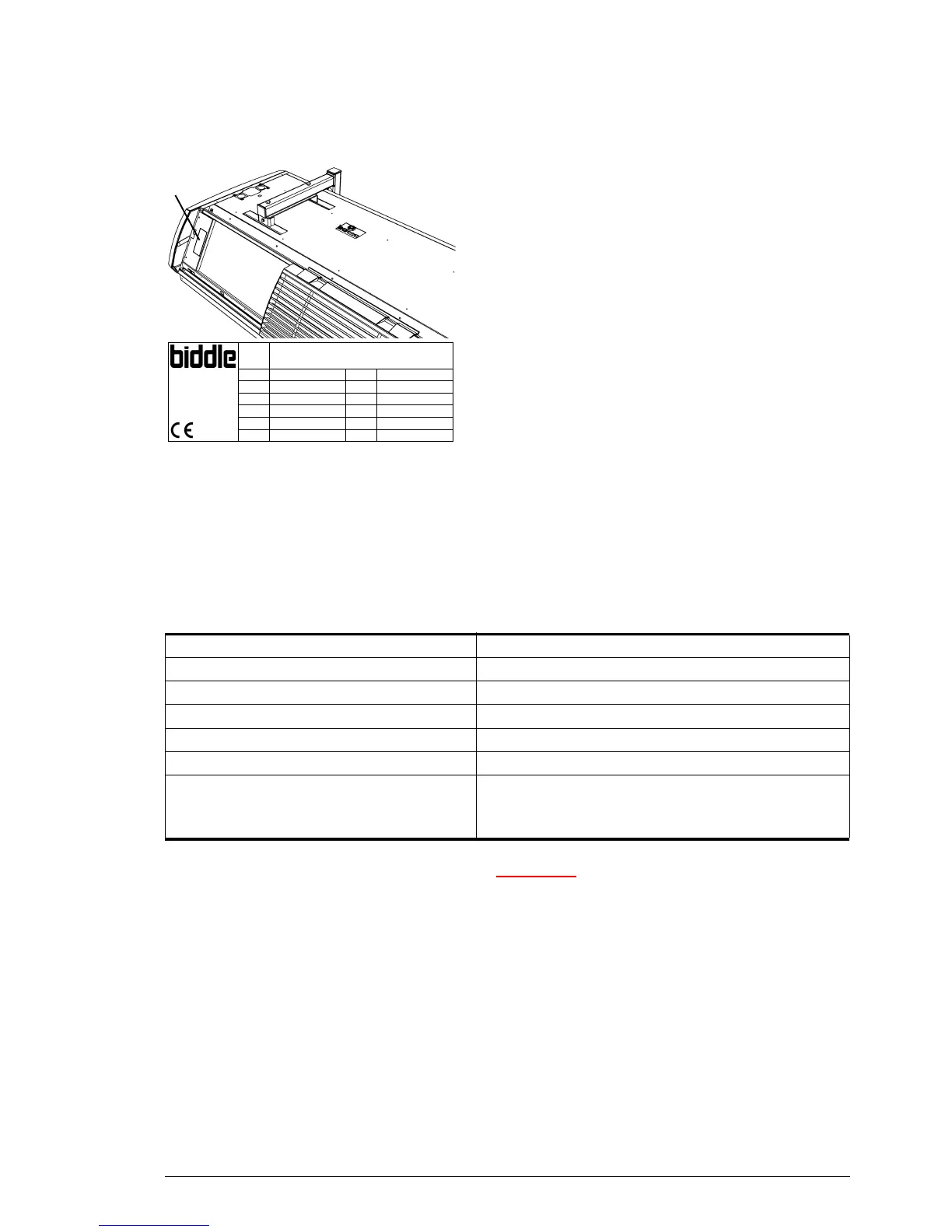

Example of a type plate
1.4.4 Type plate
The type plate 1 is located on the left at the front of the unit.
This manual refers to the following data on the type plate:
• Ty
pe: Complete type code of the unit;
• Code: Unit co
de of the Biddle electronics;
• M: W
eight of the unit;
• Medium: Heati
ng medium
• Capacity index:
Daikin capacity index
• P
max
: Maximum permissible working pressure in the hot
water circuit (at 110 ºC);
• U, I
max
, P
motor
and P
heating
: Maximum load on the electrical
system by the unit.
1.4.5 Field of application
The Comfort Air Curtain is predominantl
y used in commercial
premises at an ambient temperature of max. 40°C. The
following limits must thereby be observed:
Table 1-3 Appl
ication limits
Ambient temperature 5°C to 40°C
System voltage see type plate
Power see type plate
Maximum discharge temperature 50°C
Heating medium CA W water with max. 20% glycol
Maximum working pressure and temperature 6 bar at 110°C
Maximum valve pressure difference:
- CA S/M
- CA L/XL
0.5 bar
1.0 bar
Warning:
w The air curtain must not be employed in potentially
explosive atmospheres, wet environments,
outdoors or in very dusty or aggressive air. Biddle
assumes no responsibility for damage or injury
resulting from use in these situations.
1.4.6 CE standard
Q
The air curtain satisfies the applicable CE standards. The
complete CE declaration can be found at the Biddle website.
