BIFFI FAIL SAFE ELECTRIC ACTUATORS, MODEL EFS2000V4
InstructIon and operatIng Manual
13.1.10 Interlock
The interlock inputs can be used to inhibit the
actuator movement in open or close direction.
The controls are momentary, the inhibit action
continues until the relevant signal is present.
The interlock controls work when the local
selector is in LOCAL or in REMOTE. The ESD
control overrides the interlock controls. The
following options can be configured:
• Interlock OP: active when signal is PRESENT,
active when signal is ABSENT, no action
(OFF).
• Interlock CL: active when signal is PRESENT,
active when signal is ABSENT, no action
(OFF).
Configuration procedure
• Move the local selector to OFF and then
simultaneously press OPEN and STOP within
20 sec (see chapter ‘Local controls, entering
the set-up mode’). Select the language and
then enter the password according to the
instructions (see entering the set-up mode).
When the message displayed is ‘SET-UP
MODE OK?’ press YES. Press YES to select
the actuator set-up menu, press NO to scroll
through the list of available routines and then
press YES to select INTERLOCK.
• Press YES if the configured value of the Open
Interlock is correct (PRESENT, ABSENT,
OFF), or press NO to change it, then press
YES.
• Press YES if the configured value of the Close
Interlock is correct (PRESENT, ABSENT,
OFF), or press NO to change it, then press
YES.
13.1.11 Two-speed timer
The “2-speed timer” routine is used to extend
the actuator traveling time in opening and/
or closing direction, by driving the motor by
pulses which duration (ON and OFF time) is
configurable. Pulsing control can be applied to
full travel or only a part of it.
Start position and stop position may be adjusted
from 0% - 100% separately in opening and
closing direction.
ON time and OFF time may be adjusted from
2sec - 200 sec separately in opening and
closing direction.
Configuration procedure
• Move the local selector to OFF and then
simultaneously press OPEN and STOP within
20 sec (see chapter ‘Local controls, entering
the set-up mode’). Select the language and
then enter the password according to the
instructions (see ‘Entering the set-up mode’).
When the message displayed is ‘SET-UP
MODE OK?’ press YES. Press YES to select
actuator set-up menu, press NO to scroll
through the list of available routines and then
press YES to select 2-speed timer.
• Press YES to change close direction
parameters, press NO and then YES to
change only open direction parameters.
Closing direction
• Press YES if the status is OK, or NO to
change. Press YES to confirm (status =
On, enables 2-speed timer operation in
closing direction; status = Off, disables timer
operation in closing direction).
• Press YES if the position value where pulsing
control starts is correct, press NO to scroll
through the list of available values. Press YES
when the value is correct.
• Press YES if the position value where pulsing
control stops is correct, press NO to scroll
through the list of available values. Press YES
when the value is correct.
• Press YES if the value of the ON time of
pulsing control is correct, press NO to scroll
through the list of available values. Press YES
when the value is correct.
• Press YES if the value of the OFF time of
pulsing control is correct, press NO to scroll
through the list of available values. Press YES
when the value is correct.
Opening direction
• Press YES if the status is OK, or NO to
change. Press YES to confirm (status = On
enables 2-speed timer operation in opening
direction; status = Off, disables timer
operation in opening direction).
• Press YES if the position value where pulsing
control starts is correct, press NO to scroll
through the list of available values. Press YES
when the value is correct.

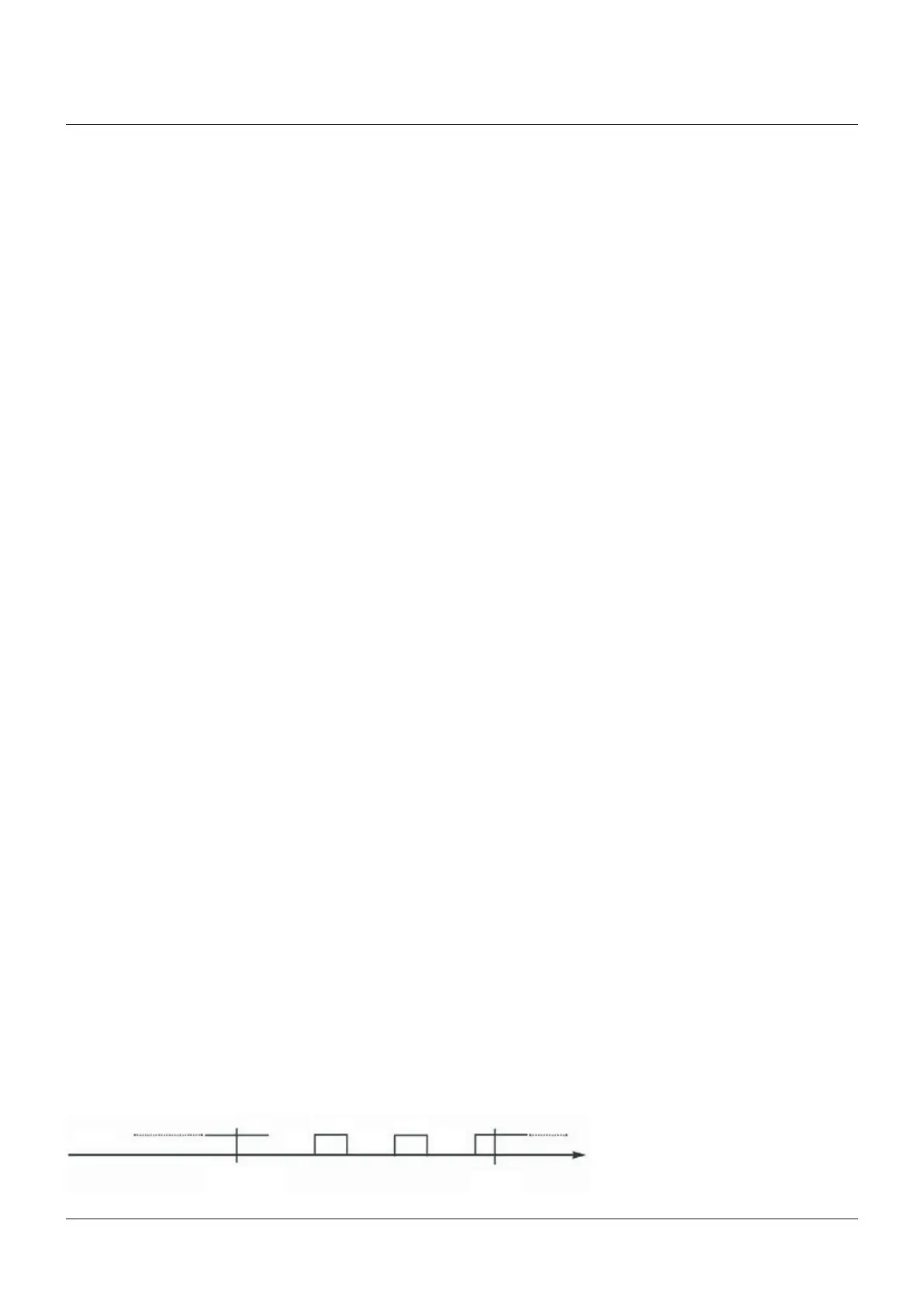

Motor
On time
On time
On time
Start
Position %
Stop
Position%
Off
time
Off
time
Off
time
• Press YES if the position value where pulsing
control stops is correct, press NO to scroll
through the list of available values. Press YES
when the value is correct.
• Press YES if the value of the ON time of
pulsing control is correct, press NO to scroll
through the list of available values. Press YES
when the value is correct.
• Press YES if the value of the OFF time of
pulsing control is correct, press NO to scroll
through the list of available values. Press YES
when the value is correct.
