Configuration procedure
• Move the local selector to OFF and then
simultaneously press OPEN and STOP within
20 sec (see chapter ‘Local controls, entering
the set-up mode’). Select the language and
then enter the password according to the
instructions (see entering the set-up mode).
When the message displayed is ‘SET-UP
MODE OK?’ press YES. Press YES to select
the actuator set-up menu, press NO to scroll
through the list of available routines and then
press YES to select FAIL SAFE.
• Press YES if the configured ACTION is correct
(open, close, stay-put, go to position xxx%,
off), or press NO to change it, then press YES.
Output: position
Output mA
Output mA
Position %
Position %
Output: torque
Polarity: 4 mA = CL Polarity: 4 mA = OP
0% 100% 0% 100%
Polarity: 4 mA = CL Polarity: 4 mA = OP
100% CL 0% 100% OP 100% CL 0% 100% OP
13.1.9 OUT 4-20mA
This routine is only available if the Ain/Aout
card is present. With this card the ICON2000
is provided with a 4-20 mA analog input and a
4-20 mA analog output. The 4-20 mA output can
be configured to provide a current proportional

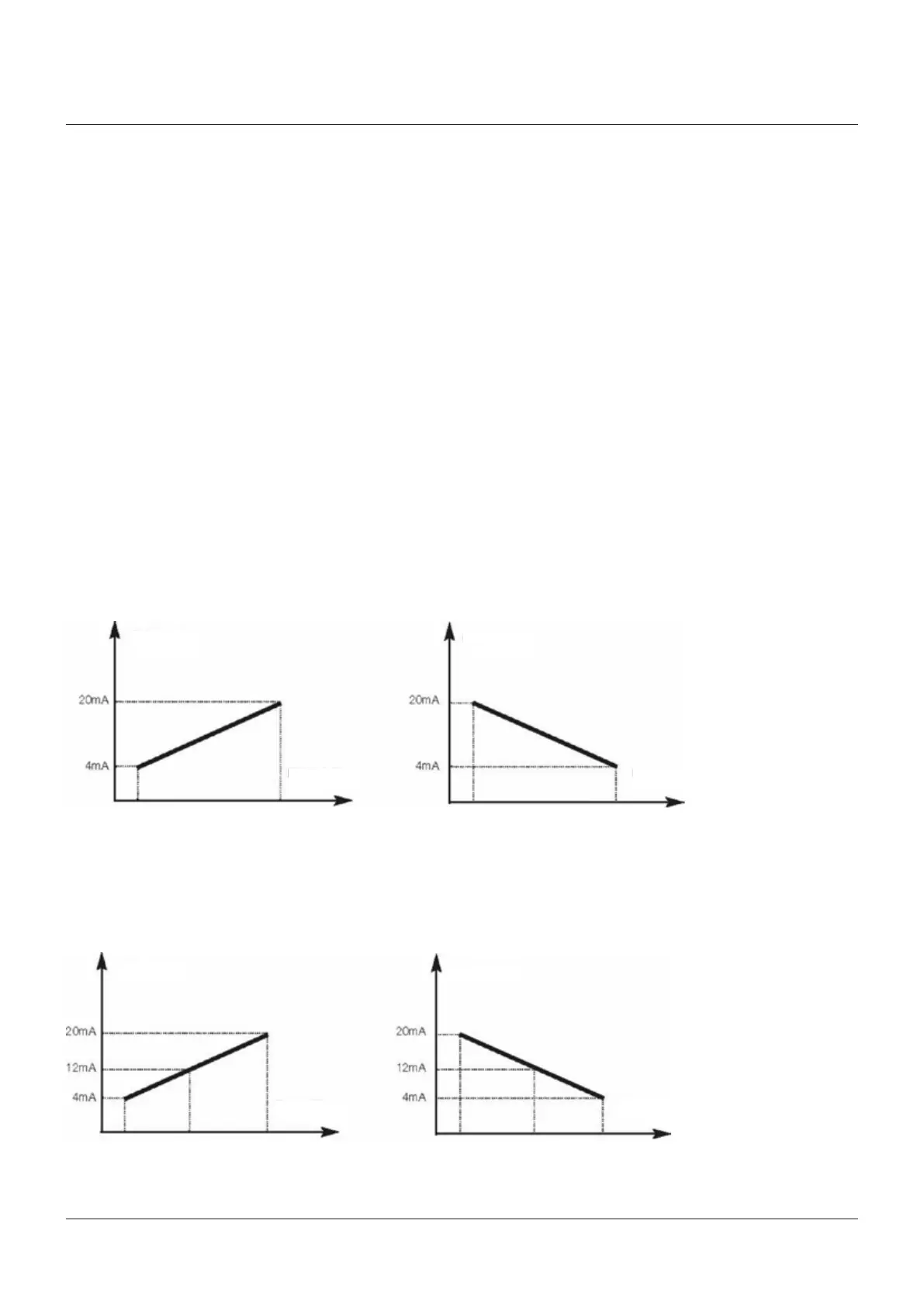

to either ‘position’ or ‘torque’. The polarity
option allows to reverse the relationship
between the present position or torque and
the 4-20 mA output signal, according to the
following diagrams:
Configuration procedure
• Move the local selector to OFF and then
simultaneously press OPEN and STOP within
20 sec (see chapter ‘Local controls, entering
the set-up mode’). Select the language and
then enter the password according to the
instructions (see ‘entering the set-up mode’).
When the message of the display is ‘SET-UP
MODE OK?’ press YES. Press YES to select
the actuator set-up menu, press NO to scroll
through the list of available routines and then
press YES to select Out4-20 mA.
• Press YES if the output is correct (POSITION
or TORQUE), or press NO to change it, then
pressYES.
• Press YES if the polarity is correct, or press
NO to change it, then press YES.
Output mA
Torque %
Output mA
Torque %
• Press YES if the configured value of the
DELAY is correct (from 0 to 255 sec), or press
NO to change it, then press YES.
