BIFFI FAIL SAFE ELECTRIC ACTUATORS, MODEL EFS2000V4
InstructIon and operatIng Manual

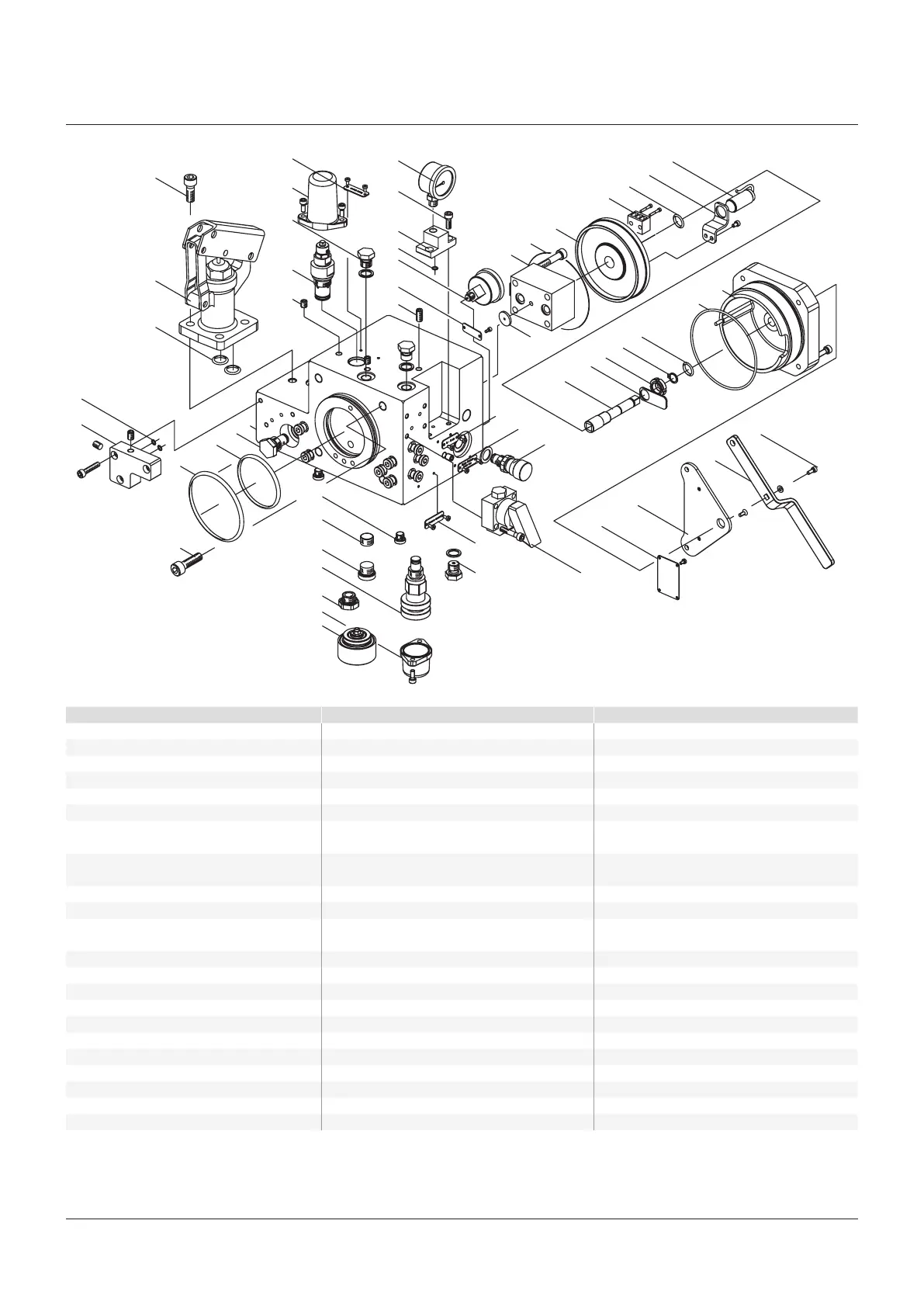

PARTS LIST
Item Qnt Description Material Item Qnt Description Material Item Qnt Description Material
1 1 By pass flange Stainless steel 23 4 Screw Stainless steel 45 1 Screw Stainless steel
2 9 Plug Stainless steel 24 1 O-ring NBR rubber 46 1 Washer Stainless steel
3 8 Screw Stainless steel 25 1 Cover Aluminium 47 1 Name plate Stainless steel
4 2 O-ring NBR rubber 26 1 Terminal - 48 1 Name plate Stainless steel
5 2 O-ring NBR rubber 27 2 Screw Stainless steel 49 1 Flow control valve -
6 1 Hand pump - 28 1 O-ring NBR rubber 50 1 Seal ring -
7 4 Screw Stainless steel 29 1 Sensor support Stainless steel 51 1 2/2 N.C. hand operated
spring return valve
-
8 1 Adjustable flow
regulator
- 30 2 Screw - 52 1 Name plate Stainless steel
9 3 Drain plug Stainless steel 31 1 Proximity sensor - 53 18 Plug Stainless steel
10 3 Seal washer Stainless steel 32 1 Selector shaft Stainless steel 54 1 Flow regulator -
11 1 Adjustable flow
regulator cover
Aluminium 33 1 Auto/manual indicator Stainless steel 55 1 Plug Stainless steel
12 4 Screw St ainless steel 34 1 Ring nut Stainless steel 56 1 Relief valve -
13 1 Name plate Stainless steel 35 1 Circlip Stainless steel 57 1 Check valve -
14 14 Screw Stainless steel 36 1 O-ring NBR rubber 58 1 Relief valve cover Aluminium
15 2 Screw Stainless steel 37 1 O-ring NBR rubber 59 1 O-ring NBR rubber
16 1 Name plate Stainless steel 38 1 Upper cover Aluminium 60 4 Relief valve -
17 1 Gauge - 39 1 Pin Carbon steel 61 4 Screw Stainless steel
18 1 O-ring NBR rubber 40 1 Centering washer Stainless steel 62 1 O-ring NBR rubber
19 1 Gauge support Stainless steel 41 1 Selector name plate Stainless steel 63 1 O-ring NBR rubber
20 2 Screw Stainless steel 42 1 Selector locking flange Stainless steel 64 1 Check valve -
21 1 Gauge - 43 2 Screw Stainless steel 65 1 Manifold Stainless steel
22 1 Auto/manual selector - 44 1 Selector locking lever Stainless steel
