BA-EN-HydroStar V3.1 page 17

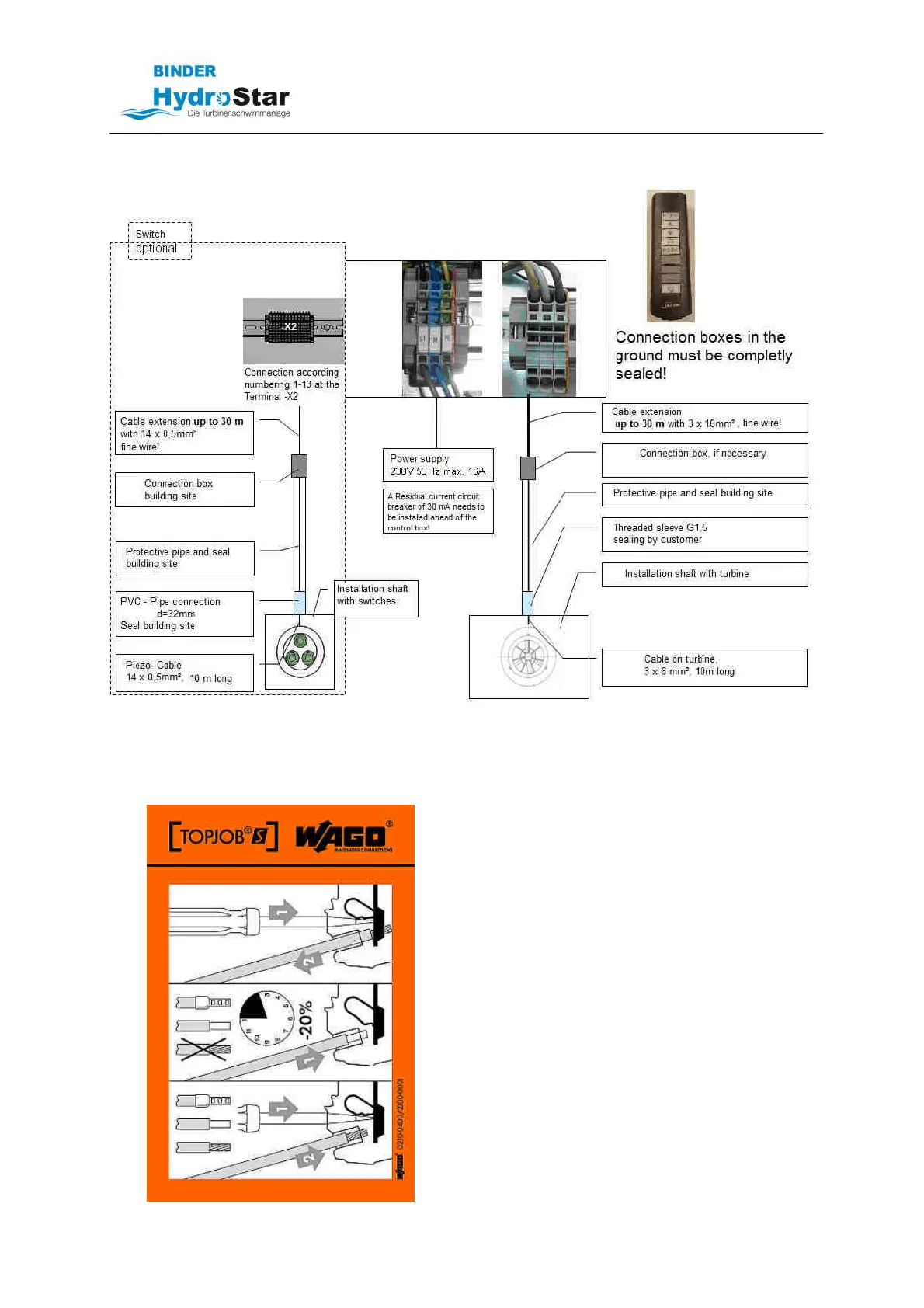

7.1 Connection block diagram
The HydroStar BGA 320/430/550 Twin twice the motor terminals.
7.2 Terminals
• Connection is carried out by means of
screwless WAGO terminals
• Please observe the information.
WARNING
The wires for motor feed have a paper casing!
Ensure that the paper casing is completely
removed!
To Next Page
