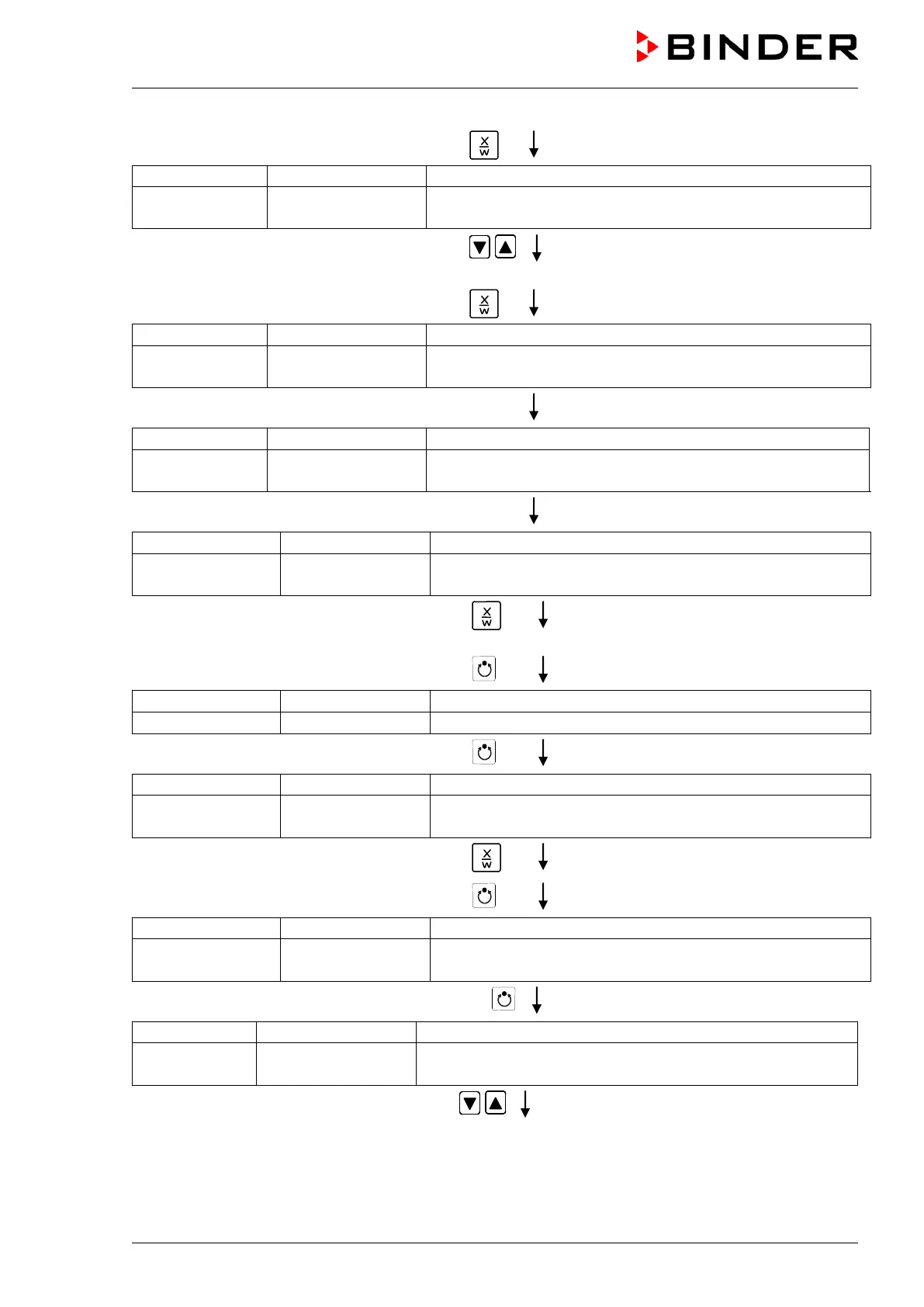

KB 23 / KB 23-UL (E3.1) 02/2019 page 49/87
Press key
Display 1 shows
0000
Display 2 shows Ch1 = SP2: On
(entry of state of channel 1)
(actual setting: On)
Enter the state of channel 1
On using arrow keys
Setting is shown in display 2.
Press key
Display 1 shows
0000
Display 2 shows Channel 2: Off
(entry of state of channel 2)
(actual setting: Off)
Press key EXIT
Display 1 shows
06.00
(time of the selected shift point)
Display 2 shows S1: 06:00 � -
(actual selection of the shift point: S1)
(actual setting: time 06.00, channel 1 ON)
Press key EXIT twice
to select the next day of the week
Display 1 shows
0000
Display 2 shows Friday
(selection of day of the week)
(actual selection: Friday)
Select the next day of the week (Friday) with
key
Day of the week is shown in display 2.
Press program key
Display 1 shows
0000
Display 2 shows
Shiftpt.
(no function)
Press program key
Display 1 shows
0000
Display 2 shows Shiftpt. 1
(selection of the shift point)
(actual shift point: 1)
Select shift point 1 with key
Value is shown in display 2.
Press program key
Display 1 shows
e.g. --.--
(time of the selected shift point)
Display 2 shows S1: --:--
(actual selection of the shift point: S1)
(actual setting: shift point not programmed)
Press program key
Display 1 shows
20.00
(time of the selected shift point)
Display 2 shows Time 20:00
(entry of time of the selected shift point)
(actual setting: 20.00, i.e. 8 p.m.)
Enter the time 20:00 using arrow keys
Value is shown in display 2.
