Repair work at the humidifying and dehumidifying system
7. Remove the condensate drain hose (E, Figure 51) from the drain tank (J, Figure 51).
8. Remove the hose clamp at the steam valve (A, Figure 51) of the steam hose (O, Figure 51).
9. Pull off the steam hose (O, Figure 51).
10. Remove the steam valve (A, Figure 51) from the moist collecting sheet.
11. Remove the fixing screws (Z,
Figure 53).
12. Pull the humidification module out of the unit.
13. Make sure to keep the humidification module horizontally to prevent water leaking out.
14. Install the module by following steps 1 to 12 in reverse order.

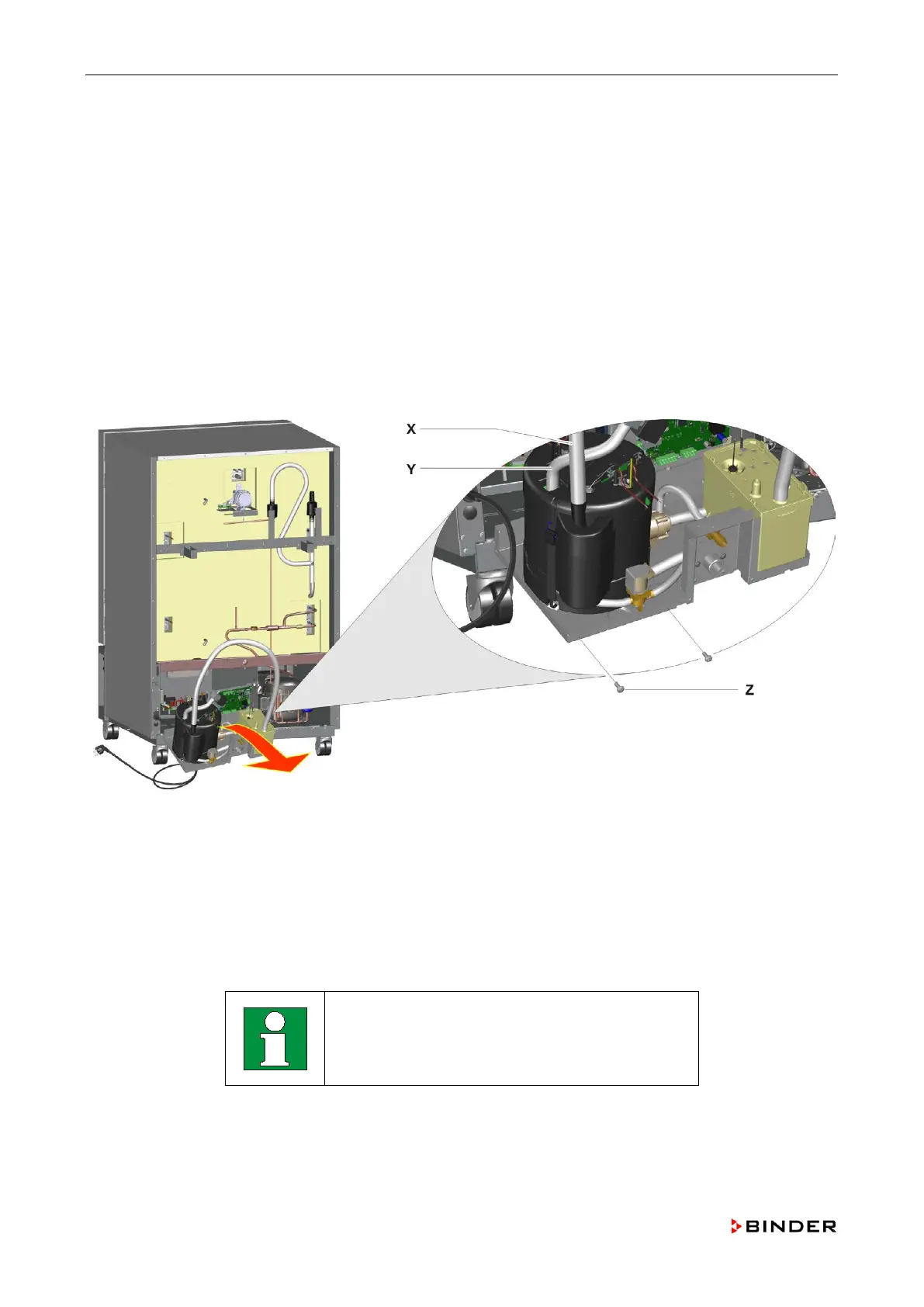

Figure 53: Befeuchtungsmodul (-9A1) ausbauen
X Riser hose
Y Steam hose
Z Fixing screws
After beeing connected to the water supply
the humidification module is immediately
ready for operation.
