Bio-Logic SP-240 - 30 V Booster

Manual for VMP300-based instruments
98
Operating area
Slew rate (no load)
>15V/µs
Rise/Fall time (no load)
<250ns
Floating mode
Yes
Parallel ability
No
Current accuracy
0.1% range
Impedance specifications (if booster board connected to board with EIS option)
Accuracy
Same as the potentiostat/galvanostat board
but limited at 2 MHz
10.2.4 2A/30 V booster
Control amplifier
Compliance voltage
± 30V
Compliance current
± 2 A
Control voltage
± 30V
Bandwidth (-3dB)
>3MHz

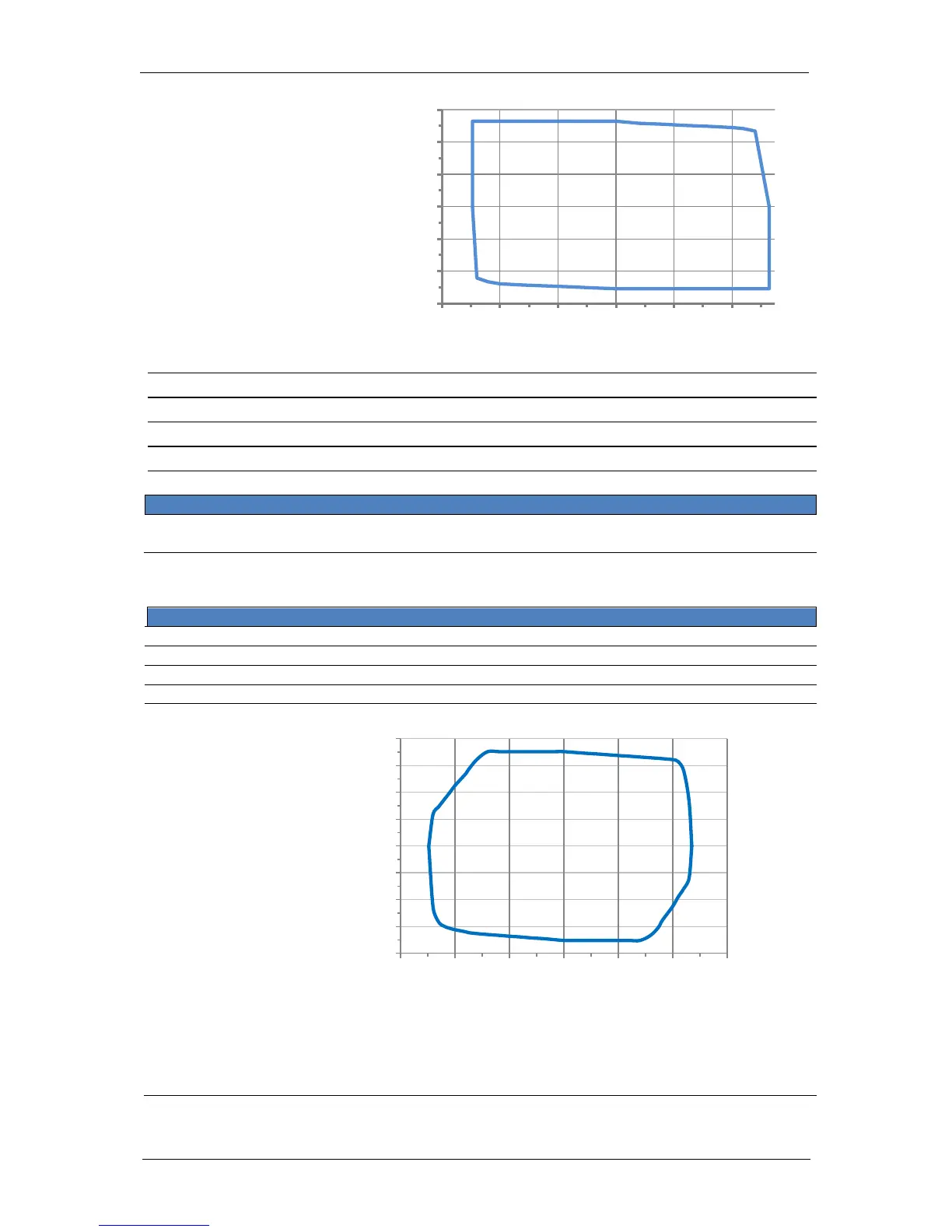

Operating area
Operating area was specified in the worst case
-60
-40
-20
0
20
40
60
-1,5 -1 -0,5 0 0,5 1 1,5
E(V)
I(A)
-40
-30
-20
-10
0
10
20
30
40
-3 -2 -1 0 1 2 3
E(V)
I(A)
