calibration parameters are factory set. Other external systems can be used but are not pre-
configured in EC-Lab. If you would like another device to be pre-configured, please contact
Bio-Logic and it will be added onto the device list upon request. Note that the calibration
parameters for the pre-configured devices cannot be modified by the user .If you would like to
configure a device not in the list, select “Other” in the Device Name and configure the “Analog
OUT” window to define the control parameters. Click on the “Apply” button to validate the
settings. Note that this menu can be activated without any rotating electrode unit, but it will
only have effects on electrochemical instruments equipped with a rotating system.
6.4.3 Temperature control
Temperature control is possible with the auxiliary output voltage of the instrument. Several
thermostats have already been configured such as the Julabo series and the Haake Phoenix
series.

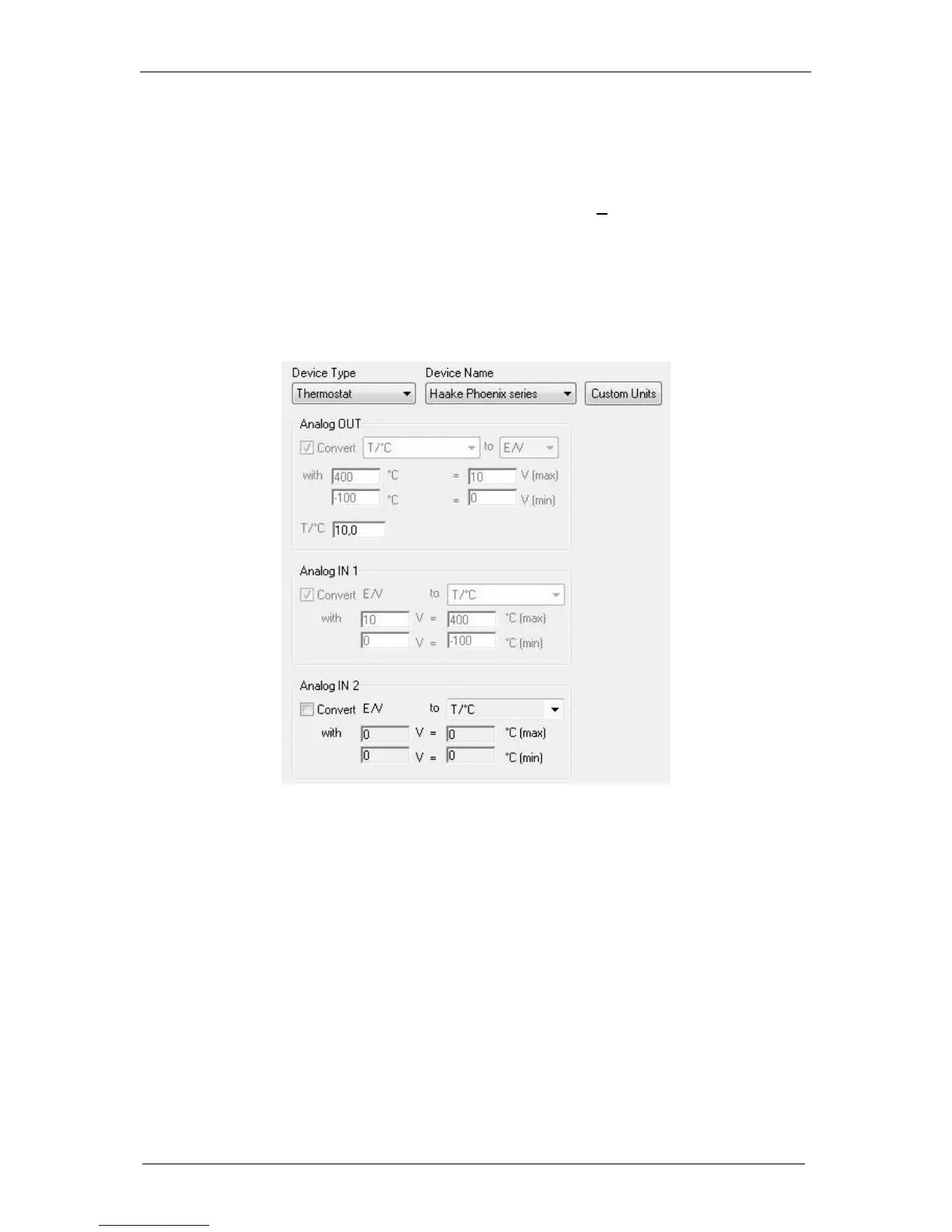

Fig. 88: Haake Phoenix series thermostat control configuration.
The user can configure other thermostats to either record temperatures (Analog In) or to both
control (Analog Out) and record (Analog In) temperature.
6.4.4 Electrochemical Quartz Crystal Microbalance coupling
The SEIKO EG&G QCM 922 quartz crystal microbalance can be coupled with our potentiostat
/ galvanostat to record both the frequency variation and the resistance variation. The
configuration for the EQCM coupling is described in the following figure:
