Detailed Operating Instructions
Bio-Plex Pro and Bio-Plex Pro II Wash Stations 41

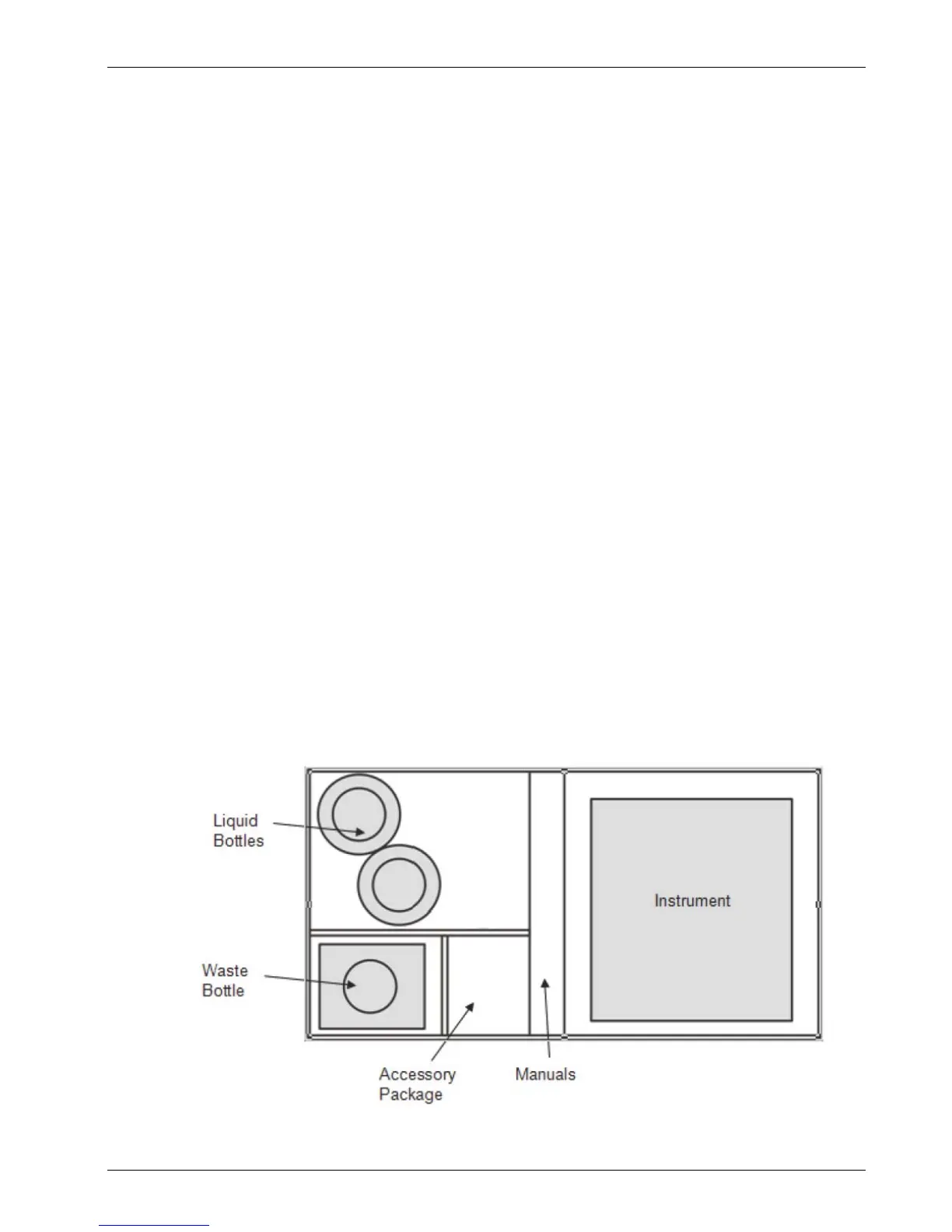

The Bio-Plex Pro instrument is shipped in one carton, which contains the following
important components:
1. Standard plate carrier (installed in instrument)
2. Magnetic carrier
3. A small bag containing
a. USB cable
b. 2 cleaning needles
4. 2 liquid bottles (2.5 L) with lids
5. 1 waste bottle (5 L) with lid
6. Bundle of 2 tubes for connecting to the liquid bottles
(5mm outer diameter; 3mm inner diameter)
7. Main power cable
8. Instrument manual
9. CD with software and support material
10. 10 Bio-Plex Pro flat-bottom plates
The Bio-Plex Pro II is also shipped in one carton, and contains everything from the
above list, plus:
1. Located in the same small bag indicated in # 3 above. Not needed for Bio-Plex
Pro
a. Six small screws (two screws are required to attach the Bio-Plex Pro II
mounting bracket)
b. A Hex Tool.
2. A vacuum plate carrier
3. Vacuum tubing mounting bracket (see page 13)
