5.5. ELECTRICAL CONNECTION
The pellet boiler is connected to the mains. The boiler power supply cable is 3m long, white
and marked with the label "220 V". Other cables are connected to IQ2 advanced controller. (See
separate IQ2 instructions) If the power cord is damaged and needs to be replaced, call our
service department.
Before starting the electrical connection, make sure that:
The characteristics of the electrical installation are in accordance with the data on the
combustion device.
The chimney is properly earthed in accordance with applicable local regulations and re-
quirements. (Grounding is legally specied).
Under no circumstances should the power cord exceed 80°C. If you want to connect the
boiler directly to the mains, it is necessary to insert a double Installation circuit breaker 1L
+ N, suitable for the required electrical voltage (10A) and in accordance with applicable
local regulations. Both phase L and zero N must be interrupted. The circuit breaker must
be easily accessible.

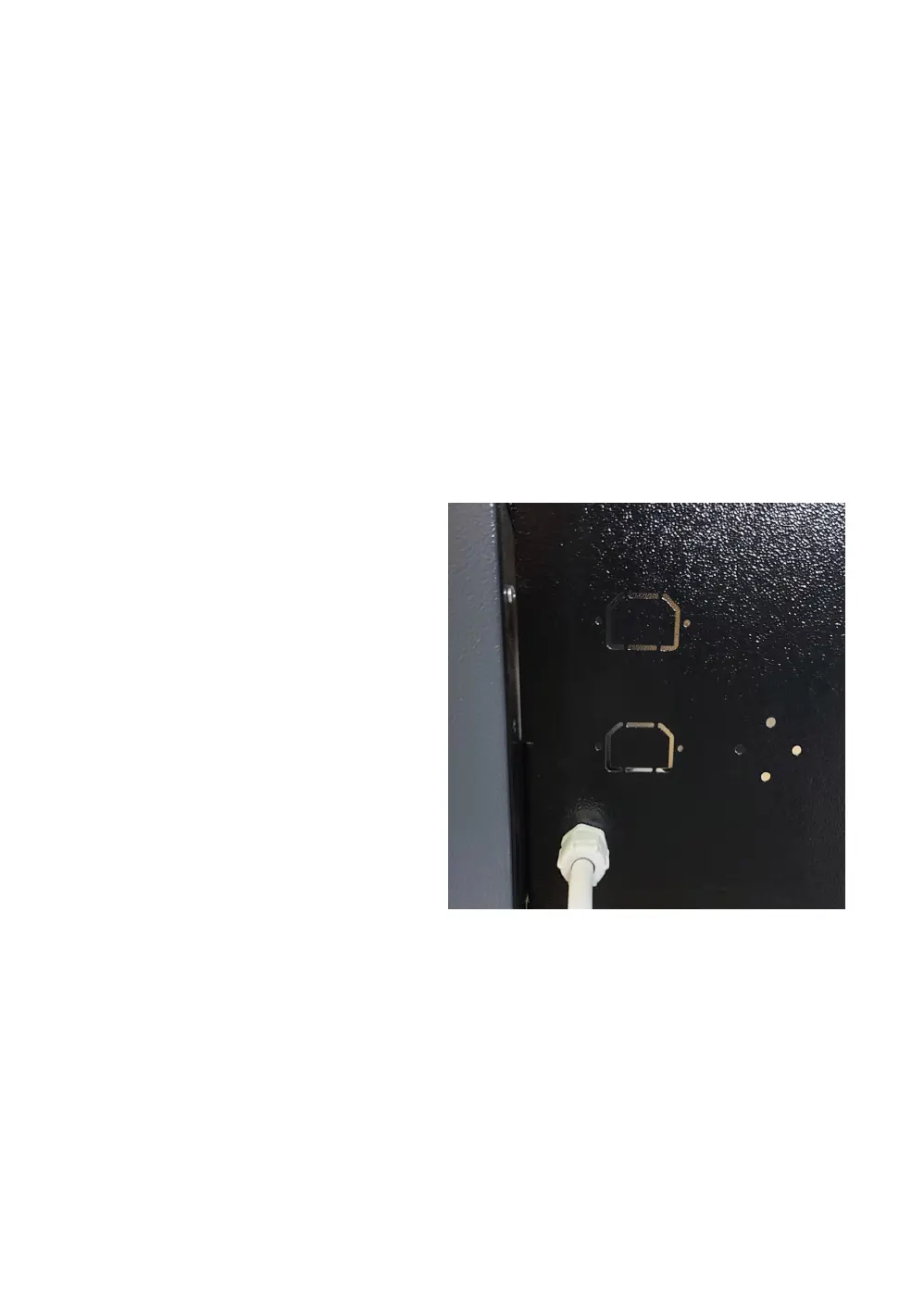

White cable - Boiler power supply (220 V)
Figure 5.
If the power cord is damaged, it must be
replaced. It can only be replaced by an au-
thorized person.
The electrical connection must be easily
accessible even after the installation of the
pellet boiler.
