7.5 Activate/deactivate the operating push button
Pressing button and X and X at the same time
(at least 5 seconds) activates or deactivates the push button.
english
75

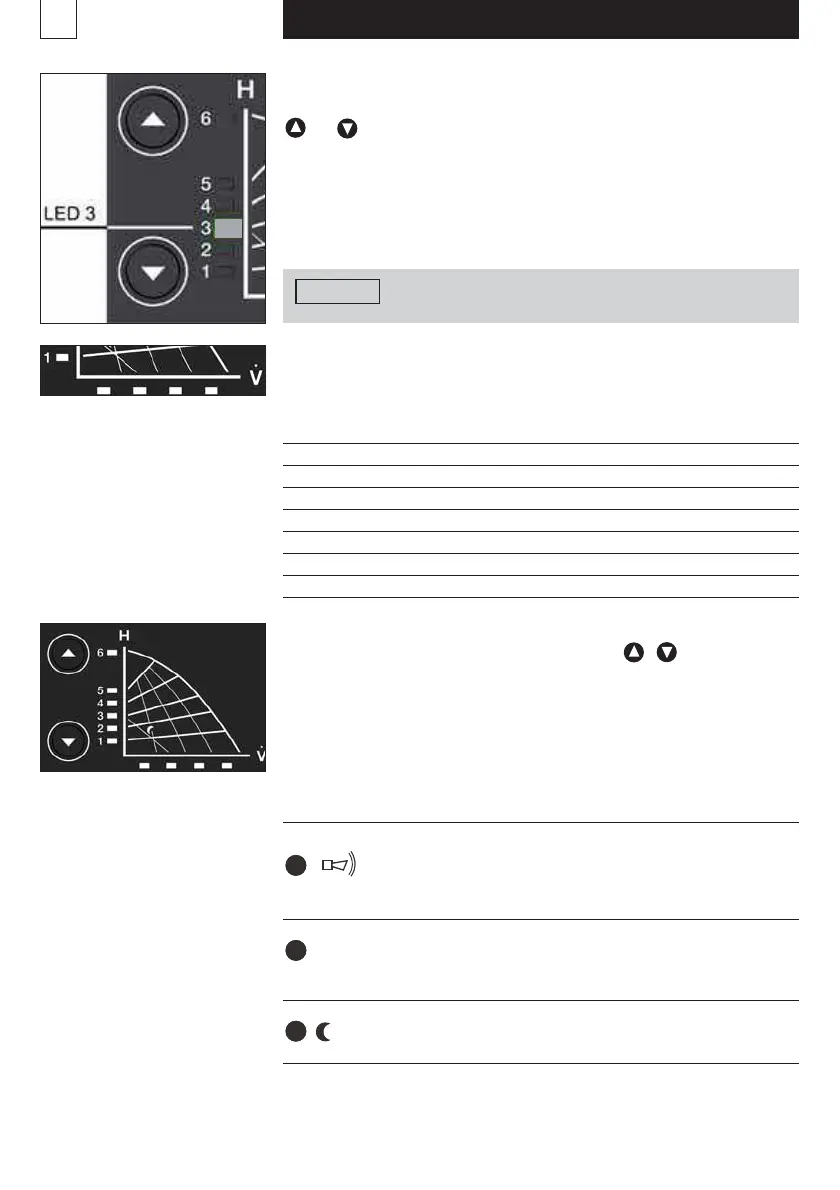

7.2 Setting the delivery head (A2)
The setpoint of the pump can be adjusted by pressing key
or
e.g.
LED 3 lights (yellow)
characteristic curve 3
LEDs 3 and 4 light:
characteristic curve between 3 and 4
7.3 Display of current delivery (LED V)
V = 25, 50, 75, 100%
7.6 Further illuminated symbol (A3)
Fault
Lights red / flashing red
Fault acknowledgement:
fault messages can be acknowledged
by briefly pressing any key.
If individual radiators do not become sufficiently hot,
set the next highest characteristic curve.
Warning
External drive
Lights yellow
– Auxiliary modules in connection box
– Remote control
Ext
Minimal speed
Illuminates yellow if the minimal speed is activated.
See Section 10.4
.
.
7.4 Feed height and output
H
max
[m] V
max
[m
3
/h]
A 402 V2, A 402-1 V2, AW 402-1 V2 10,7 18,2
A 501 V2 6,0 22
A 502 V2 12,0 34
A 651 V2, A 651-1 V2 6,0 45
A 652 V2 12,1 52
A 801 V2 12,1 52
.
