4.7 Permissible medium temperature
961951_00
2 - 110°C
15 - 110°C
15 - 110°C
Position Elektronik
PrimAX 32-x 180
Temperaturgrenzen
CH-3110 Münsingen
Biral AG
Massstab
Zeichnungsnummer
1:3.5
III
Datum Änd.Index Visum
Ersetzt durch: Ersatz für:
961951
Änd.Index
Freigabe
geprüft
gezeichnet 18.08.2015
PDM_Nr TD-0027291
00
ts

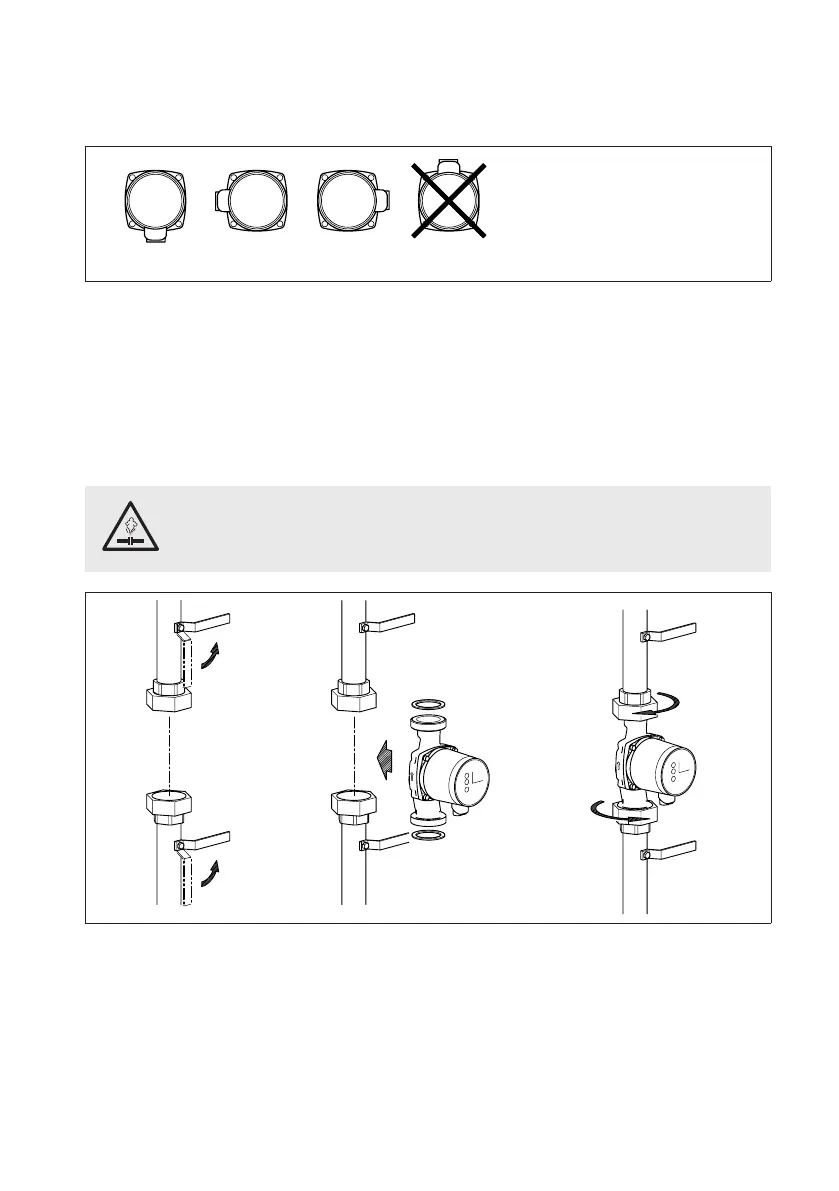

Installation position in heating systems.
In heating systems with a medium temperature of +15 to +110 °C, the pump head can be set at
positions 3 o’clock, 6 o’clock or 9 o’clock.
Installation position in air-conditioning systems and cold water systems.
In air-conditioning and cold water systems, the pump head must be set in such a way that the
connector points downwards (6 o’clock).
4.8 Install pump in the equipment
Warning
Risk of injury from escaping steam.
961932_00-A
961932_00-B
961932_00-C
ts
00
TD-0030092 PDM_Nr
12.05.2015 gezeichnet
geprüft
Freigabe
Änd.Index
961932
1:3
Zeichnungsnummer
Massstab
Biral AG
CH-3110 Münsingen
für BA
PrimAX 32-x 180
Pumpe in Anlage montieren
Close the shut-off valve and ensure that the equipment is without pressure when installing the
pump.
Install the pump in the pipe with seals.
