4.10 Heat insulation
Note
Heat is lost via the pump casing and pipes.
These heat losses should be limited to a minimum.
Heat losses can be reduced by insulating the pump casing and pipes.
For PrimAX, heat insulation shells are included in the delivery.
961933_01
961933_01
02.05.2016
sle 01
sle
ts
sle
02.05.2016
02.05.2016
01
TD-0030097 PDM_Nr
13.05.2015 gezeichnet
geprüft
Freigabe
Änd.Index
961933
1:3
Zeichnungsnummer
Massstab
Biral AG
CH-3110 Münsingen
für BA
PrimAX 32-x 180
Pumpe dämmen
961933_01
961933_01
02.05.2016
sle 01
sle
ts
sle
02.05.2016
02.05.2016
01
TD-0030097 PDM_Nr
13.05.2015 gezeichnet
geprüft
Freigabe
Änd.Index
961933
1:3
Zeichnungsnummer
Massstab
Biral AG
CH-3110 Münsingen
für BA
PrimAX 32-x 180
Pumpe dämmen

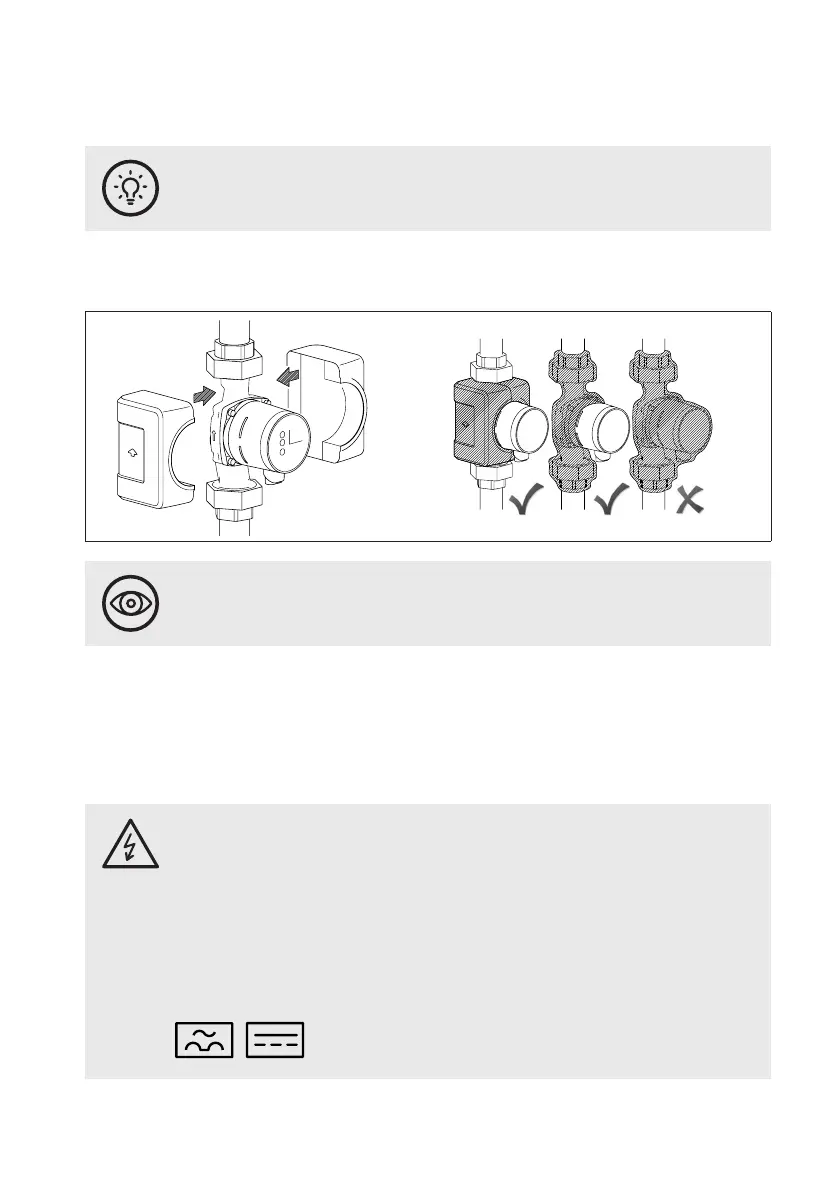

Attention
➀ Never cover the frequency converter or the control panel with insulation
5 Electrical connection
Electrical connection should be carried out in accordance with the local regulations. It is vital to
ensure that the voltage and frequency indicated on the nameplate are compatible with the mains
supply available.
Warning
Before carrying out any electrical connection work, the voltage supply must be
switched off. The pump must be connected to an external network switch with a
contact opening on all poles of minimum 3 mm.
The protection against indirect contact can be achieved by earthing or potential
equalisation. If the pump is connected to an electrical installation, which has an FI
circuit breaker for additional protection, the FI circuit breaker must trigger with a
pulsing direct current component if earthing fault currents arise.
The FI circuit breaker must be marked with the following symbol
