Biral PrimAX RED Series User Manual

english
|
89
6 Start-up
6.1 General
Before start-up, it is vital that the unit is filled with the delivery medium and ventilated. Close to the
inlet nozzles of the pump, it should also be the required minimum intake pressure. The system
can be ventilated via the pump. The pump itself is self-ventilating.
6.2 Operational control
After switching on the power supply the pump must start up independently: the Biral impeller turns
and flashes green.
Watt display
LED 4
Status display
LED 3
Status
LED 1
LED 2
LED 3
LED 4
A2
A1
961935_00
PP1
LED 4 LED 3
LED 4 LED 3
Weitere Bilder siehe 961971
Bedienfeld
PrimAX
für BA
CH-3110 Münsingen
Biral AG
Massstab
Zeichnungsnummer
Datum Änd.Index Visum
Ersetzt durch: Ersatz für:
961935
Änd.Index
Freigabe
geprüft
gezeichnet 18.05.2015
PDM_Nr TD-0030188
00
11.09.2015
11.09.2015
ts
ts
ts
[W] OFF Pump running
7 Settings

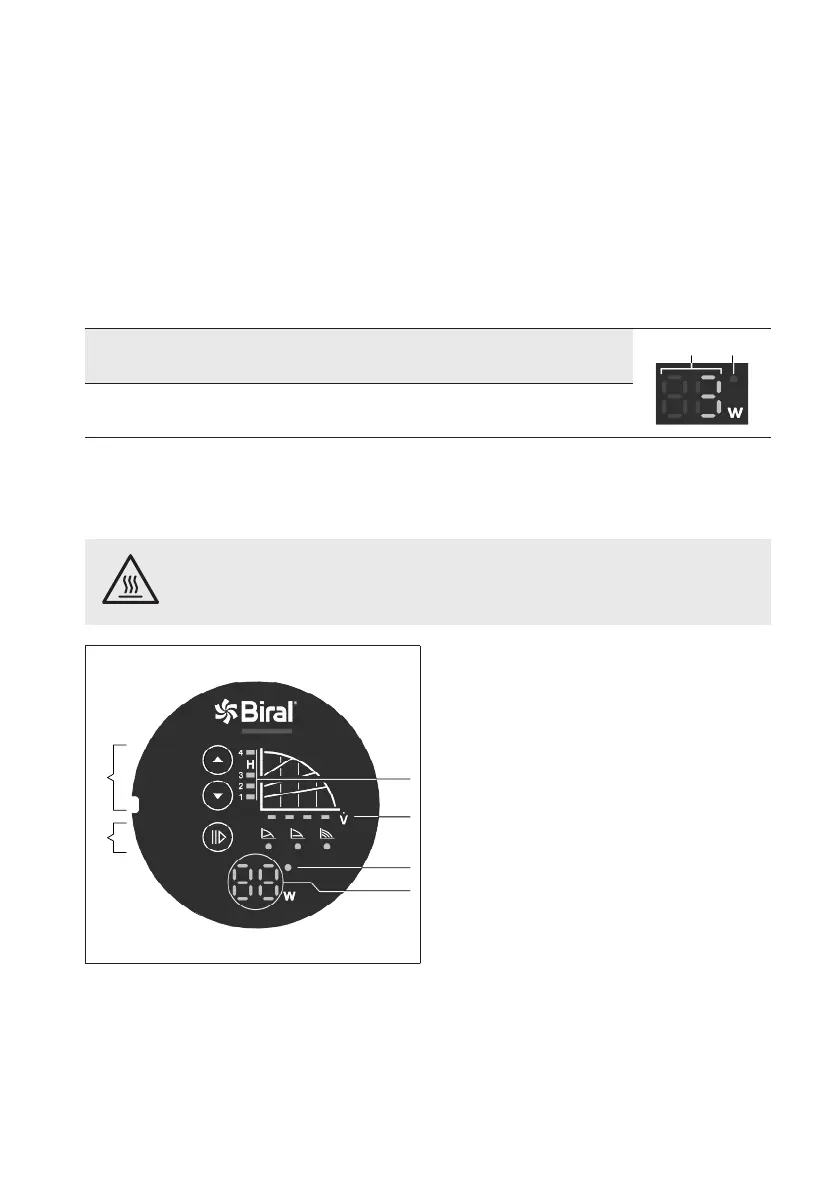

7.1 Control panel
Warning
There is a risk of burning! For high media temperatures the pump may become so
hot that only the keys may be touched
LED 1
LED 2
LED 3
LED 4
A2
A1
961935_00
PP1
LED 4 LED 3
LED 4 LED 3
Weitere Bilder siehe 961971
Bedienfeld
PrimAX
für BA
CH-3110 Münsingen
Biral AG
Massstab
Zeichnungsnummer
Datum Änd.Index Visum
Ersetzt durch: Ersatz für:
961935
Änd.Index
Freigabe
geprüft
gezeichnet 18.05.2015
PDM_Nr TD-0030188
00
11.09.2015
11.09.2015
ts
ts
ts
A1 Control panel for setting the type of
control.
A2 Keys for setting delivery height and
delivery flow.
LED 1 Display control curve
characteristics set (phase)
LED 2 Display the curent delivery height
V
•
(25 … 100%)
LED 3 Status display
LED 4 Watt display
