86 | english
The pump does not require any external motor protection. The motor has integrated over temper-
ature protection, which offers safeguarding against overloading that appears slowly and against
blocking according to IEC 34-11: TP 211.
5.1 Supply voltage
1×230V ±10%, 50 / 60 Hz, PE
The voltage tolerances are set for equalising voltage 0uctuations on the mains. They are not for
operating pumps with voltages other than those shown on the nameplate.
5.2 Connection of the power supply
The pump must be protected on-site (10 A, slow) and must be connected to an external mains
switch. All cables used must have a heat resistance of up to 85 °C. They must not be in contact
with the pipe or the pump and motor casing.
All cables must be connected in accordance with EN 60204-1 and EN 50174-2: 2000. The electrical
connection must be made as indicated on the nameplate.
PrimAX Ratet current [A] Power P
1
[W]
PrimAX xx-3 0.03 – 0.12 2 – 15
PrimAX xx-4 0.03 – 0.15 3 – 18
PrimAX xx-6 0.03 – 0.27 3 – 34
PrimAX xx-8 0.03 – 0.41 3 – 50

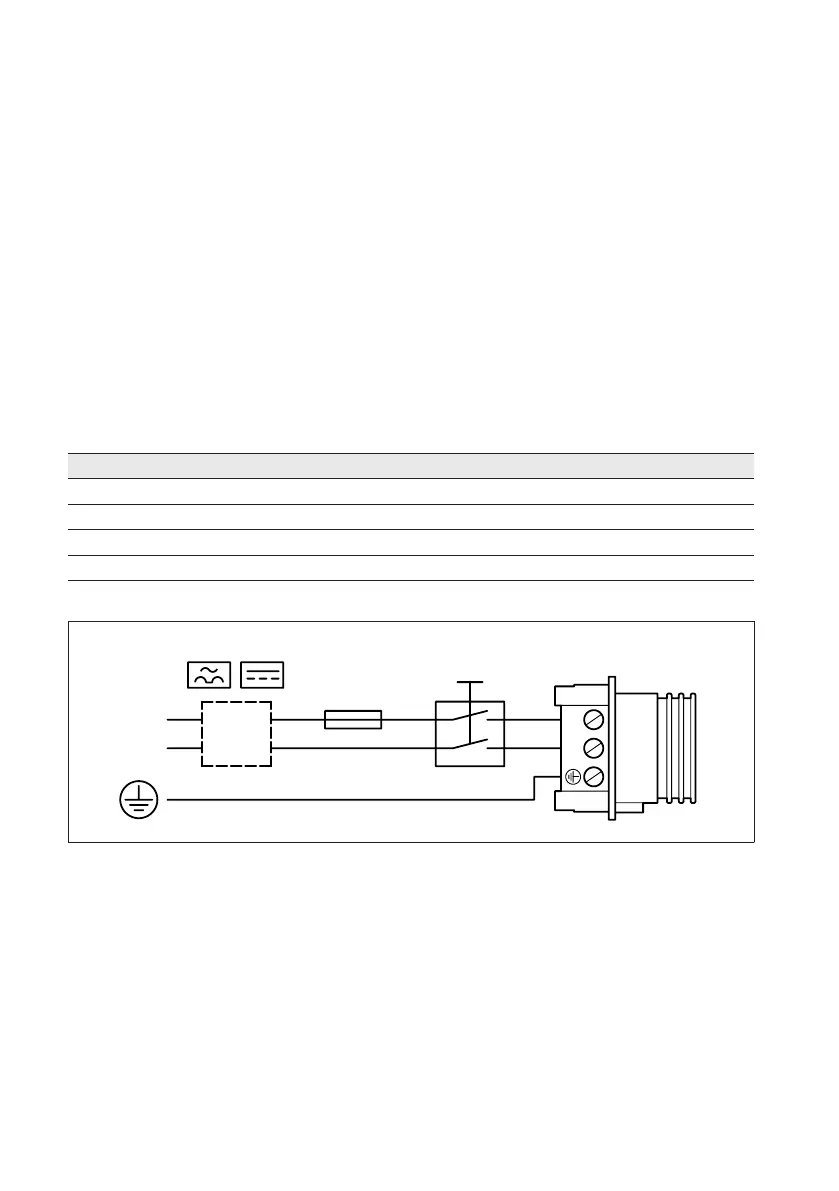

Example of a typical mains connection, 1x230V ±10%, 50 / 60Hz
FI
1
2
N
L
L
N
961807_01
2 Externer Schalter
1 Sicherung (min.10A, träge)
Legende:
Netzanschluss 1x230V
ModulA
Alpha-Stecker BA
CH-3110 Münsingen
Biral AG
Massstab
Zeichnungsnummer
1:1
III
Datum
Änd.Index
Visum
Ersetzt durch:
Ersatz für:
961807
Änd.Index
Freigabe
geprüft
gezeichnet
16.10.2014
PDM_Nr
TD-0026642
01
24.02.2015
24.02.2015
ts
ts
ts
01
ts
24.02.2015
Fuse
(10A, inert)
External Switch
