Biral PrimAX RED Series User Manual

80 | english
961952_00
Anforderung Fördermedium
PrimAX 32-x 180
für BA
CH-3110 Münsingen
Biral AG
Massstab
Zeichnungsnummer
1:3
III
Datum Änd.Index Visum
Ersetzt durch: Ersatz für:
961952
Änd.Index
Freigabe
geprüft
gezeichnet 19.08.2015
PDM_Nr TD-0027298
00
ts

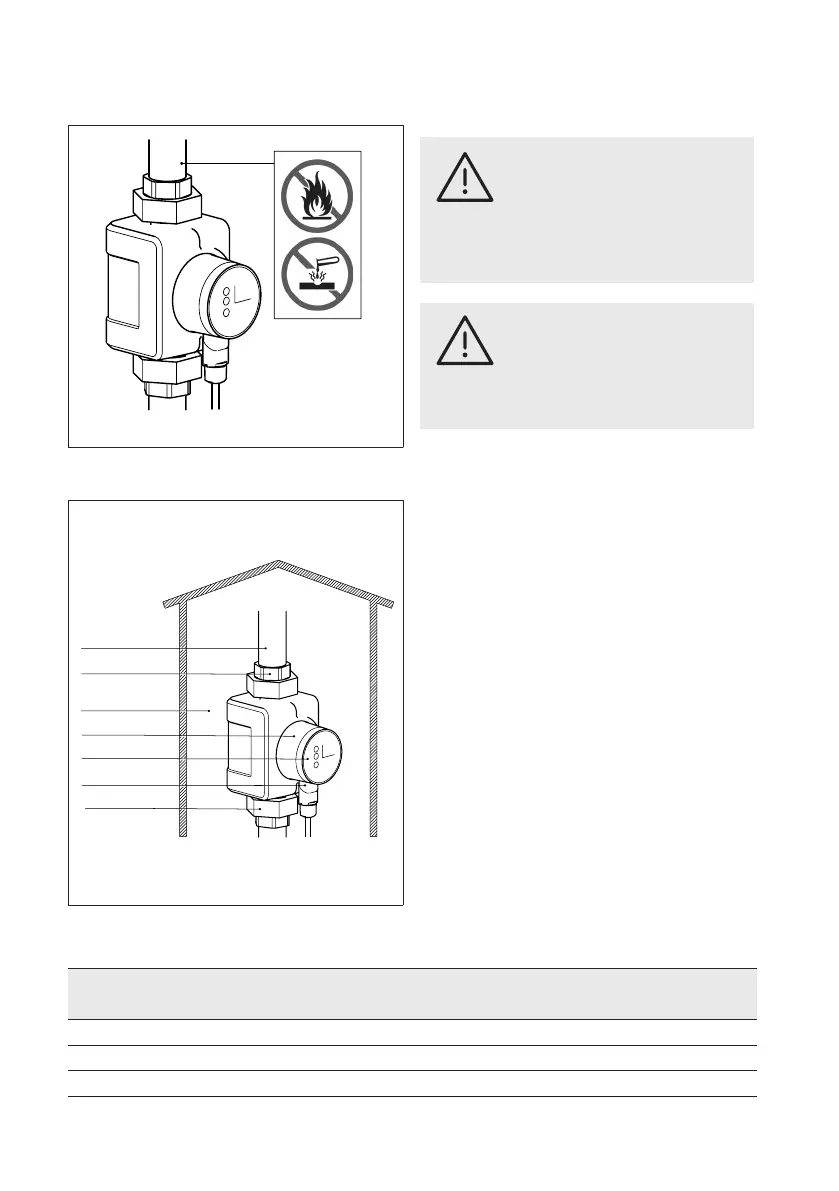

Warning ➀
No combustible or explosive liq-
uids must be transported. The
liquid must not contain any solid
matter, fibres or mineral oils.
Warning ➁
The pump may not be used to
deliver aggressive liquids such
as acids or seawater.
3.3 Operating conditions
961936_00
max. 10 bar
min. +0°C
max. +40°C
IP 44
50/60 Hz
min. +2°C
max. +110°C
1~230V
< 43 dB(A)
Verwendungszweck
PrimAX 32-x 180
für BA
CH-3110 Münsingen
Biral AG
Massstab
Zeichnungsnummer
1:3
III
Datum Änd.Index Visum
Ersetzt durch: Ersatz für:
961936
Änd.Index
Freigabe
geprüft
gezeichnet 18.05.2015
PDM_Nr TD-0030190
00
ts
Medium temperature:
+2 °C to +110 °C
Operating pressure
Maximum 10 bar (1 MPa)
Ambient temperature:
0 °C to +40 °C
Protection type
IP 44
Frequency
50/60 Hz
Voltage
1~230 V
Sound pressure level
The sound pressure level of the pump is below
43 dB(A).
Relative humidity
Maximum 95%
Inflow pressure
Minimum operating pressure at the pump suction nozzles (inflow pressure) at 500 m above sea.
Medium temperature Minimum inflow pressure
[bar] [m] [MPa]
≤ +75 °C 0.05 0.5 0.005
+90 °C 0.28 2.8 0.028
+110 °C 1.08 10.8 0.10 8
