KW-231-1 17

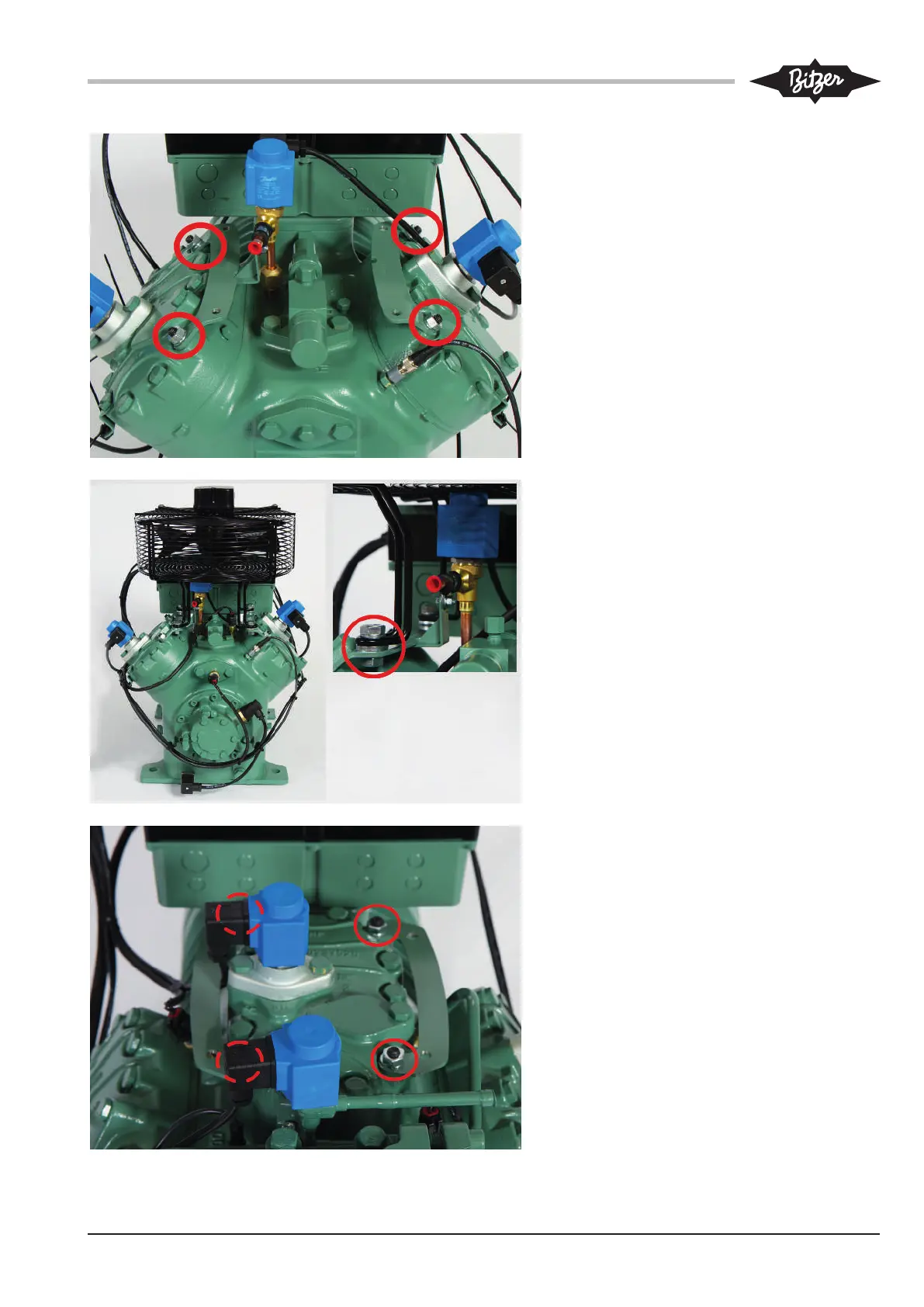

4-cylinder compressors 4JE-13Y .. 4FE-35(Y):
• Loosen the relevant screws on the cylinder
head and replace them with the enclosed
threaded bolts.
• Then fit the fixing plates on the threaded bolts
and fasten them using spring washers and
nuts (tightening torque 80 Nm).
• Use the enclosed spacer washers, screws
and nuts (see small figure) to fasten the fan
feet of the pre-assembled fan.
6-cylinder compressors 6JE-22Y .. 6FE-50(Y):
• Loosen the relevant screws on the cylinder
head and replace them with the enclosed
threaded bolts.
• Then fit the fixing plates on the threaded bolts
and fasten them using spring washers and
nuts (tightening torque 80 Nm).
