KW-231-1 13
• Snap the connector into place and guide the
cable to the compressor module.

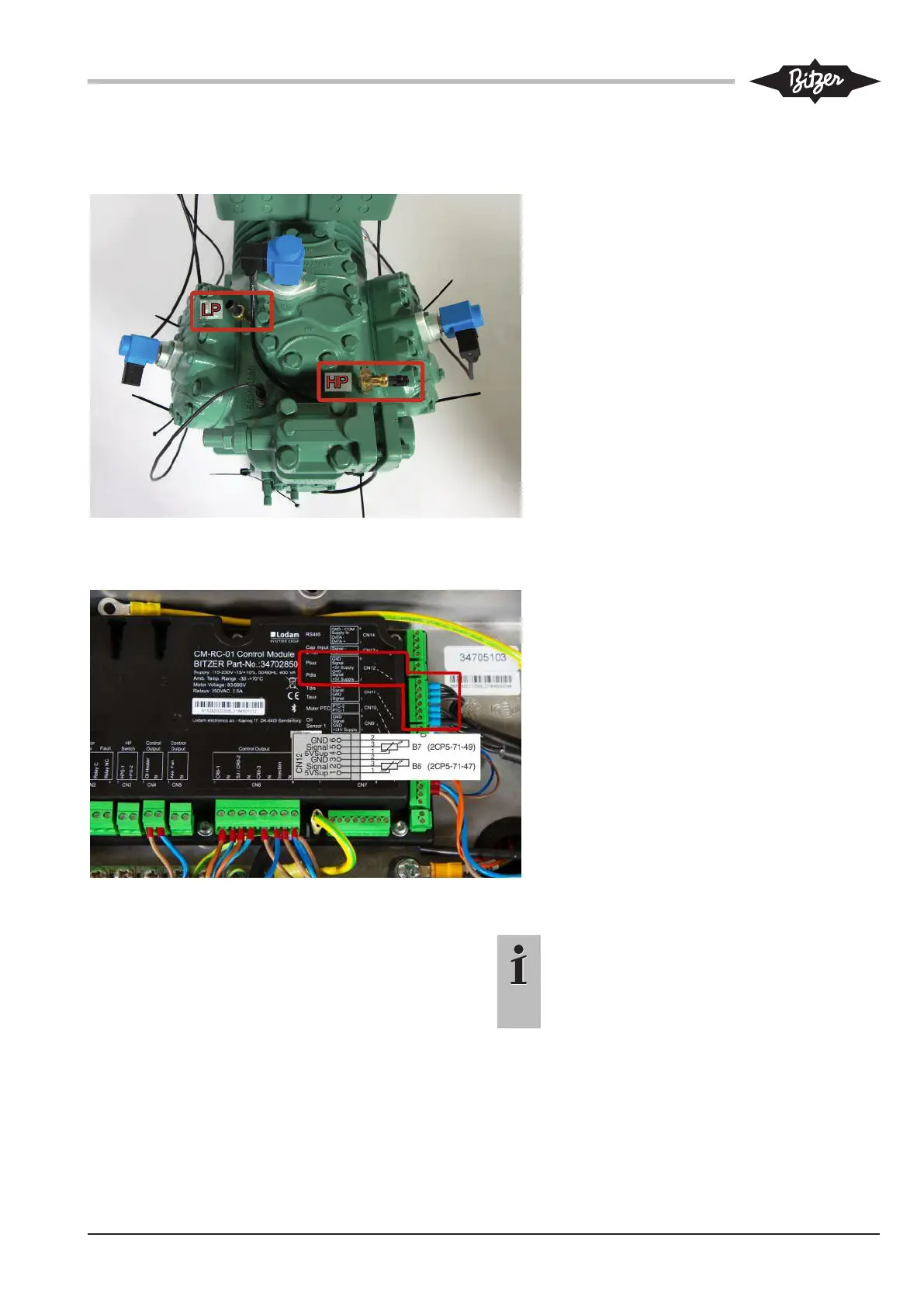

6-cylinder compressors 6JE-22Y .. 6FE-50(Y):
• Remove the sealing plugs from the connect-
ors marked by rectangles and clean the
threaded bores.
• Screw the enclosed screwed nipple (low pres-
sure transmitter) resp. T-piece (high pressure
transmitter) with Schrader valves into the
threaded bores.
• Then screw the high pressure transmitter
(2CP5-71-47) into place at the HP position
and the low pressure transmitter
(2CP5-71-49) at the LP position (tightening
torque 35-40 Nm). Do not insert a blanking
plate between screwed nipple and pressure
transmitter, since this will prevent the
Schrader valve from opening!
• Snap the connector into place and guide the
cable to the compressor module.
• Connect the cable of the high pressure trans-
mitter to terminal strip CN12, terminals 1, 2, 3
(designation "pdis") on the compressor mod-
ule.
• Connect the cable of the low pressure trans-
mitter to terminal strip CN12, terminals 4, 5, 6
(designation "psuc") on the compressor mod-
ule.
• Pay attention to the correct cable connec-
tions!
If no additional extension kits are mounted:
• Proceed with the other electrical connections on the
CM-RC-01 (see chapter Further electrical connec-
tions on the CM-RC-01, page 9).
• Lay the cables and close the cable ties (see chapter
Laying the cables, page 9).
• Screw the protective earth conductor onto the ter-
minal box cover and attach the cover to the module
housing (see chapter Screwing the cover onto the
module housing, page 10).
4.3 Mounting the "Liquid injection" extension kit
Information
Use an open ring spanner for mounting the in-
jection nozzle to the injection line!
For further information, see Technical Informa-
tion KT-130.
After mounting new components such as discharge gas
temperature sensor, injection nozzle or injection valve:
