Bitzer CM-RC-01 Maintenance Instructions

KW-231-18

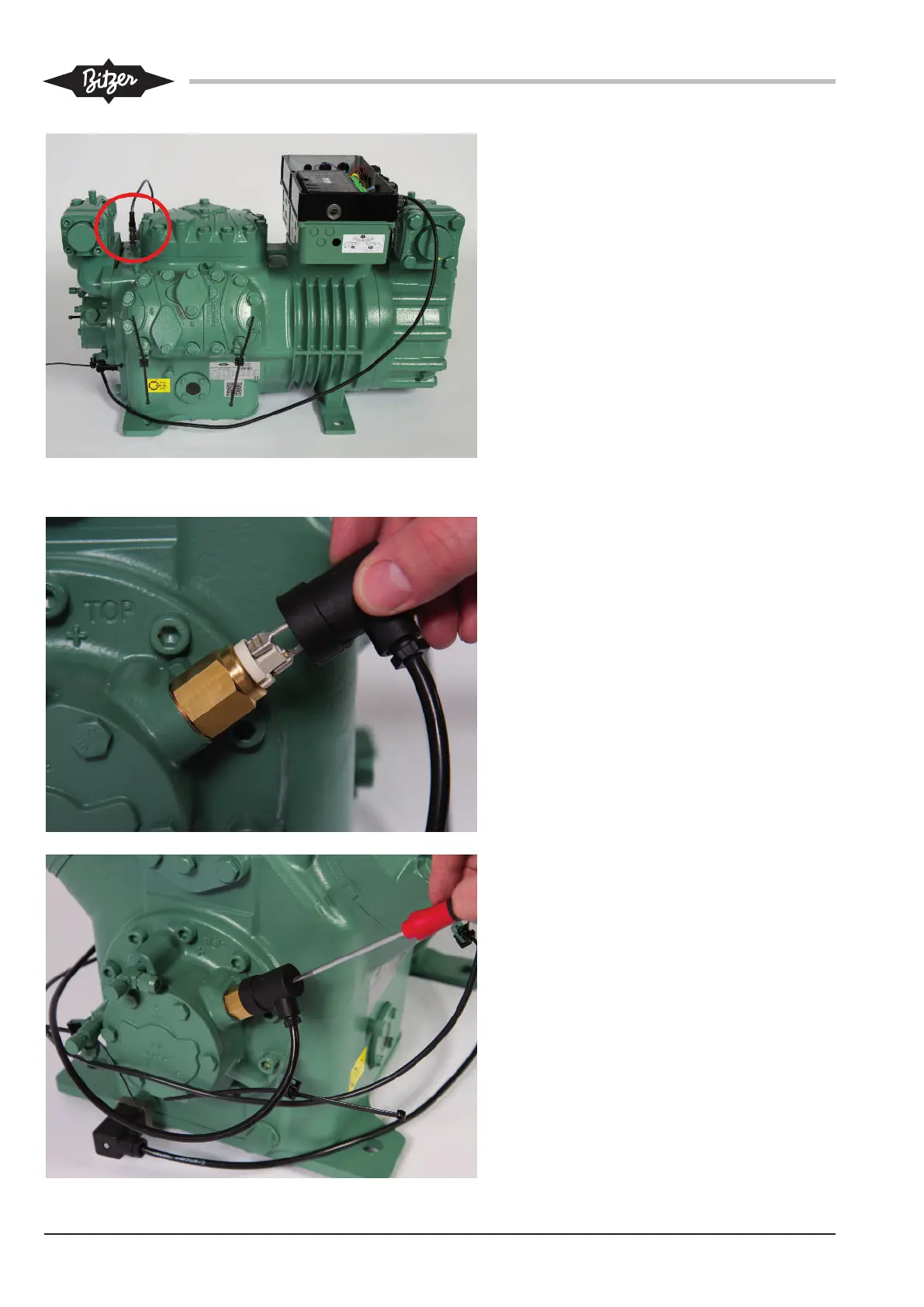

6-cylinder compressors 6JE-22Y .. 6FE-50(Y):
• Remove the sealing plug from the connector
marked by a circle and clean the threaded
bore.
• Then screw the discharge gas temperature
sensor in (tightening torque 35-40 Nm) and
tighten the connector by hand.
• Guide the cable of the discharge gas temper-
ature sensor to the compressor module as
shown in the figure.
3.5 Mounting the DP1 oil monitoring device
• Unscrew the plug or an existing oil sensor
from the bearing cover and clean the
threaded bore.
• Screw the oil monitoring device with O-ring
and metal gasket into the bearing cover (tight-
ening torque 75 Nm). Carefully mount the O-
ring!
• Connect the cable clip to the DP1 sensor in-
dependently of the polarity.
• Attach the connection cap and tighten the
screw (position and downward cable routing,
see figure).
Next, any optional extension kits can be moun-
ted see chapter Mounting the optional CM-
RC-01 extension kits, page 10).
