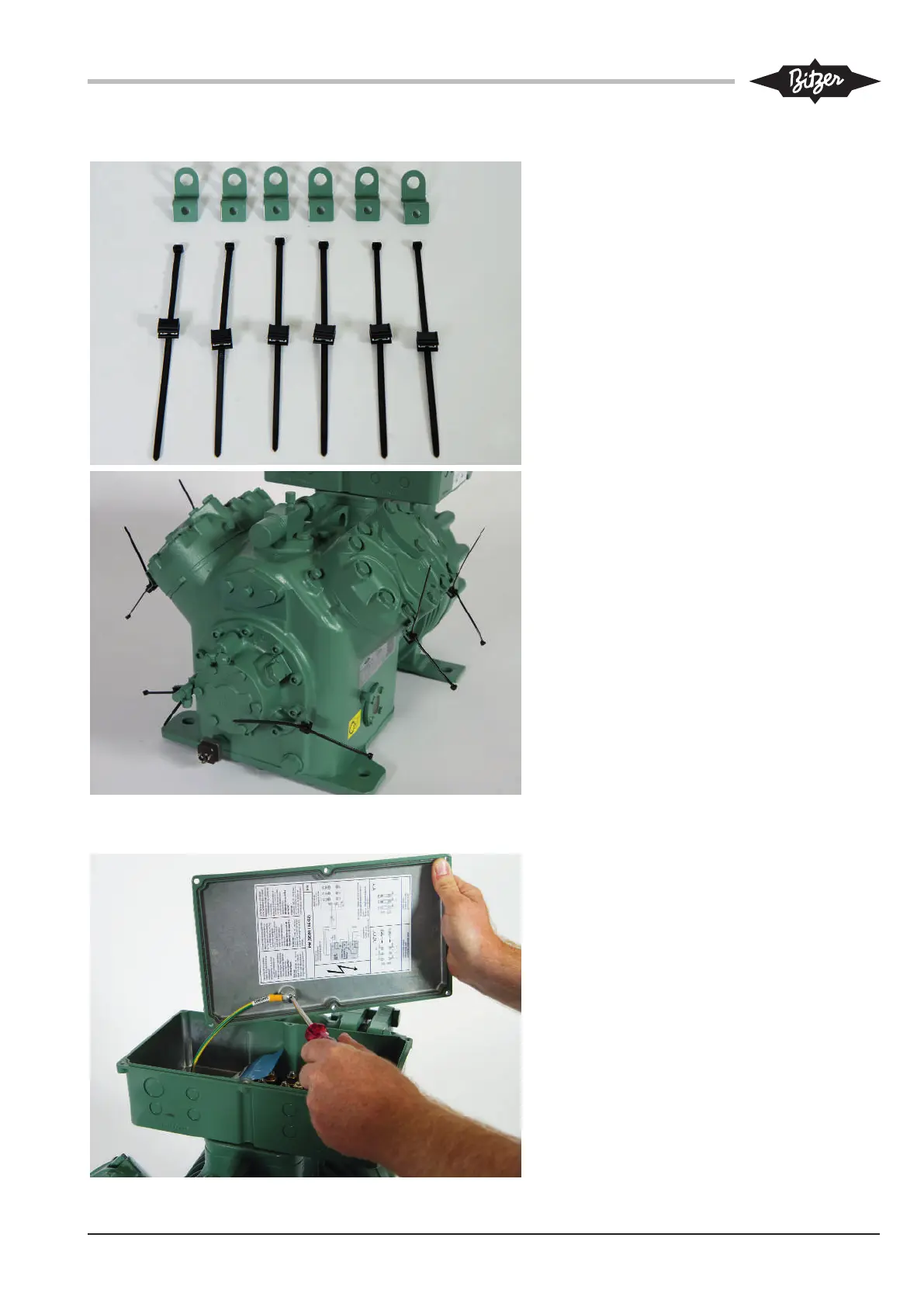

3.1 Mounting the cable holders
4JE-13Y .. 6FE-50(Y):
Mount 2 cable holders each to the outer cylinder
heads and to the bearing cover.
• To this end, loosen the corresponding screws
on cylinder head and bearing cover, insert the
screws again with cable holders and tighten
them (tightening torque 80 Nm).
• Fasten the plastic clip to the cable holder and
insert a cable tie.
3.2 Removing the SE-B* motor protection device
• Loosen the screws on the cover of the com-
pressor's terminal box and remove the cover.
• Then unscrew the protective earth conductor
from the terminal box cover.
