LOAD
CURRENT
LOAD INPUT
VOLTAGE
I
V
SLOPE
RESISTANCE
SETTING

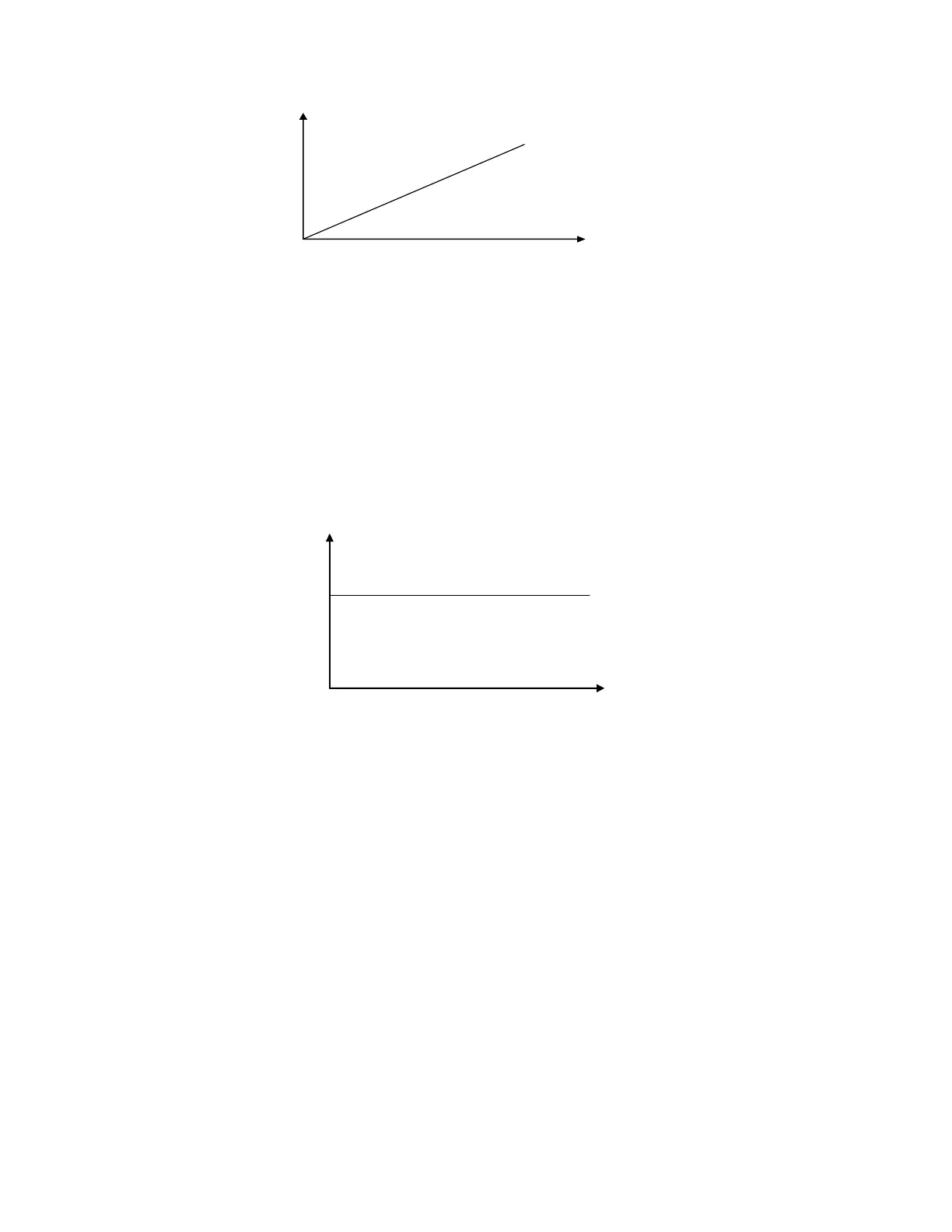

CONSTANT RESISTANCE MODE
Constant Voltage (CV) Mode
In this mode, the electronic load will attempt to sink enough current to control the
source voltage to the programmed value. The module acts as a shunt voltage
regulator when operating in the CV mode. The CV mode can be set at the front panel.
The CV mode parameters are described in the following paragraphs.
LOAD CURRENT
LOAD INPUT
VOLTAGE
I
V
VOLT
SETTING
CONSTANT VOLTAGE MODE
Constant Power (CW) Mode
In this mode, the electronic loads will consumption power accordance with the
programmed value regardless of the input voltage. The CW mode can be set with
front panel keys. The CW mode parameters are discussed in the following
paragraphs.
To Next Page
