17
1 1000 steps
2
500 steps
500 steps
4 250 steps 250 steps 250 steps 250 steps
8 120
steps
120
steps
120
steps
120
steps
120
steps
120
steps
120
steps
120
steps
When receiving one trigger signal, it will start the list operation until receiving another trigger
signal or finish the List operation.
Trigger

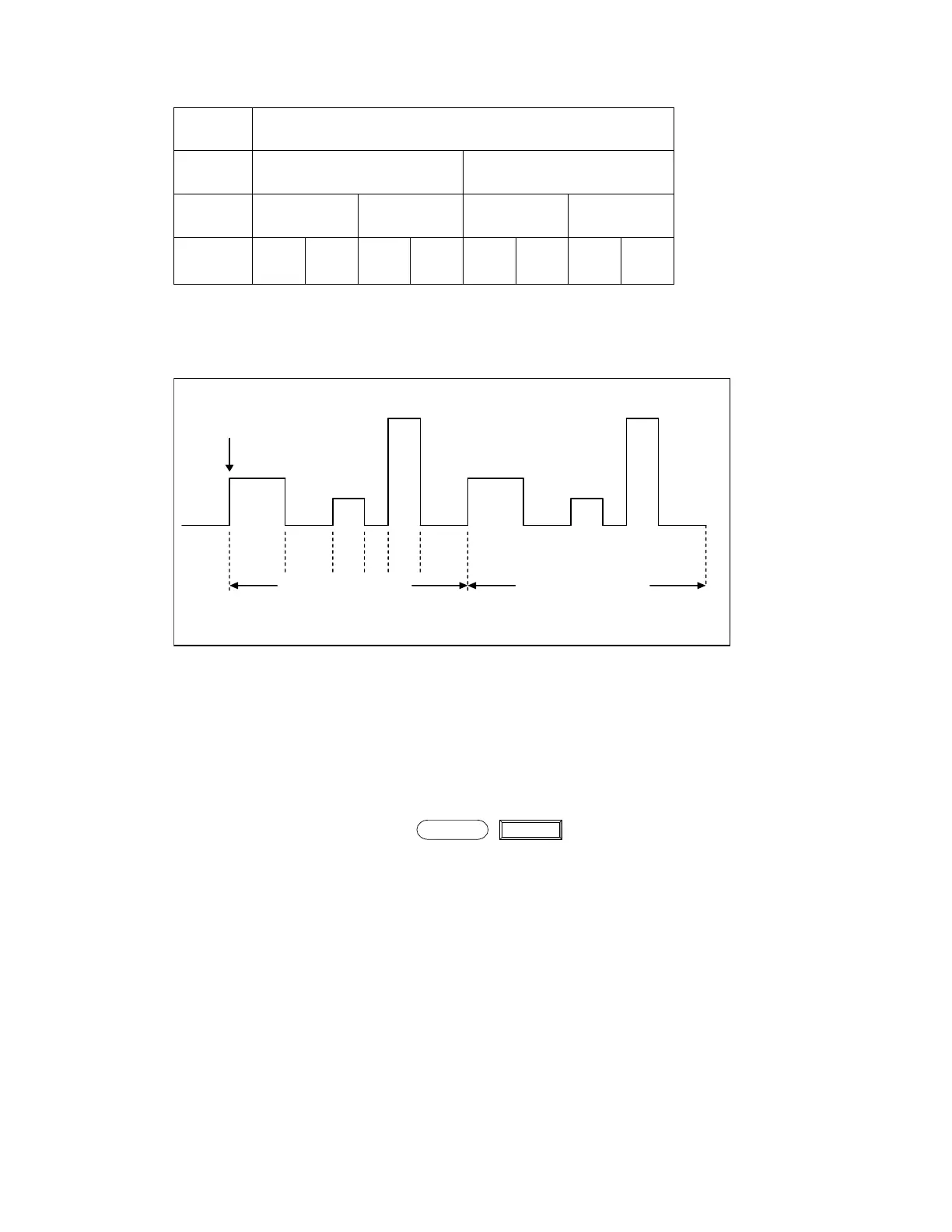

10 2 3 4 5
List count=1 List count=2
List sequence
Triggered Operation
The electronic load has various triggering modes to allow synchronization with other
test equipment or events. Such as:
Keypad triggering mode: Press
Shift
+
Trigger
to trigger the electronic load.
TTL triggering mode: Send a high pulse with a constant time more than 5m Sec to
the trigger terminals in rear panel to trigger the electronic load.
Command triggering mode: Send triggering command to the electronic load via the
serial port.
