Pulse Transient Operation
In this mode, generates a transient pulse of programmable width when pulsed
transient operation is in effect.
For example: When load receiving one trigger signal, it will switch to 10A current value, and
taking 10mS to return the current value of 5A.
10A
5A

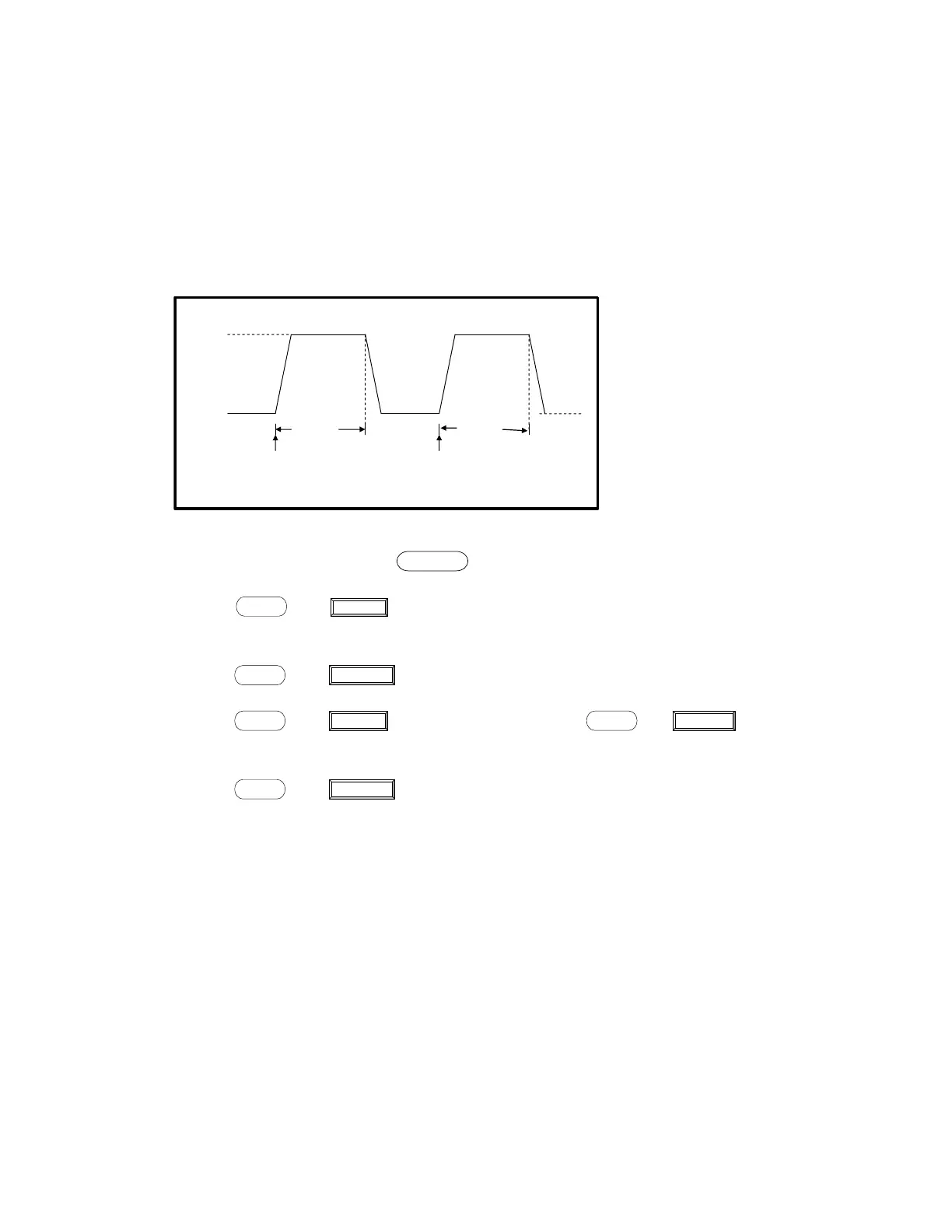

Pulsed Transient Operation
10ms
TWD
10ms
TWD
TRIG TRIG
Action
1. On the Function keypad, press
Input on/off
button to turn off the load input.
2. Press
Shift
and
S-Tran
, set LEVER A=5A, LEVER B=10A, WIDTH B=10mS,
Transition mode is PULSE .
3. Press
Shift
and
Tran
to activate the transient mode.
4. Press
Shift
and
Trigger
to start another pulse. Press
Shift
and
Trigger
, get
more pulse.
5. Press
Shift
and
Tran
again to stop the transient operation.
Toggled Transient Operation
In this mode, after transition operation start, Load could change the input
between the main level and the transient level when toggled transient
operation is in effect.
For example:
When Load receives one trigger signal, Load current will switch between 5A and
10A.
