BK Precision 8500 Series User Manual

6

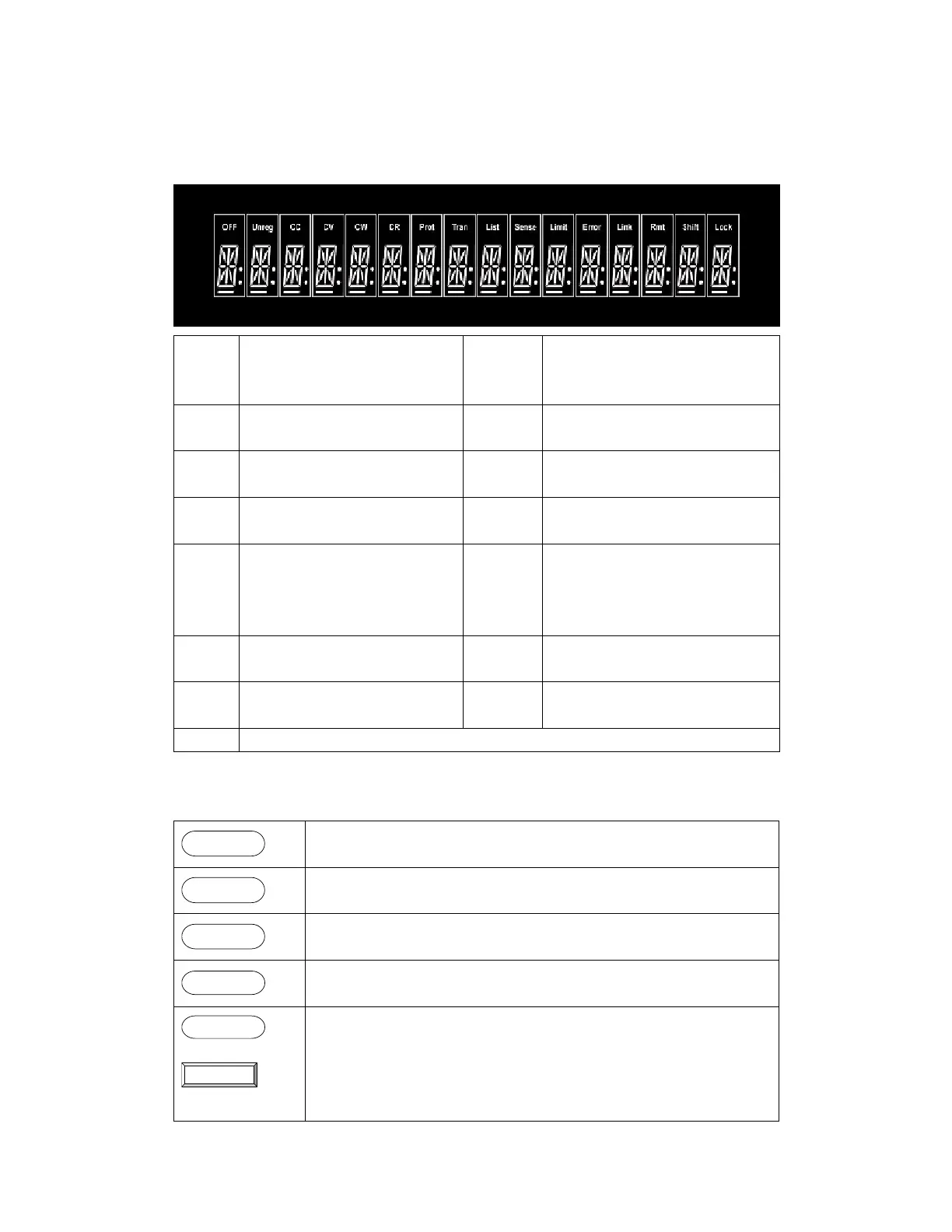

Front Panel Annunciators
OFF
power off
Trigger
Indicates that the electronic load is
waiting an initiate and trigger to
occur.
CC
Constant current (CC) mode.
Sense
Indicates that the electronic load is
in Remote sensing state
CV
Constant voltage (CV) mode.
Error
A errors have occurred
CW
Constant power (CW) mode.
Link
In the communication state
CR
Resistance (CR) mode.
Rmt
Indicates that the electronic load is
in remote state (RS-232). In the
remote state, only the active key is
the Local key.
Tran
The input channel is enabled for
transient operation.
Shift
Indicates that the shift key has been
pressed.
List
List mode is initiated or running.
Lock
keyboard is locked by password
Unreg
The input is unregulated.
Immediate Action Keys
V-set
Choosing CV mode and setting the input of regulation voltage mode
I-set
Choosing CI mode and setting the input of regulation current mode
P-set
Choosing CP mode and setting the input of regulation power mode
R-set
Choosing CR mode and setting the input of regulation resistor mode
Shift
+
A
Switch to A setting value

BK Precision 8500 Series Specifications

General

Series	8500
Voltage Range	0-120V
Display	LCD
Interface	USB, RS232, GPIB (optional)
Modes	CC, CV, CR
Category	Electronic Load
