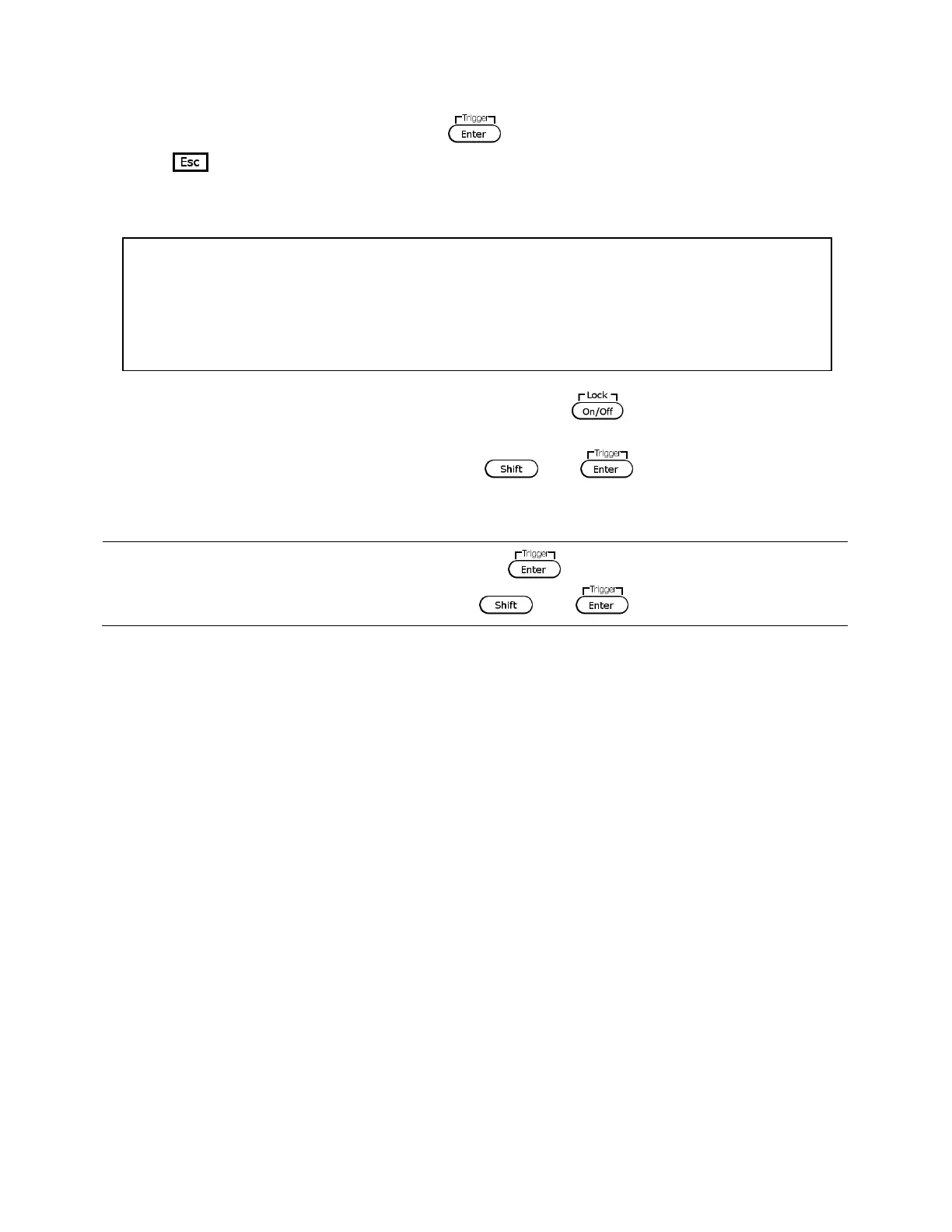

10. Once both parameters are set, press to confirm the changed settings and press
several times to exit the menu. If the Starting profile function was setup properly,
the Trig indicator will be highlighted and Starting profile will be shown on the front
panel, shown below.
11. To enable the Short voltage drop function, press the key, on the front panel. The
proper voltage (12V or 24V) should be metered on the front panel display.
12. To run the Starting profile function press and to trigger the test to run.
13. Repeat step 8 to trigger the function to run as many times as needed or setup the
repeat functionality.
3.7 Configure Voltage Slope
The power supply has the capability of controlling the slope of the output voltage during
changes between voltage settings. Timings can be configured for both the rising and falling
edge between voltage output transitions.
To illustrate this feature and provide configuration instructions, follow the example below.
Suppose you want to simulate the voltage signal below by manually setting the voltage from 5 V
to 10 V over a span of 5 seconds, then manually changing it to 1 V and have it decrease from 10
V to 1 V over a span of 10 seconds. This can be done by configuring the rising and falling edge
timing.
Note: If any automotive testing is running the will blink to indicate so. To stop
any test from running further, press and .
