BK Precision 9200B Series - Rear Panel Overview

6
Up/Down arrow keys
Used to select menu items or increase/decrease output voltage or output
current values.
Esc key
Cancel and return to previous menu.
1.7 Rear Panel Overview

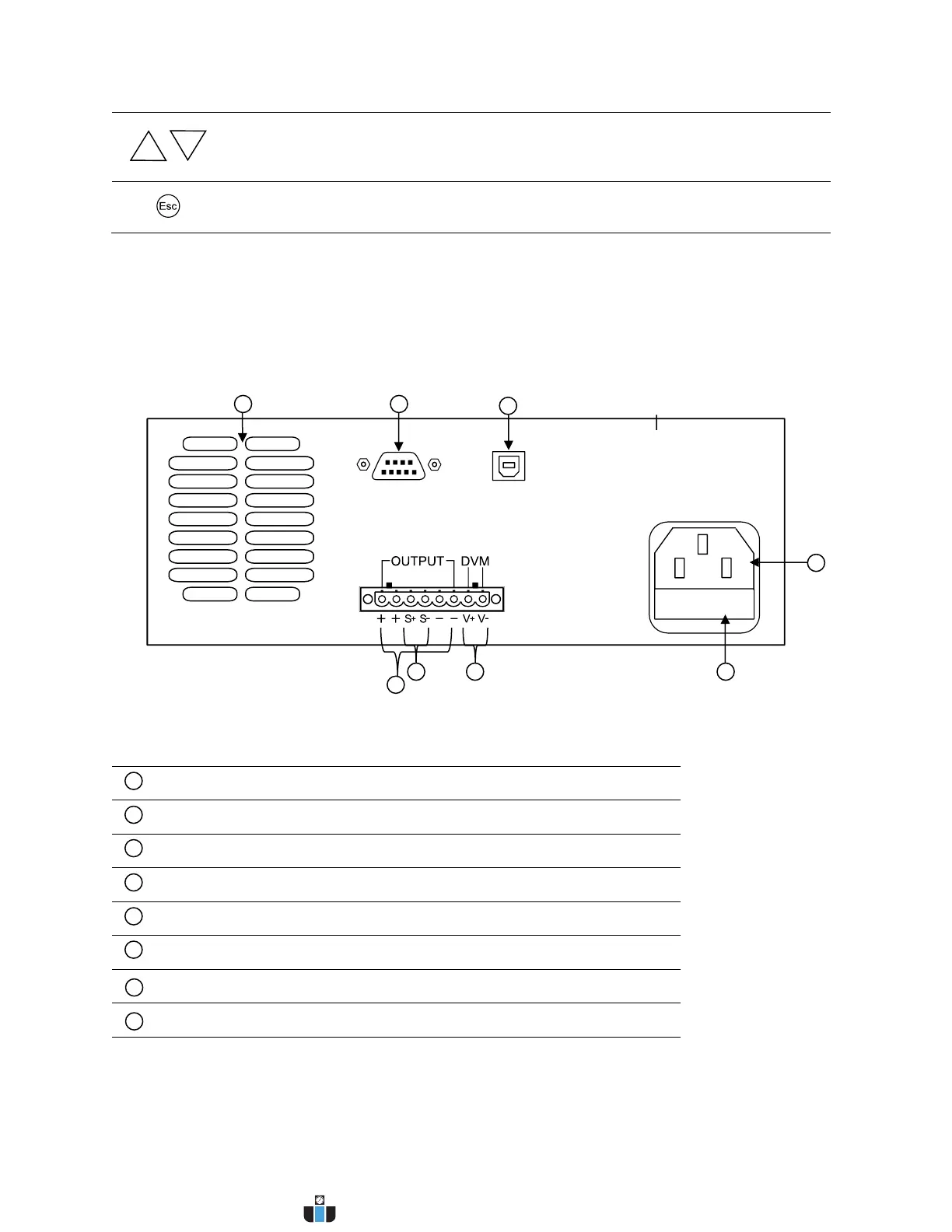

Rear Panel Description
Cooling fan
RS-232 interface
USB interface
AC power input receptacle
Fuse box
DVM input terminal
Remote sense terminal
Output terminal
7
8
1
2
3
4
5
6
7
8
1
2
3
4
5
6
