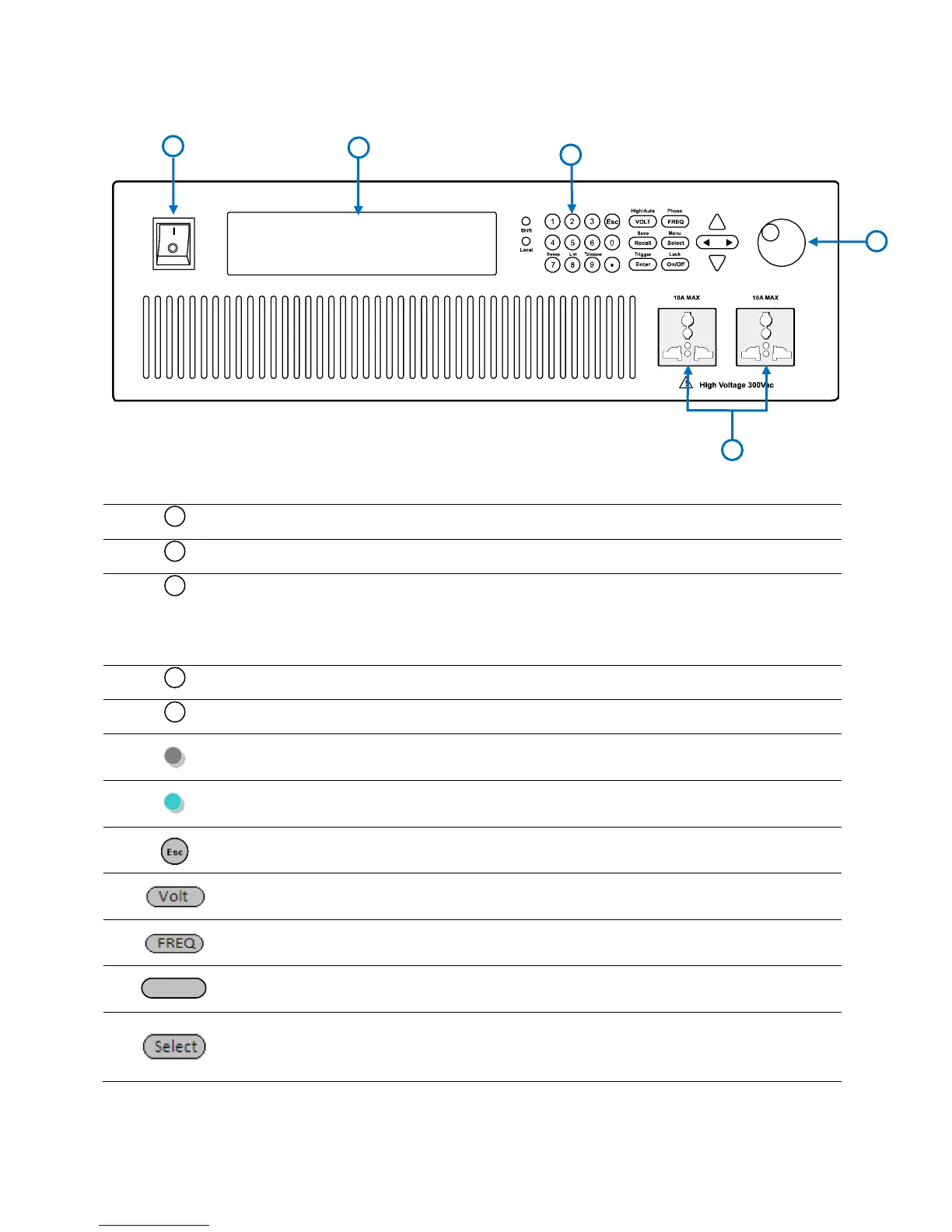

Figure 7 – Front Panel 9803 & 9805
Front Panel Description
VFD display
Power On/Off switch
Numeric keypad
7: Sweep – Configure and enable the sweep function settings
8: List – Configure and enable the list function
9: *Dimmer – Configure the dimmer output simulation settings
AC output socket(s)
Rotary knob
Local button
Set the instrument back to local mode.
Shift button
Enables access to secondary functions of some buttons.
Esc button
Used to exit menu settings.
VOLT / High / Auto button
Set the output voltage or range between high and auto.
FREQ / Phase button
Set the output frequency or phase
Recall
Recall / Save button
Used to save or recall instrument settings.
Select / Menu button
Toggles between output power (in Watts)/power factor (PF) or output power
(in Volt-ampere)/peak current (Apk) display or access the main menu.
