The Contemporary by Blaze King Owners Installation and Operation Manual
Installation Instructions
A remote control device may be available from your local
dealer. Follow the directions supplied with the remote. It is
important to keep the receiver away from extreme heat.
Remote devices may be used with appliance, however Blaze
King does not guarantee the operation of such units or the
effect they may have on the performance of this appliance.
OPTIONAL REMOTE
Note: When installing a remote control or
wall switch use the correct gauge of wire.
See table below.
Wire Size Max. Length
14 GA. 50 FT.
16 GA. 32 FT.
18 GA. 20 FT.
20 GA. 12 FT.
22 GA. 9 FT.
See wiring diagrams for details on valve
connections.
CAUTION: Only the log set supplied by the manufacturer
may be used with this appliance. The log set MUST be
installed as described in this manual.
WARNING: Dangerous operating conditions may occur if
these logs are not positioned in their approved locations. If
logs are broken, do not operate the unit until they are
replaced.

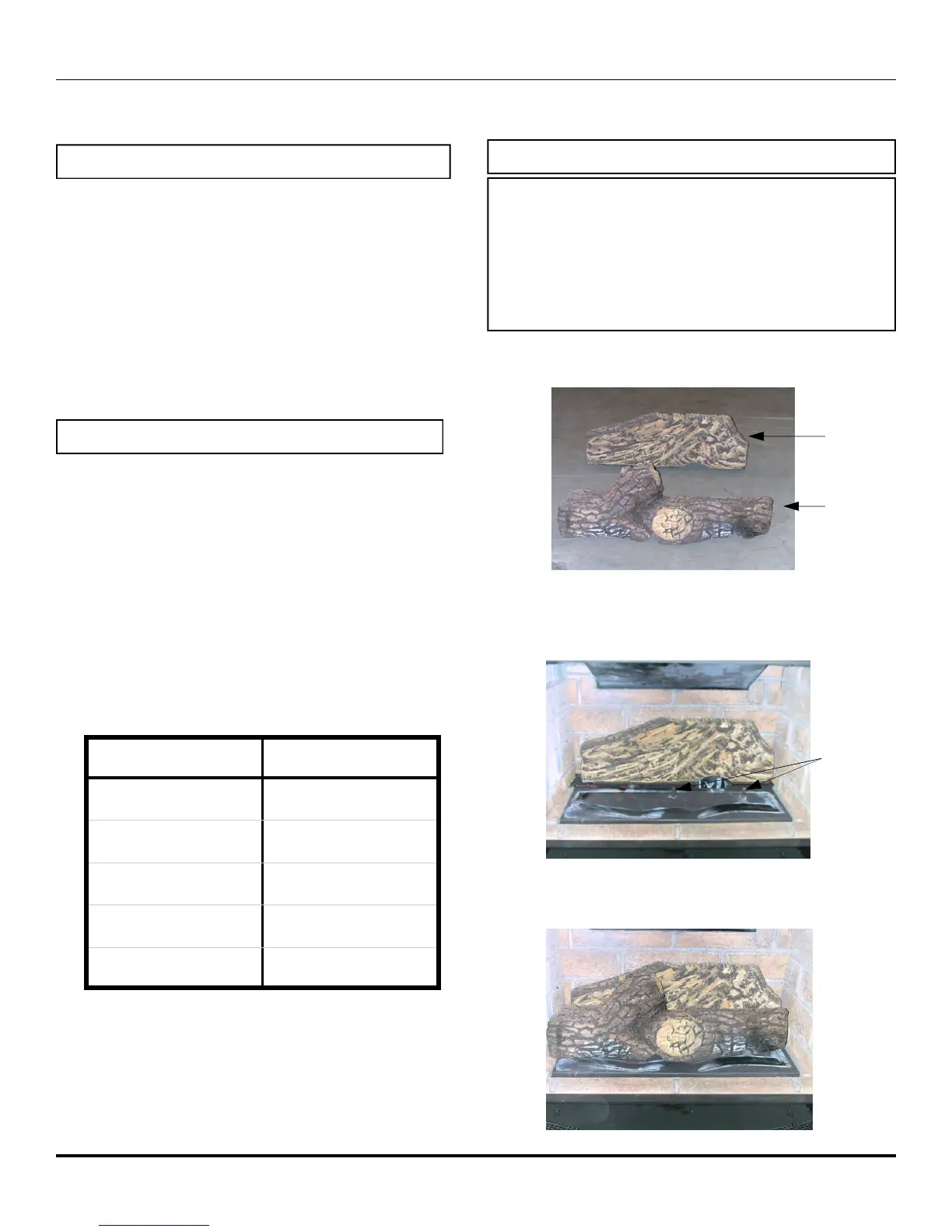

The Blaze King Contemporary comes complete with the
following Logs.
Install the logs in the following order:
1. Place the rear log on the back support shelf. Ensure it is
pushed back against the rear brick panel
2. Locate the front log onto the pins provided on the front log
support.
LOGSET INSTALLATION
THERMOSTAT
WARNING: The gas valve of this appliance
operates on a millivolt system and is not
intended to be connected to any other
power source.
If required, a wall thermostat may be installed. Blaze King
provides a thermostat but any CSA, ULC or UL approved 250
-750 millivolt rated, non-anticipator type, thermostat may be
used.
It is important to use the correct gauge wire when installing
your thermostat.
WARNING
Electrical Grounding Instructions
This appliance is equipped with a three prong (grounding)
plug for your protection against shock hazard and should be
plugged directly into a properly grounded three prong
receptacle. Do not cut or remove the grounding prong from
this plug.
Back Log
Front Log
Front Log
Pins
