The Contemporary by Blaze King Owners Installation and Operation Manual
Mobile home installation
Two holes are provided in the pedestal base of
the unit to allow for anchoring down the
appliance. To access the mounts simply remove
the pedestal back panel which houses the fan.

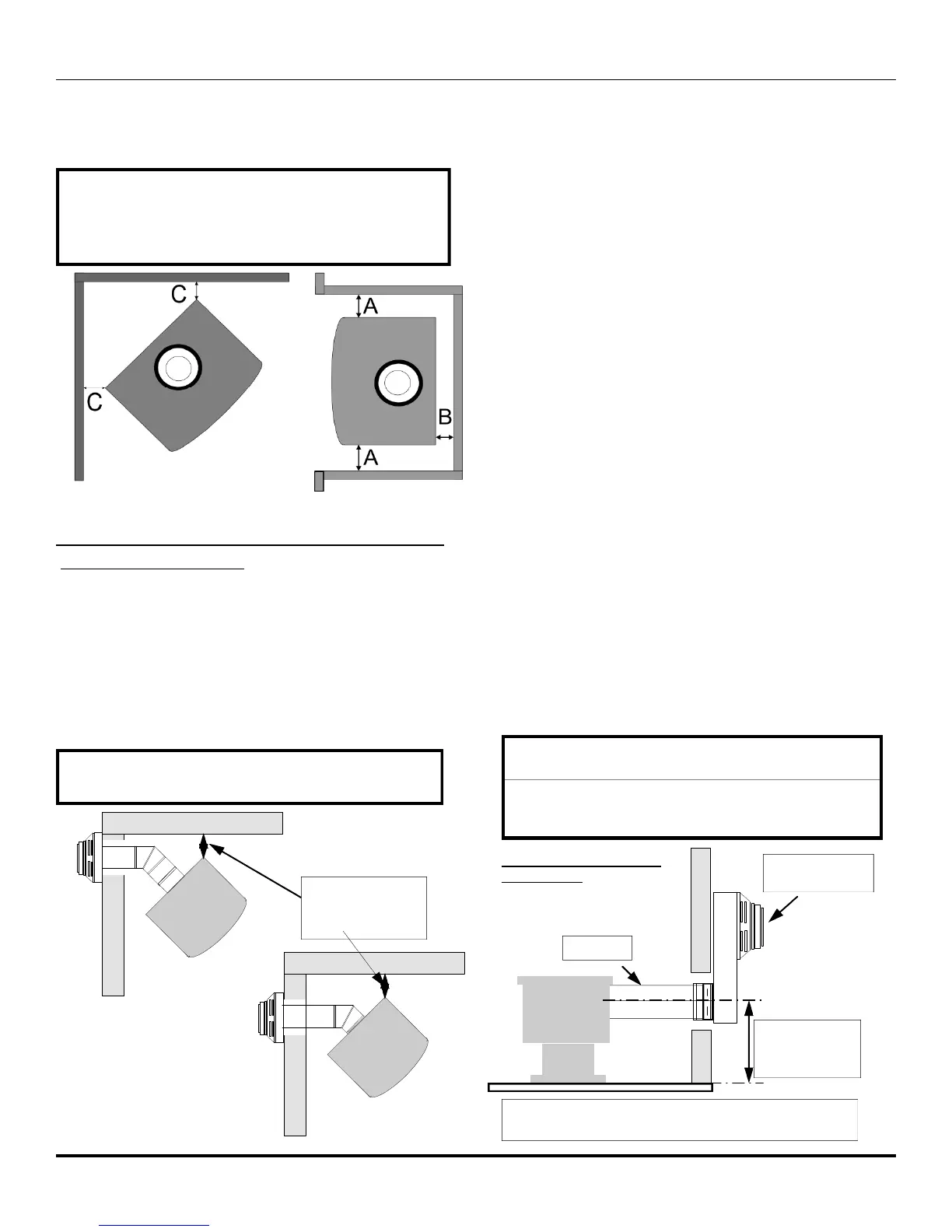

CLEARANCES TO COMBUSTIBLES
Minimum clearances listed above must be
maintained. Also ensure that you have left
clearance for servicing and that that the proposed
termination location is correct.
LOCATING YOUR STOVE
IMPORTANT: This appliance's venting system is
room sealed, which means that there should be no
provision to allow room air to be used in the
combustion process.
VENTING
Note: Only venting systems listed in this
manual may be used with the Contemporary.
The Simpson Duravent GS
®
vent system is
listed for use with the Contemporary, except
for the snorkel. See the next page for a full
parts list.
PLANNING YOUR VENT INSTALLATION
This type of direct vent system may terminate in
one of two ways: Vertical termination using a vent
cap, or Horizontally using a wall termination. There
are limitations to the vertical and/or horizontal
lengths. When calculating the length of the vent
pipe from the outlet of the appliance to termination,
allow for ceiling thickness, vertical rise in the attic
or second story and sufficient vertical height above
the roof.
Fire stops are required at each floor level the vent
passes through.
When carrying out vertical installations that require
45° elbows add additional pipe to allow for the
offset.
Installation Instructions
MODEL CONTEMPORARY
A Side Wall to unit side 11” (275mm)
B Back wall to unit back 4” (100mm)
C Corner to side wall 2” (50mm)
REAR VENT—SNORKEL TERMINATION
MINIMUM VERTICAL RISE 36” Using American Metal snorkel
(part #4D36S)
MAXIMUM HORIZONTAL RUN 3 ft When using 36” Snorkel .
One 45° elbow may be used for
corner installs.
Installation showing 36” section
and 36” Snorkel
36” section.
36” Snorkel. American
Metal #4D36S
C/L
Cut 10” square hole.
Measure from floor
finish to center—24”
Follow venting manufacturer ‘s instructions and adhere to all
local codes, authorities and standards for your installation.
2” minimum. Install to
suit. Use adjustable
section if required
Corner install showing 45° elbow either straight off back of
unit or in mid section with snorkel kit.
