Blaze King 6003 - Gas Conversion Instructions

OM6003.PUB Page 33 DATE PRINTED: 4/7/11
© Blaze King Industries Canada Ltd June 2006 Version 1.07SIT
The Contemporary by Blaze King Owners Installation and Operation Manual
L.P. GAS POSITION -
Ø1/16 HOLE & RED
COLOR CODE VISIBLE

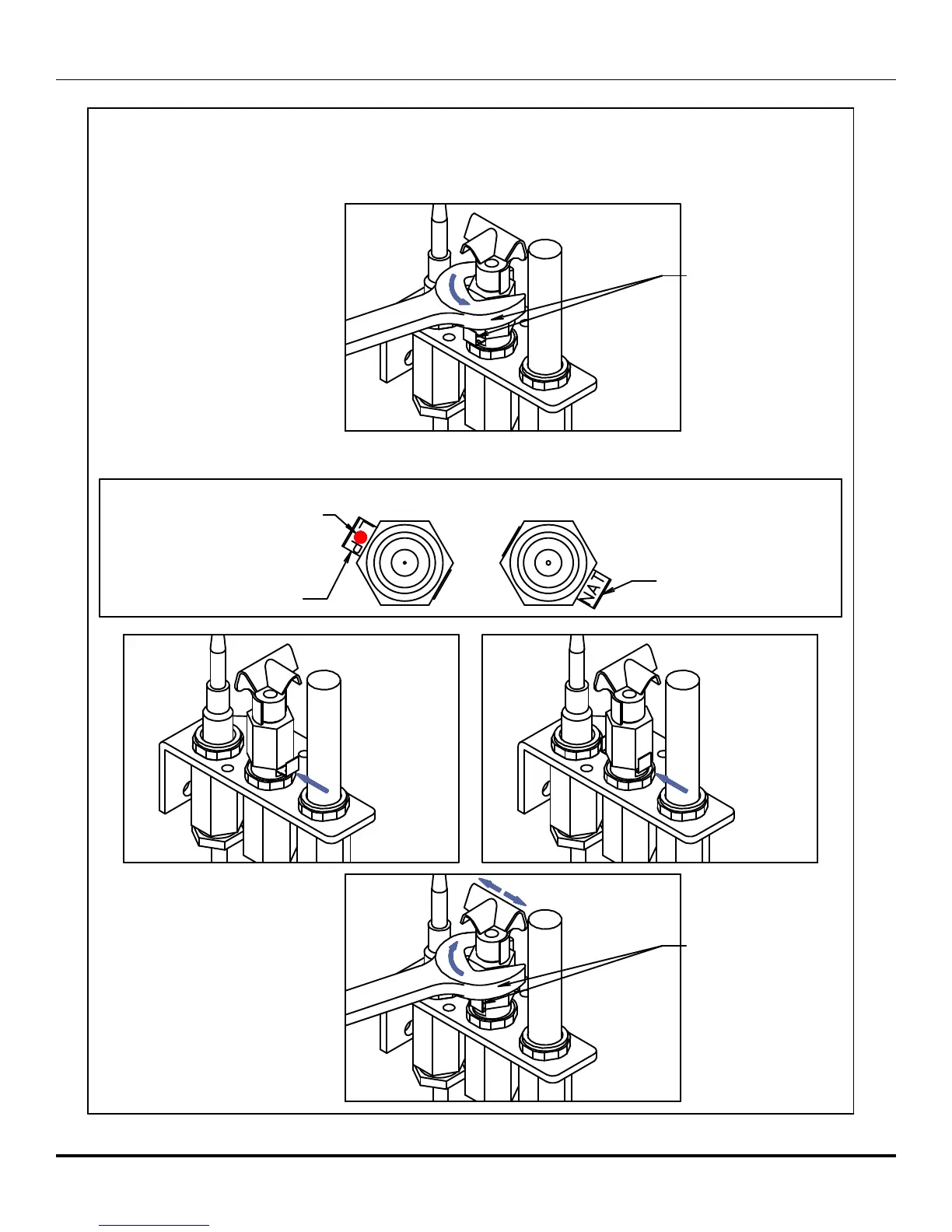

GAS CONVERSION INSTRUCTIONS FOR CONVERTIBLE
ORIFICE IN END MOUNT BRACKET PILOT ("C" SERIES)
NAT
VIEWING DOWN ON PILOT
NATURAL GAS POSITION -
NO Ø1/16 HOLE VISIBLE
LP
Ø0.120in
2) PUSH ORIFICE STRIP TAB
ALL THE WAY AGAINST THE
HEX FITTING AS SHOWN IN
FIGURE B1 & B2.
3) RE-TIGHTEN THE PILOT
TARGET HEX FITTING UNTIL
THE PILOT TARGET ALIGNS
WITH THE THERMOCOUPLE &
THERMOPILE AS SHOWN IN
FIGURE C. USE CAUTION TO
AVOID BENDING ORIFICE
STRIP BY IMPROPER PLACE-
MENT OF END WRENCH.
4) INSTALLATION IS
COMPLETE.
AVOID CONTACTING
ORIFICE STRIP
WITH END WRENCH.
FAILURE TO DO
THIS CAN CAUSE
DISTORTION OF THE
ORIFICE STRIP
WHEN LOOSENING
OR TIGHTENING.
1) LOOSEN (CCW ROTATION)
THE PILOT TARGET HEX
FITTING 1/4 TURN WITH A
7/16" END WRENCH AS SHOWN
IN FIGURE A. USE CAUTION
TO AVOID BENDING ORIFICE
STRIP BY IMPROPER
PLACEMENT OF END WRENCH.
NOTE:ORIFICE STRIP MAY BE RANDOMLY LOCATED ON ANY SIDE OF HEX FITTING
FIGURE B2
(AFTER)
FIGURE A
FIGURE B1
(BEFORE)
FIGURE C
NOTE:IT IS NOT NECESSARY TO REMOVE THE PILOT TUBE FOR GAS CONVERSION
AVOID CONTACTING
ORIFICE STRIP
WITH END WRENCH.
FAILURE TO DO
THIS CAN CAUSE
DISTORTION OF THE
ORIFICE STRIP
WHEN LOOSENING
OR TIGHTENING.
