PAGE 10
OM-8003 & 8004
Date Printed: Tuesday, February 08, 2005
Revision Date: 06-12-03

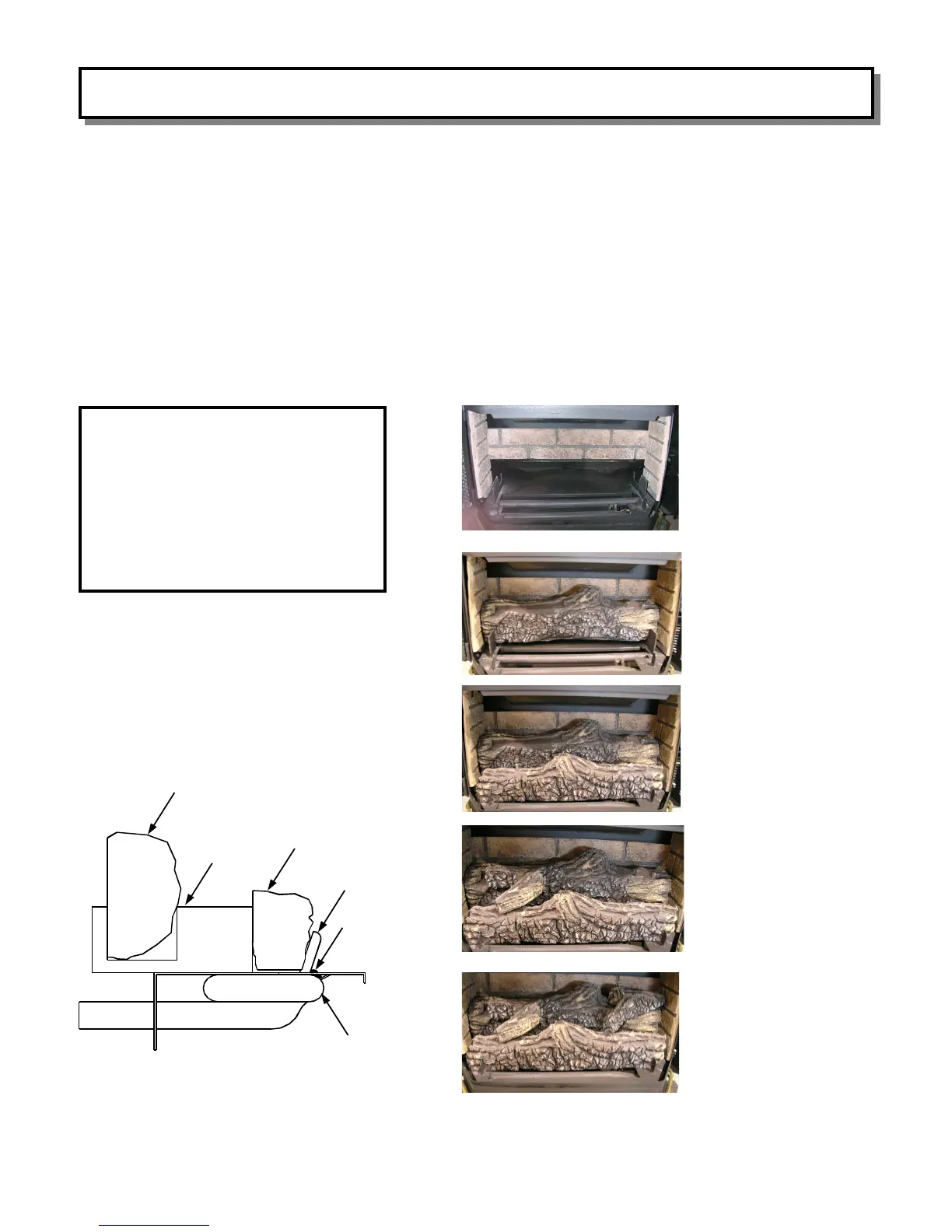

OAK LOG & BRICK PANEL INSTALLATION
EMBER PLACEMENT: Place embers
directly over the first set of small holes in
the front of the burner tray. Embers
should be evenly spread across this first
row of small holes.
A. BACK LOG: This larger log should be placed in the back of the stove close to the far back wall. The flat
side of (Log A) should rest flush against the flat part of the back bracket with the rough textured side of the log
pointing towards you. The curved part (of Log A) should be facing upwards.
B. FRONT LOG: This smaller log fits in the right and left side brackets closest to you. The flat portion (of Log
B) should be placed flush against the back of the bracket. After setting this log in the brackets, the rough textured
side of the log should be pointing outward, facing you.
C. LEFT TWIG: This Y shaped log (C) sits on the left side of the front and back logs (A and B). This log (C)
should be placed on the grooves so that the base of the Y is sitting on the groove in the front log and the right leg
of the Y rests on the peg on the back log.
D. RIGHT TWIG: On the right side of Log B. there is a groove. Invert the twig so that the legs are pointing
down. Place the left leg of the twig into the groove of Log B and place top portion of twig onto pin. (Note: hole
should already be present in upper portion of twig)
Please note that brick panels are optional.
Large Log
Log Holder
Small Log
Embers
Burner Tube
Log Holder
WARNING: DANGEROUS
OPERATING CONDITIONS MAY
OCCUR IF THESE LOGS ARE NOT
POSITIONED IN THEIR PROPER
LOCATIONS. READ THE LOG
PLACEMENT INSTRUCTIONS
ABOVE CAREFULLY AND REFER
TO THE DIAGRAMS TO THE RIGHT.
Slide the rear brick panel
in then insert both side
panels. Turn brick panel
retainer clips (at top of
each side panel) down to
hold brick panels in
place.
Log A
Logs A & B
Logs A,B & C
Logs A, B, C & D
