PAGE 11
OM-8003 & 8004
Date Printed: Tuesday, February 08, 2005
Revision Date: 06-12-03

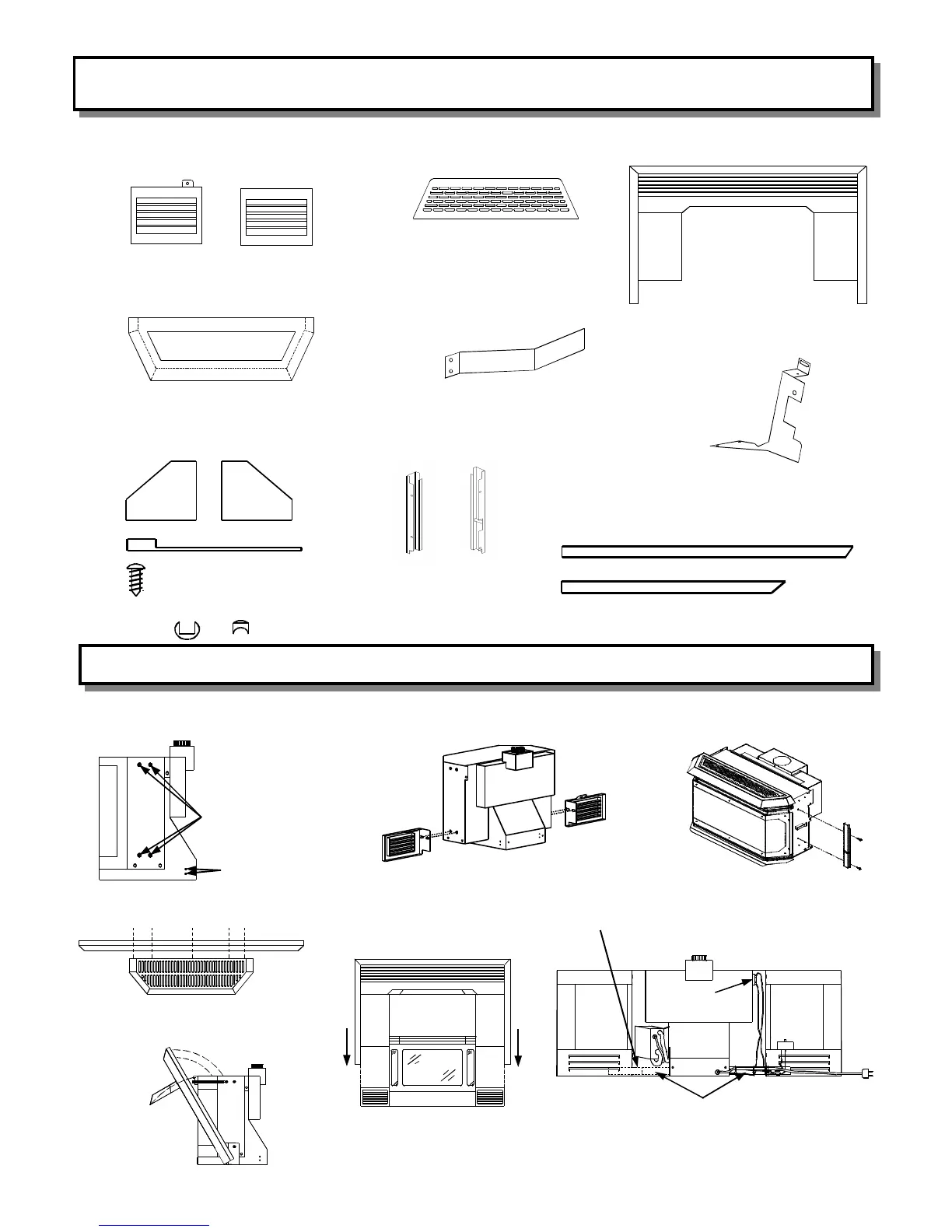

8003 INSERT KIT CONTENTS
WIRE SUPPORT BRACKET
FIG. 29
OUTER TOP - FIG. 28
MAIN SHROUD - FIG. 27 TOP TRIM LOWER LEFT AND RIGHT SHROUDS
FIG. 26
TRIM PACK - FIG. 31
Long Trim
Short Trim
X 10
X 5
FASTENERS - FIG. 30
Tie Wrap X6
#2 Square Drive Screw
Strain Relief
Left & Right Upper Shroud Bracket
L
R
VALVE BRACKET
LEFT & RIGHT SIDE
COVER PLATES
8003 INSERT ASSEMBLY INSTRUCTIONS
INSTALL MAIN SHROUD
ASSEMBLY FIG. 37
ATTACH LOWER LEFT AND RIGHT
SHROUDS FIG. 33
ATTACH OUTER TOP TO
MAIN SHROUD FIG. 35
ATTACH LEFT & RIGHT
COVER PLATES
SCREW AND HOLE
IDENTIFICATION FIG. 32
4 Screws
Wire Support Bracket
INSTALL WIRE SUPPORT BRACKETS
AND ROUTE WIRES FIG. 34
Snap Disc
Wire Support Brackets
POSITION MAIN SHROUD
FIG. 36
To Next Page
