PAGE 22
OM-8003 & 8004
Date Printed: Tuesday, February 08, 2005
Revision Date: 06-12-03
IT IS IMPORTANT TO ADJUST THE FLAME SO IT HAS THE PROPER SHAPE AND COLOR WITHOUT
SOOTING OF THE GLASS OR LOGS:
1. The primary air shutter should be set approximately: 1/2 open for Natural Gas
Full open for L P Gas
2. Adjust the open shutter until the flame turns blue, then close the shutter until a soft red flame is obtained. The
shutter is spring loaded so it will stay in that position.
3. If this makes soot on either the logs or the glass, the setting must be opened gradually until the glass and logs
stay clean.
AIR SHUTTER ROD ADJUSTMENT
To adjust, open the viewing door and grasp small rod located in the back right of the firebox and with pliers lift up
and or pull down to adjust the flame pattern as needed.
NOTE: IF THE BURNER IS REMOVED, MAKE SURE THAT THE SPRING IS IN PLACE ON THE MAIN BURNER
ORIFICE AND THAT THE MAIN BURNER ORIFICE SEATS ITSELF INSIDE THE BURNER AIR SHUTTER.
The pilot flame must envelope approximately 1/2 of the millivolt generator. It must burn clean. All parts must be lit.
If there are any problems, contact your serviceman.

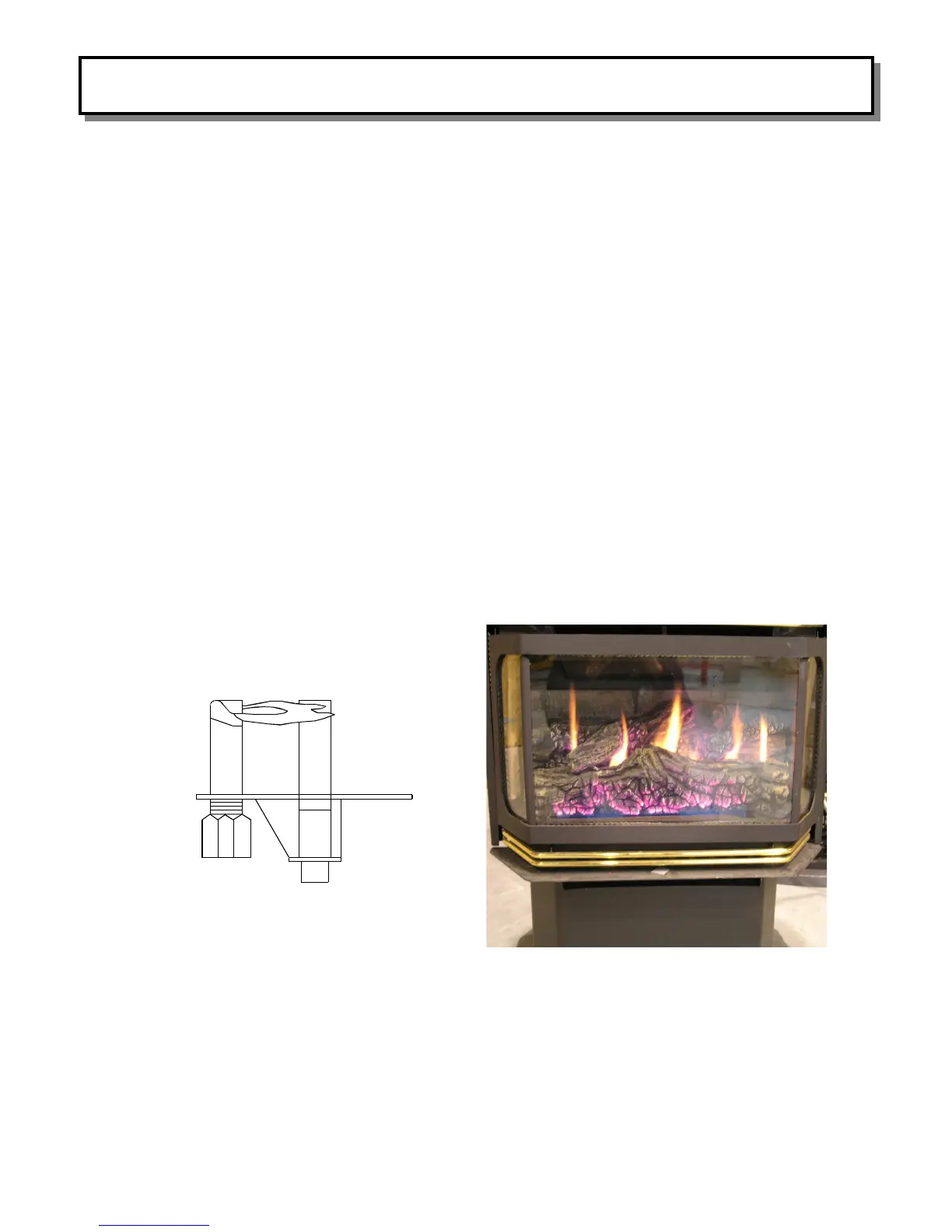

Periodic checking of the flame pattern is necessary. The flame should look approximately like the picture. The
base of the flame must not rise above the burner plate.
8004 GAS FLAME ADJUSTMENT
