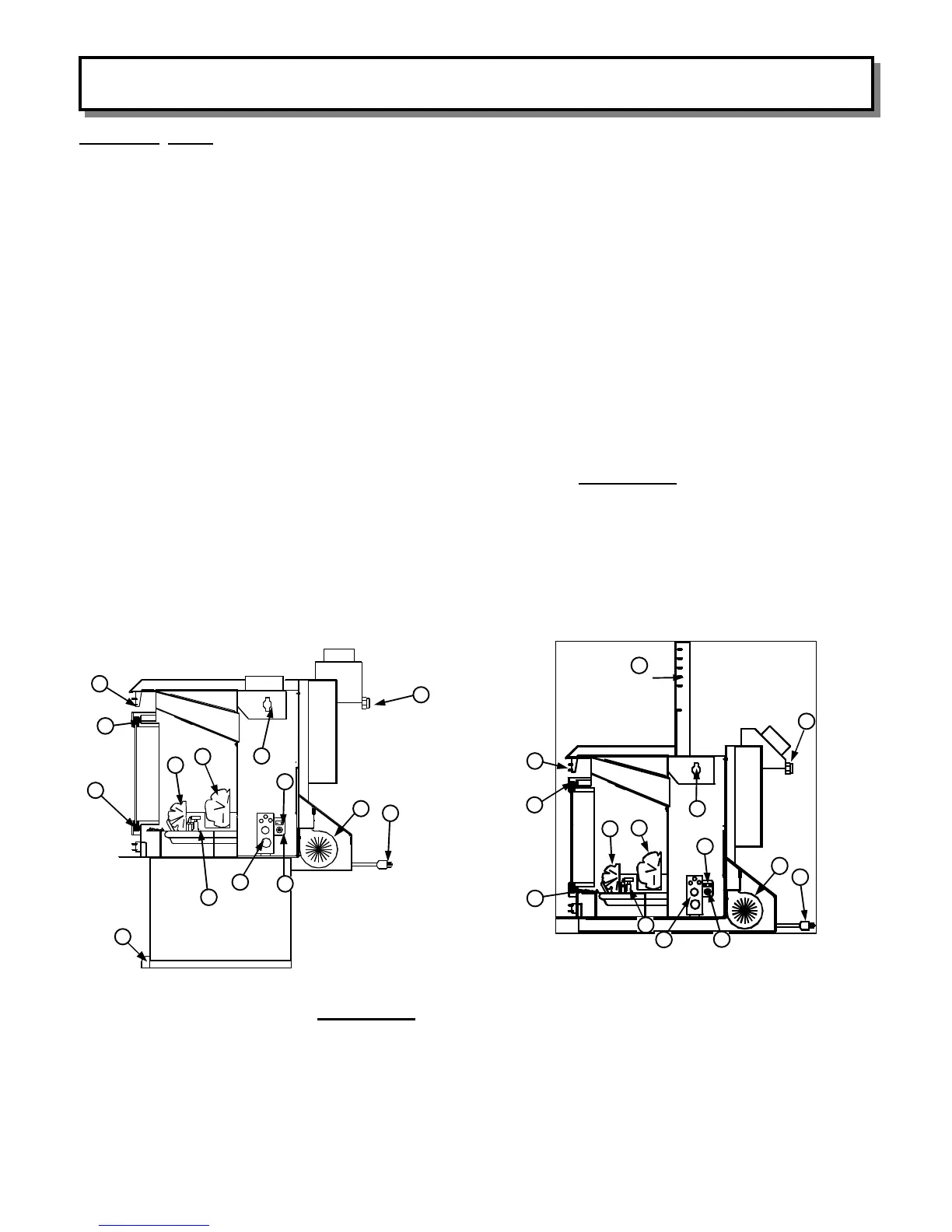

8003/8004 REPLACEMENT PARTS LIST
CAUTIONS
1. Do not use substitute materials.
2. Do not abuse the glass door, such as striking it or slamming it shut.
3. Do not operate the stove with a broken glass door.
4. Do not use abrasive cleaners to clean the glass.
If you have any questions, call your local Blaze King Dealer or
contact Blaze King at:
Blaze King Industries
146 A Street
Walla Walla, WA.
99362
Ph# 1-509-522-2730
Valley Comfort Systems Inc.
1290 Commercial Way
Penticton, BC
V2A 3H5
Ph# 1-250-493-7444
15
2
11
7
1
4
12
13
10
5
6
3
14
9
13
12
15
6
5
8
PART NAME: PART #
1. Robertshaw Valve c/w Nat. Reg 0718A
Robertshaw Valve c/w LPG Reg 0718P
Honeywell Valve c/w Nat Reg. 0720
2. Fan 0719B
3. Robertshaw Pilot Hood c/w Nat.Orifice & Electrode 0721VC
Honeywell Pilot Hood c/w Nat.Orifice & Electrode Z0721H
3a. Electrode c/w 24” wire 0738B
4. On/Off Switch 0725
5&6 Log Set 0815
7. Robertshaw Push Button Igniter 0737
Honeywell Push Button Igniter 0714I
8. Shroud Trim 8004 (Long) 0768
8a. Shroud Trim 8004 (Short) 0767
9. Fiber Embers 0745
10. 80 inch Door Rope 0185
11. Power Cord Z0158
12. F200 Snap Disc (Fan control) 1144B
13. Front Decor - Gold plate. Z9032G
14. Wood Base - 8004 Stove only 0788
15. L250 Snap Disc (Spill safety switch) 1146AA
NOT PICTURED
16. Main Burner Orifice
(state orifice size, See page 22)
17. 7/16 I.D. x 1/2 Spring 0723
18. Door Latch 0733
19. Wall Thermostat 0736
20. Rheostat (Fan speed contorl) Z0136A
21. Strain Relief 0371
22. Thermopile Generator 0721A
23. LPG Regulator & Orifices Kits
Robertshaw LPG Kit 0-2000 ft Z0736
Robertshaw LPG Kit 2000-4500 ft Z0736H
Robertshaw Nat Gas Valve Regulator 0747
Robertshaw LPG Gas Valve Regulator 0734
Honeywell LPG Regulator Screw (red) 0193
Honeywell Natural Regulator Screw (blue) 0192
Honeywell LPG Conversion Kit Low Altitude Z0769
Honeywell LPG Conversion Kit High Altitude Z0769H
ORIFICES ONLY
Honeywell LPG Orifice 0714P
Honeywell Nat Gas Orifice 0714N
Robertshaw LPG Orifice 0717P
Robertshaw Nat Gas Orifice 0717N
24. Pilot Line - Flexible 1/4 0839
25. Main Gas Line - Flexible 0838B
